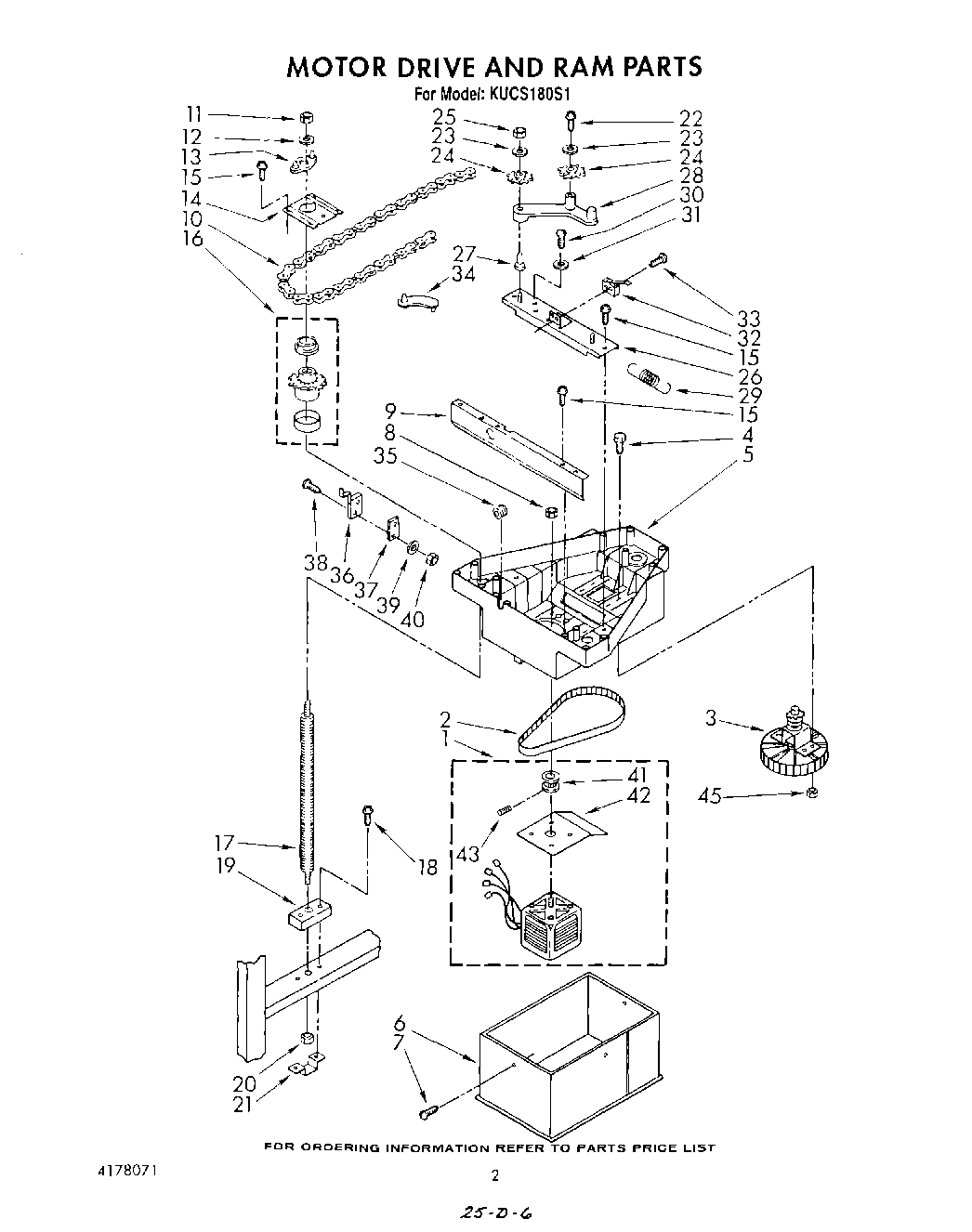

KUCS180S1 02 – MOTOR DRIVE AND RAM , LIT/OPTIONAL

Products

Position	Product
	Diagram, Wiring
	Guide, Use and Care
	Instructions, Installation (Built-In Application)
	List, Repair Parts
	Instructions, Installation (Front Panel)
1	Motor, Drive
2	Belt, Drive
3	Sprocket, Driven
4	Screw, 1/4 20 x 2“ (4)
5	Ram, Top
6	Ram, Bottom
7	Screw, 10-24 x 3/8
9	Brace, Top
10	Chain, Drive
11	Nut, 5/16-18 (3)
12	WP3388703 Whirlpool Washer
13	Stop, Ram Upper
14	Plate, Powerscrew Cover (Rear)
14	Plate, Powerscrew Cover (Left Side)
14	Plate, Powerscrew Cover (Right Side)
15	Screw, 10-24 x 1/2
16	Sprocket, Powerscrew (3)
17	Powerscrew (3)
18	Screw, 1/4-20 x 7/16
19	Stop, Ram Lower (3)
20	Nut (3)
21	Retainer, Nut (3)
22	Screw
23	W11089212 Whirlpool Washer
24	Sprocket, Idler (4)
25	WP776338 Whirlpool Compactor Nut
26	Plate, Idler
27	Bushing (2)
28	Arm, Idler (Left Side)
28	Arm, Idler (Right Side)
29	Spring, Chain Tension
30	Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Switch, Directional
33	Screw 6-32 X 7/8
34	Retainer, Wire
35	Grommet, Wiring
36	Switch, Limit
37	Baffle
38	Screw, 4-40 x 5/8
39	Washer, Lock
40	Nut, 6-32 (4)
41	Gear, Drive
42	Deflector, Debris
43	Pin, Gear
45	Support, Backguard (Right Hand)
