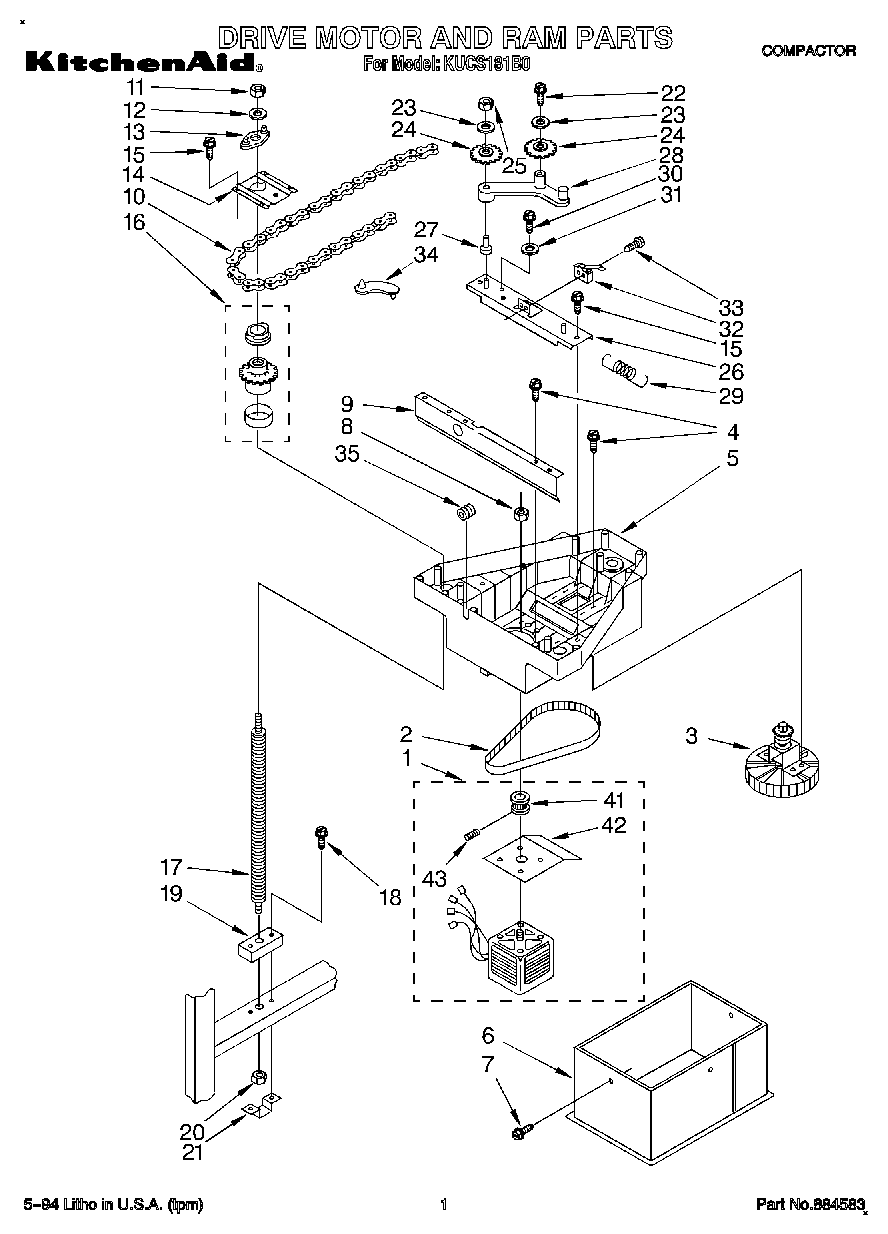

KUCS181B0 01 – DRIVE MOTOR AND RAM, LITERATURE

Products

Position	Product
	Diagram, Wiring
	Guide, Use and Care
	Instructions, Installation (Front Panel)
	Instructions, Installation (Built-In Application)
1	Motor, Drive
2	Belt, Drive
3	Sprocket, Driven
4	Screw, 1/4 20 x 2“ (4)
5	Ram, Top
6	Ram, Bottom
8	WP776338 Whirlpool Compactor Nut
9	Brace, Top
10	Chain, Drive
11	Nut, 5/16-18 (3)
12	WP3388703 Whirlpool Washer
13	Stop, Ram Upper
14	Plate, Powerscrew Cover (Rear)
14	Plate, Powerscrew Cover (Right Side)
14	Plate, Powerscrew Cover (Left Side)
15	Screw, 10-24 x 1/2
16	Sprocket, Powerscrew (3)
17	Powerscrew (3)
18	Screw, 1/4-20 x 7/16
19	Stop, Ram Lower (3)
20	Nut (3)
21	Retainer, Nut (3)
22	Screw
23	W11089212 Whirlpool Washer
24	Sprocket, Idler (4)
25	Nut, 10-32 (2)
26	Plate, Idler
27	Bushing (2)
28	Arm, Idler (Right Side)
28	Arm, Idler (Left Side)
29	Spring, Chain Tension
30	Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Switch, Directional
33	Screw 6-32 X 7/8
34	Retainer, Wire
35	Grommet, Motor Cover
41	Gear, Drive
42	Deflector, Debris
43	Pin, Gear
