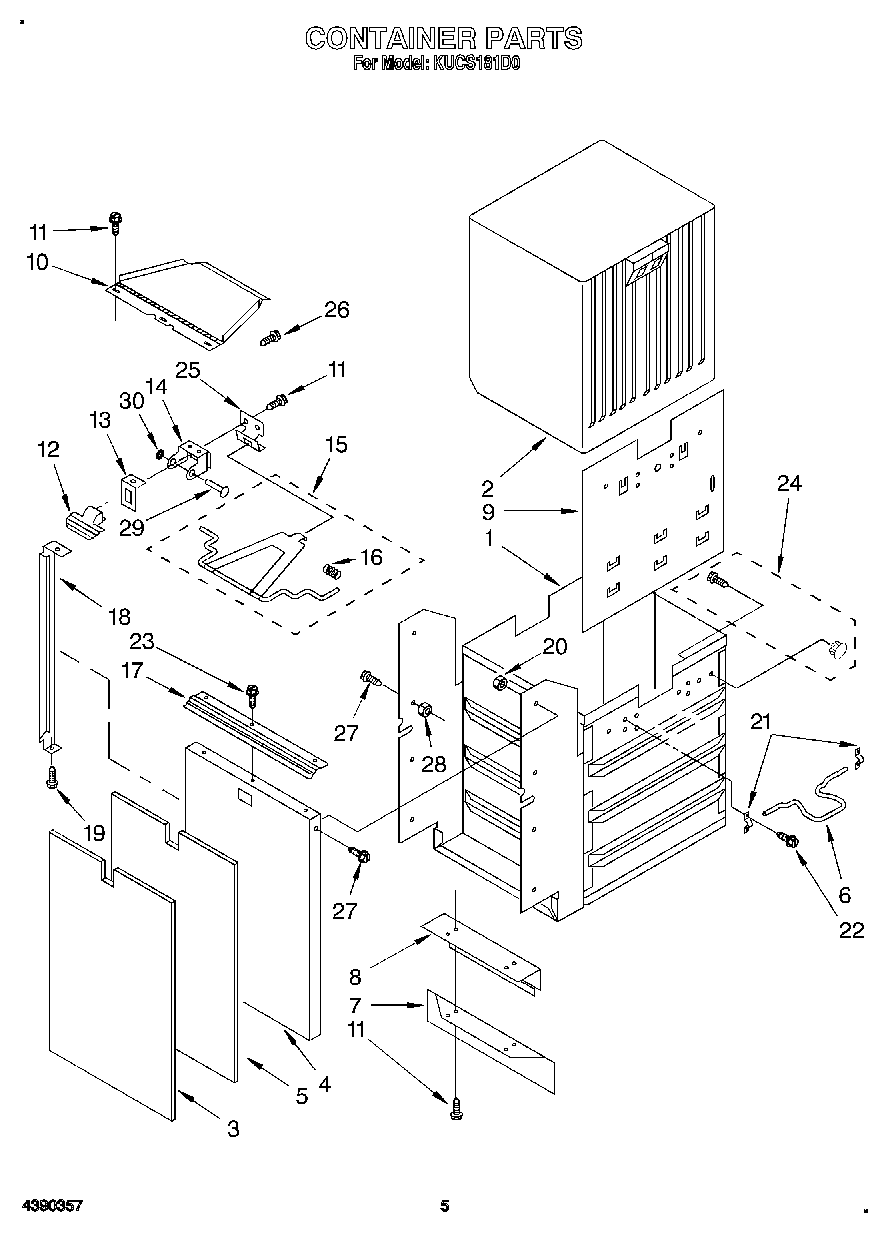

KUCS181D0 03 – CONTAINER

Products

Position	Product
1	Container (Includes Items Nos.6, 21 & 22)
2	Liner, Container
3	Panel, Container (White & Black)
4	Front, Container
5	Filler, Panel
6	Handle
7	Plate, Toe
8	Bracket, Toe Plate
9	Plate, Releif
10	Cover, Storage
11	WP4159387 Whirlpool Compactor Screw
12	Handle, Pull
13	Bezel, Handle
14	Bracket, Handle
15	Latch Assembly
16	Spring, Latch (Right Side)
16	Spring, Latch (Left Side)
17	Handle, Container
18	Trim, Front (Right Side)
18	Trim, Front (Left Side)
18	Trim, Front (Bottom)
19	Screw, 6 X 1/4
21	Clip, Handle (2)
22	Screw, 10-32 x 1/4
23	Screw, No.10 x 3/8 (3)
24	RETAINER, BAG
25	Hinge, Handle
26	Screw, 10-24 x 3/8
27	Screw, 10-32 x 1/2
28	WP776338 Whirlpool Compactor Nut
29	Pin
30	Nut, 10-32 (2)
