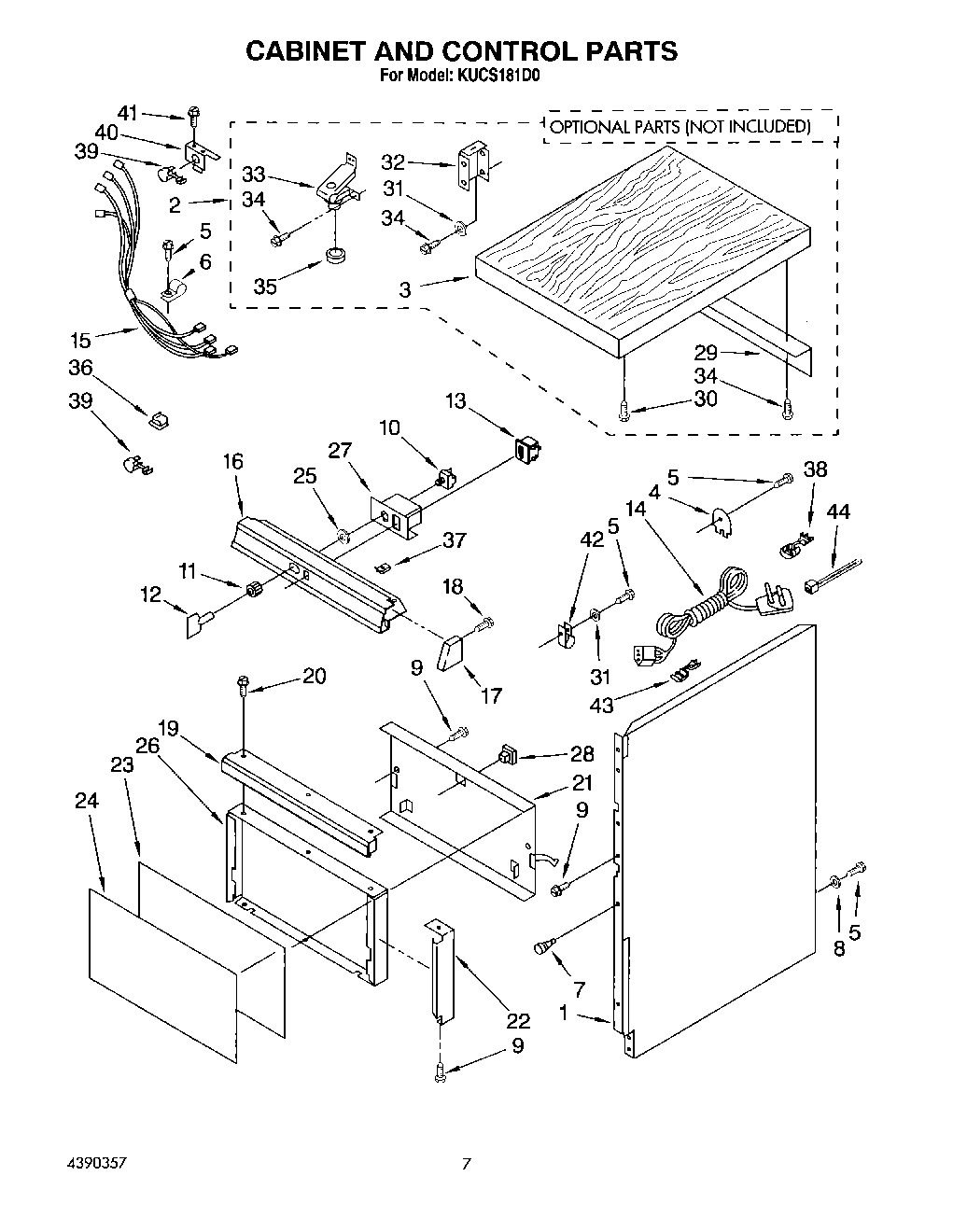

KUCS181D0 04 – CABINET AND CONTROL

Products

Position	Product
1	Panel, Cabinet (Right Side)
1	Panel, Cabinet (Back)
1	Panel, Cabinet (Left Side)
2	Freestanding, Conversion Kit
3	Top, Wood
4	Plate, Power Cord
6	Clamp, Wire
7	Bumper, Door (2)
9	WP4159387 Whirlpool Compactor Screw
10	Switch, Rotary
11	Nut, Switch
12	WP241877 Whirlpool Screw
13	Switch, Rocker
14	Cord, Power
15	Harness, Wiring (Power Distribution)
15	Harness, Wiring (Main Harness)
15	Harness, Wiring (Rocker Switch To Fan Motor)
15	Harness, Wiring (Motor Drive To Directional Switch)
15	Harness, Wiring (Ram Switch To Key)
15	Harness, Wiring (Interlock To Bypass)
16	Escutcheon, Control
17	End Cap (Right Side)
17	End Cap (Left Side)
18	Screw, 4 x 1/4 (4)
19	Handle, Container
20	Screw, (2)
21	Panel, Litter Bin Rear
22	Trim, Front (Bottom)
22	Trim, Litter Bin (Right Side)
22	Trim, Litter Bin (Left Side)
23	Filler, Bin Panel
24	Insert, Door (White & Black)
25	Washer
26	Top, Bin
27	Barrier, Switch
28	279570 Whirlpool Dryer Door Latch Kit
29	Bracket, Wood top
30	681615 Whirlpool Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Block, Leveling Leg (Left Side)
32	Block, Leveling Leg (Right Side)
33	Bracket, Foot (4)
34	Screw
35	Clip, Foot (4)
36	Clip, C
37	WPL 4162903
38	WPL 4159026
39	WPL 4159031
40	WPL 4178076
41	Screw, 10-24 x 1/2
42	WPL 4178083
43	Bushing, Cord
44	WPL 4178062
44	WPW10339879 Whirlpool Wire Tie
44	Latch Mounting Plate
