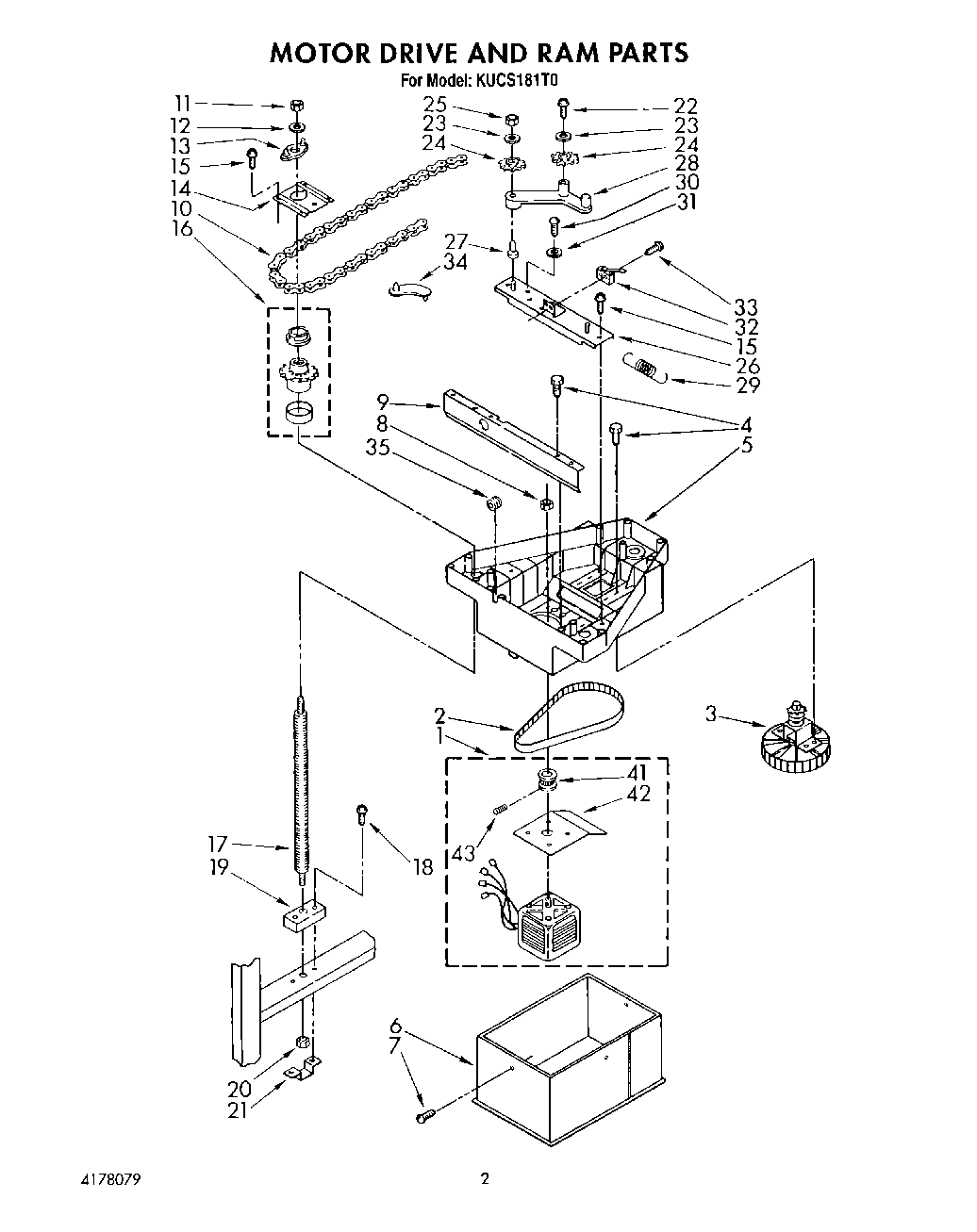

KUCS181T0 02 – MOTOR DRIVE AND RAM, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Diagram, Wiring
	Instructions, Installation (Built-In Application)
	Instructions, Installation (Front Panel)
	Guide, Use and Care
1	Motor, Drive
2	Belt, Drive
3	Sprocket, Driven
4	Screw, 1/4 20 x 2“ (4)
5	Ram, Top
6	Ram, Bottom
7	Screw, 10-24 x 3/8
9	Brace, Top
10	Chain, Drive
11	Nut, 5/16-18 (3)
12	WP3388703 Whirlpool Washer
13	Stop, Ram Upper
14	Plate, Powerscrew Cover (Rear)
14	Plate, Powerscrew Cover (Right Side)
14	Plate, Powerscrew Cover (Left Side)
15	Screw, 10-24 x 1/2
16	Sprocket, Powerscrew (3)
17	Powerscrew (3)
18	Screw, 1/4-20 x 7/16
19	Stop, Ram Lower (3)
20	Nut (3)
21	Retainer, Nut (3)
22	Screw
23	W11089212 Whirlpool Washer
24	Sprocket, Idler (4)
25	WP776338 Whirlpool Compactor Nut
26	Plate, Idler
27	Bushing (2)
28	Arm, Idler (Right Side)
28	Arm, Idler (Left Side)
29	Spring, Chain Tension
30	Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Switch, Directional
33	Screw 6-32 X 7/8
34	Retainer, Wire
35	Grommet, Wiring
41	Gear, Drive
42	Deflector, Debris
43	Pin, Gear
