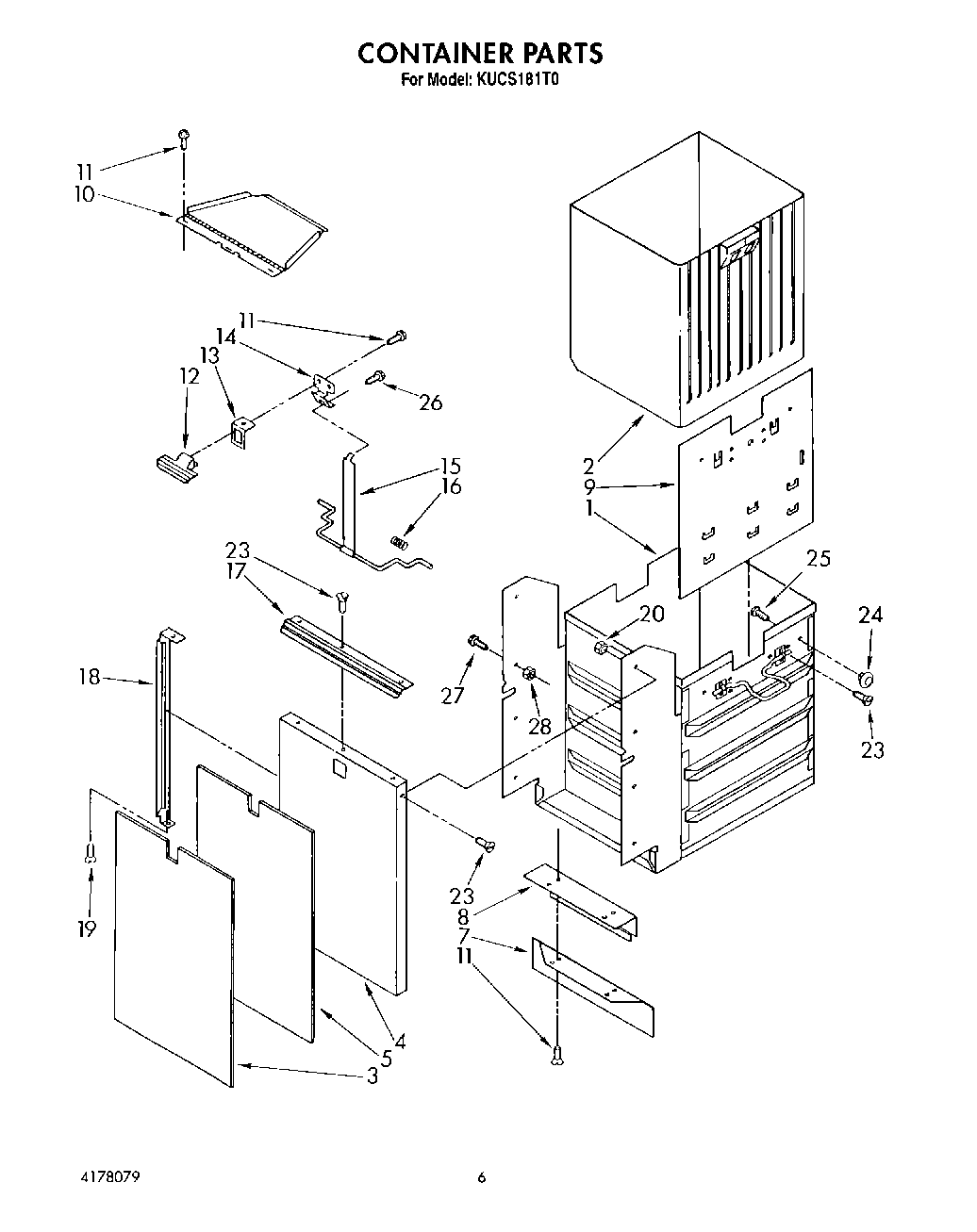

KUCS181T0 04 – CONTAINER

Products

Position	Product
1	Container
2	Liner, Container
3	Panel, Container (White & Almond)
3	Panel, Container (Harvest Gold & Black)
4	Front, Container
5	Filler, Panel
7	Plate, Toe
8	Bracket, Toe Plate
9	Plate, Releif
10	Cover, Storage
11	WP4159387 Whirlpool Compactor Screw
12	Handle, Pull
13	Bezel, Handle
14	Bracket, Handle
15	Latch, Container
16	Spring, Latch (Right Side)
16	Spring, Latch (Left Side)
17	Handle, Container
18	Trim, Front (Bottom)
18	Trim, Front (Right Side)
18	Trim, Front (Left Side)
19	Screw, 6 X 1/4
23	Screw, No.10 x 3/8 (3)
24	Retainer, Bag (4)
25	Screw
26	Screw, 10-24 x 3/8
27	Screw, 10-32 x 5/16
28	WP776338 Whirlpool Compactor Nut
