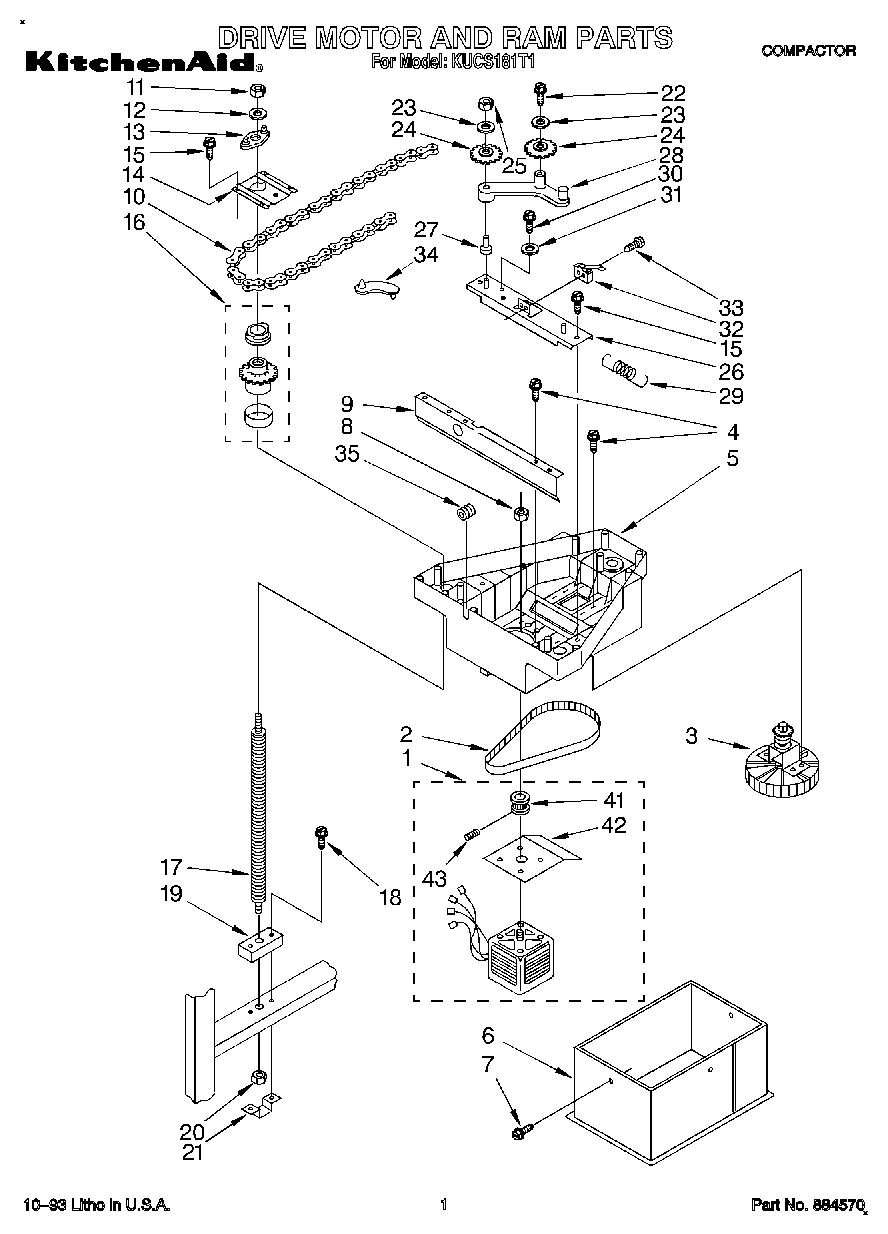

KUCS181T1 01 – DRIVE MOTOR AND RAM, LITERATURE

Products

Position	Product
	Guide, Use and Care
	Instructions, Installation (Front Panel)
	Instructions, Installation (Built-In Application)
	Diagram, Wiring
1	Motor, Drive
2	Belt, Drive
3	Sprocket, Driven
4	Screw, 1/4 20 x 2“ (4)
5	Ram, Top
6	Ram, Bottom
7	Screw, 10-24 x 3/8
9	Brace, Top
10	Chain, Drive
11	Nut, 5/16-18 (3)
12	WP3388703 Whirlpool Washer
13	Stop, Ram Upper
14	Plate, Powerscrew Cover (Right Side)
14	Plate, Powerscrew Cover (Left Side)
14	Plate, Powerscrew Cover (Rear)
15	Screw, 10-24 x 1/2
16	Sprocket, Powerscrew (3)
17	Powerscrew (3)
18	Screw, 1/4-20 x 7/16
19	Stop, Ram Lower (3)
20	Nut (3)
21	Retainer, Nut (3)
22	Screw
23	W11089212 Whirlpool Washer
24	Sprocket, Idler (4)
25	WP776338 Whirlpool Compactor Nut
26	Plate, Idler
27	Bushing (2)
28	Arm, Idler (Right Side)
28	Arm, Idler (Left Side)
29	Spring, Chain Tension
30	Screw
31	Lock Washer No.10 Ext. Shake- proof
32	Switch, Directional
33	Screw 6-32 X 7/8
34	Retainer, Wire
35	Grommet, Wiring
41	Gear, Drive
42	Deflector, Debris
43	Pin, Gear
