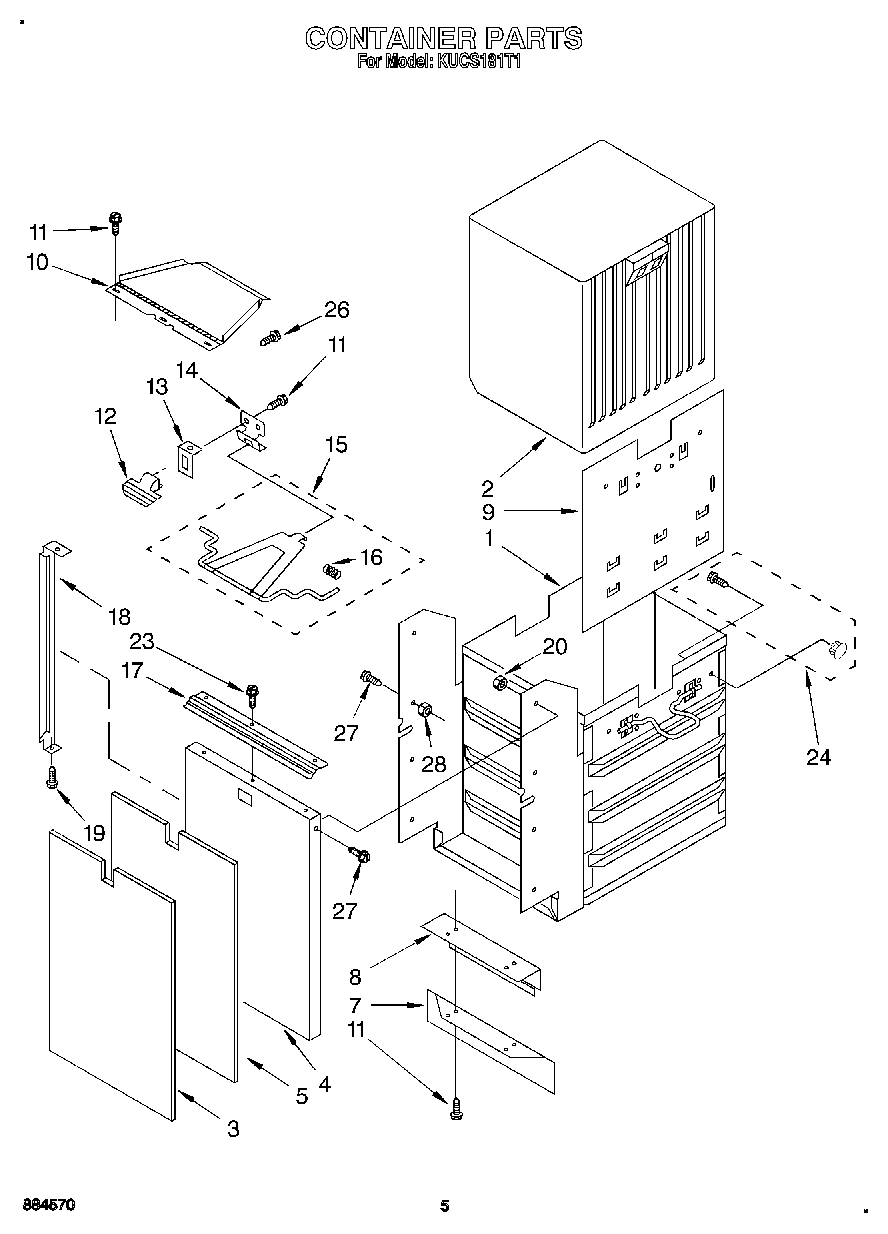

KUCS181T1 03 – CONTAINER

Products

PositionProduct
1Container
2Liner, Container
3Panel, Container (Harvest Gold & Black)
3Panel, Container (White & Almond)
4Front, Container
5Filler, Panel
7Plate, Toe
8Bracket, Toe Plate
9Plate, Releif
10Cover, Storage
11WP4159387 Whirlpool Compactor Screw
12Handle, Pull
13Bezel, Handle
14Bracket, Handle
15Latch Assembly
16Spring, Latch (Right Side)
16Spring, Latch (Left Side)
17Handle, Container
18Trim, Front (Bottom)
18Trim, Front (Left Side)
18Trim, Front (Right Side)
19Screw, 6 X 1/4
23Screw, No.10 x 3/8 (3)
24RETAINER, BAG
26Screw, 10-24 x 3/8
27Screw, 10-32 x 1/2
28WP776338 Whirlpool Compactor Nut
