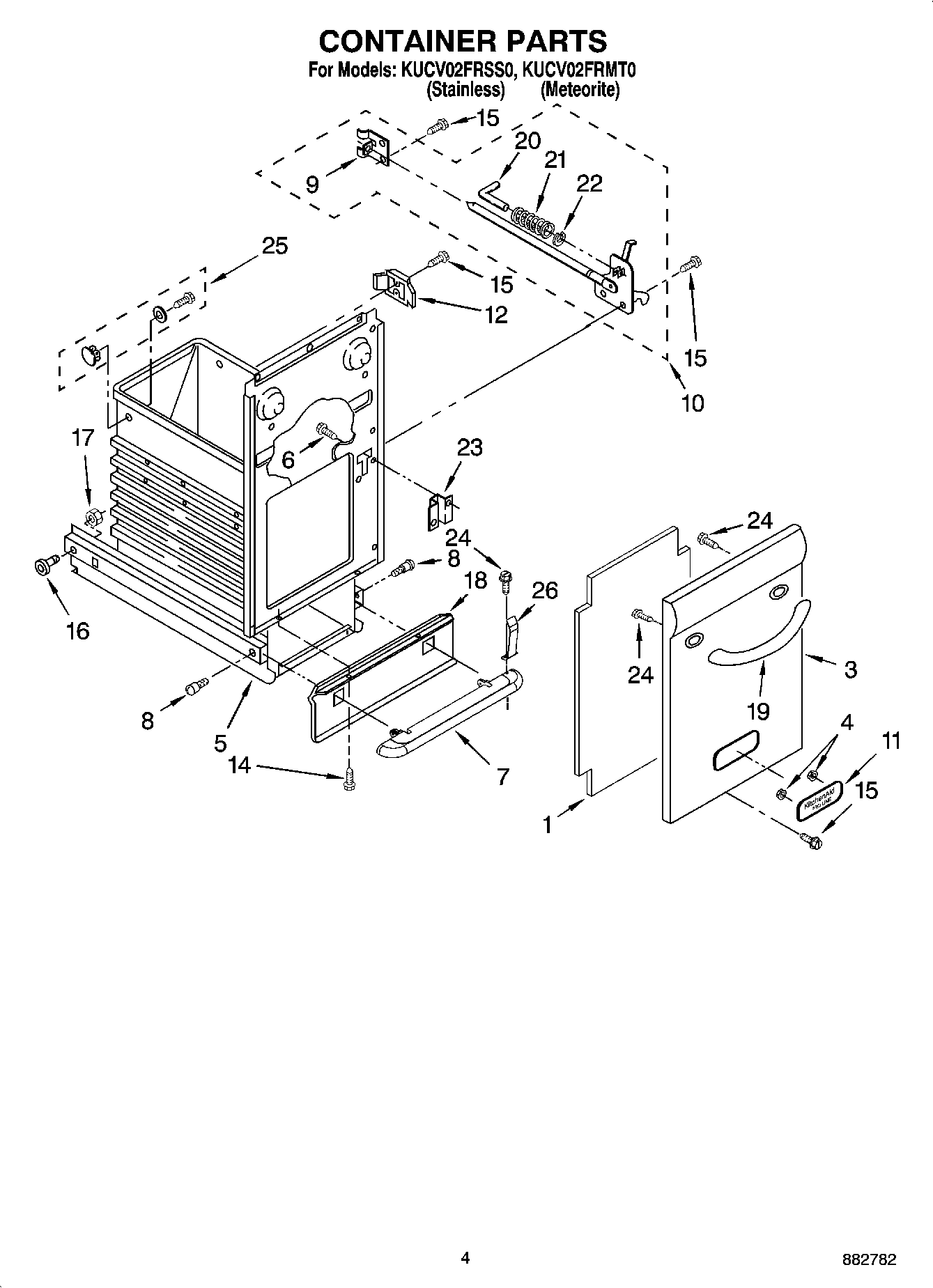

KUCV02FRMT0 04 – CONTAINER PARTS

Products

Position	Product
1	Insulation, Panel
3	Panel, Container (Stainless)
3	Panel, Container (Meteorite)
4	WP2004333 Whirlpool Refrigerator Nut
5	WPW10451276 Whirlpool Compactor Container
6	WPW10139210 Whirlpool Screw
7	W11636605 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	Nameplate
12	9871125 Whirlpool Compactor Actuator
14	WP3196175 Whirlpool Screw
15	WP489478 Whirlpool Refrigerator Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
19	Handle (Includes Item 24)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, ``E``
23	775665 Whirlpool Compactor Plate Latch
24	Screw
25	RETAINER, BAG
26	W10342596 Whirlpool Trash Compactor Actuator And Off Switch Kit
