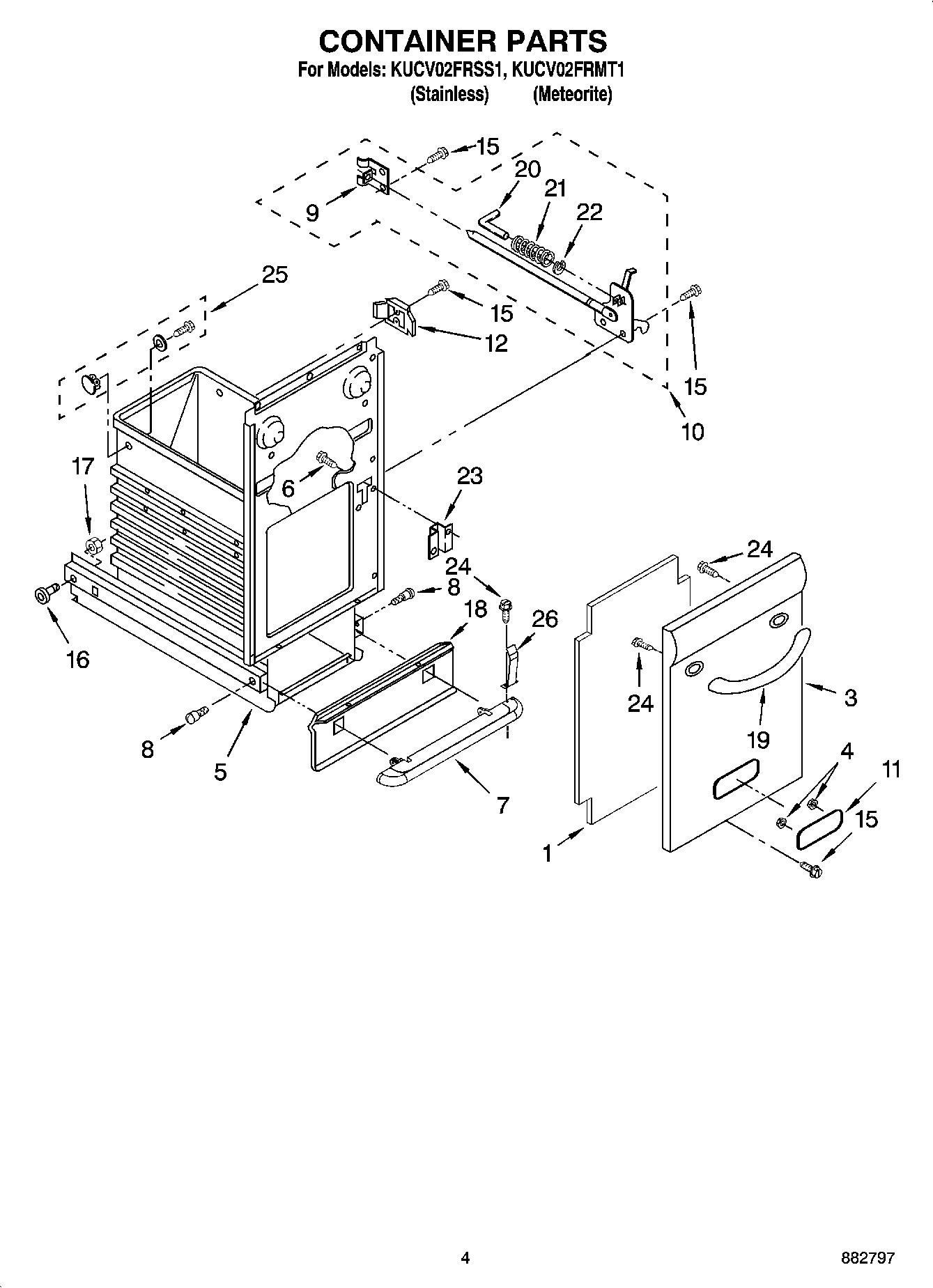

KUCV02FRSS1 04 – CONTAINER PARTS

KUCV02FRSS1 04 – CONTAINER PARTS

Written by

in

KUCV02FRSS1 04 – CONTAINER PARTS

Products

PositionProduct
1Insulation, Panel
3Panel, Container (Stainless)
3Panel, Container (Meteorite)
4WP2004333 Whirlpool Refrigerator Nut
5WPW10451276 Whirlpool Compactor Container
6WPW10139210 Whirlpool Screw
7W11636605 Whirlpool Compactor Foot Pedal
8WP780263 Whirlpool Compactor Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11Nameplate
129871125 Whirlpool Compactor Actuator
15WP489478 Whirlpool Refrigerator Screw
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18WP777328 Whirlpool Compactor Guard
19Handle (Includes Item 24)
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23775665 Whirlpool Compactor Plate Latch
24Screw
25RETAINER, BAG
26W10342596 Whirlpool Trash Compactor Actuator And Off Switch Kit
