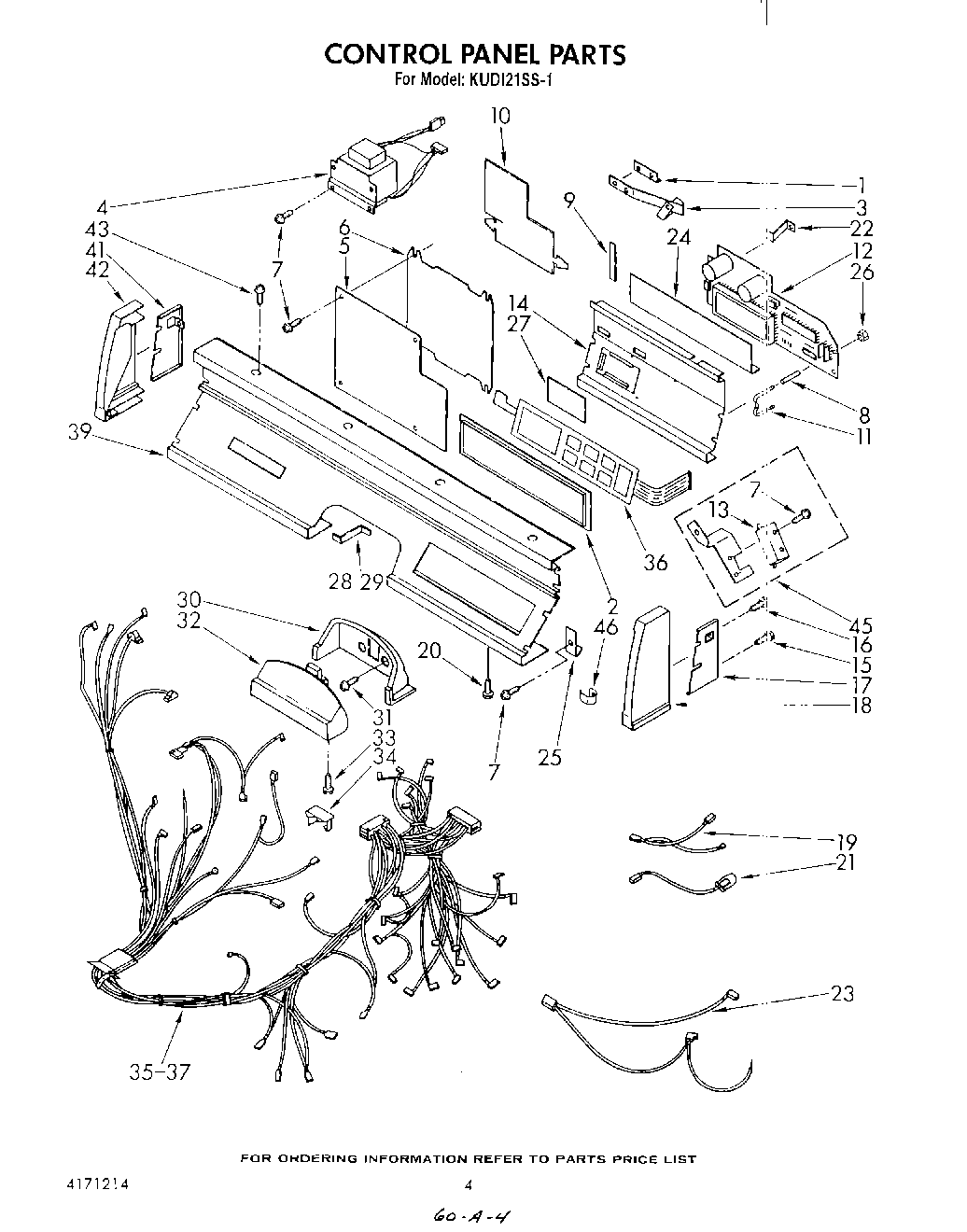

KUD121SS1 04 – CONTROL PANEL , LIT/OPTIONALadmin2025-04-26T12:41:24+00:00KUD121SS1 04 – CONTROL PANEL , LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Platinum (Uncut) |
| WPL 72112 |
| 350942 Whirlpool Spray Paint |
| 285006 Whirlpool Spray |
| Vinyl Touch Up (Blue) |
| Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| Kit, Epoxy Patch (White) |
| Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation) |
| WPL LIT4177720 |
| WPL LIT4177566 |
| WPL LIT4171214 |
| WPL LIT4171139 |
| Enamal, Toast (1 Qt. Uncut) |
| Paint, Spray (13 Oz.) (Platinum) |
| Toast |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| WPL LIT4171136 |
| 72113 Whirlpool Touch-Up Paint |
| Golden Harvest (Uncut) |
| Golden Harvest |
| 1 | Spacer, Spring |
| 2 | Bezel |
| 3 | Spring, Interlock |
| 4 | Transformer |
| 5 | Cover, Relay Board |
| 6 | Relay Board |
| 7 | SCREW |
| 8 | Spacer, Circuit Board |
| 9 | Seal, Foam (2) |
| 10 | Insulator, Harness |
| 11 | Retainer |
| 12 | Display Controller Assy. |
| 13 | Switch, Interlock |
| 14 | Retaining Bracket |
| 15 | Screw & Washer Assy |
| 16 | WP681249 Whirlpool Screw Assembly |
| 17 | Spacer, End Cap (R.H.) |
| 18 | End Cap (R.H.) |
| 19 | Wiring Harness (Grounding) |
| 20 | Screw, 6-32 X 3/8 |
| 21 | Lead (Fill Control to Fill Valve) |
| 22 | Clip, Grounding |
| 23 | Wiring Harness (Lower Common) |
| 24 | Shield, Display Board |
| 25 | Clip, Grounding (Front Panel) |
| 26 | Pushnut (4) |
| 27 | Window, Support |
| 28 | Bracket, Panel Reinforcement |
| 29 | Screw, 6-20 x 3/8 |
| 30 | Trim, Handle |
| 31 | WP912618 Whirlpool Dishwasher Screw |
| 32 | Handle, Latch |
| 33 | Screw, 10-32 x 5/8 |
| 34 | Clip, Harness Guide |
| 35 | Wiring Harness (Main) |
| 36 | Switch, Membrane |
| 37 | WPL 4159349 |
| 39 | Control Panel |
| 41 | Spacer, End Cap (L.H.) |
| 42 | End Cap (L.H.) |
| 43 | Screw, 6-20 x 3/8 |
| 45 | Bracket, Door Switch Assy. |
| 46 | Clip, Endcap (2) |
