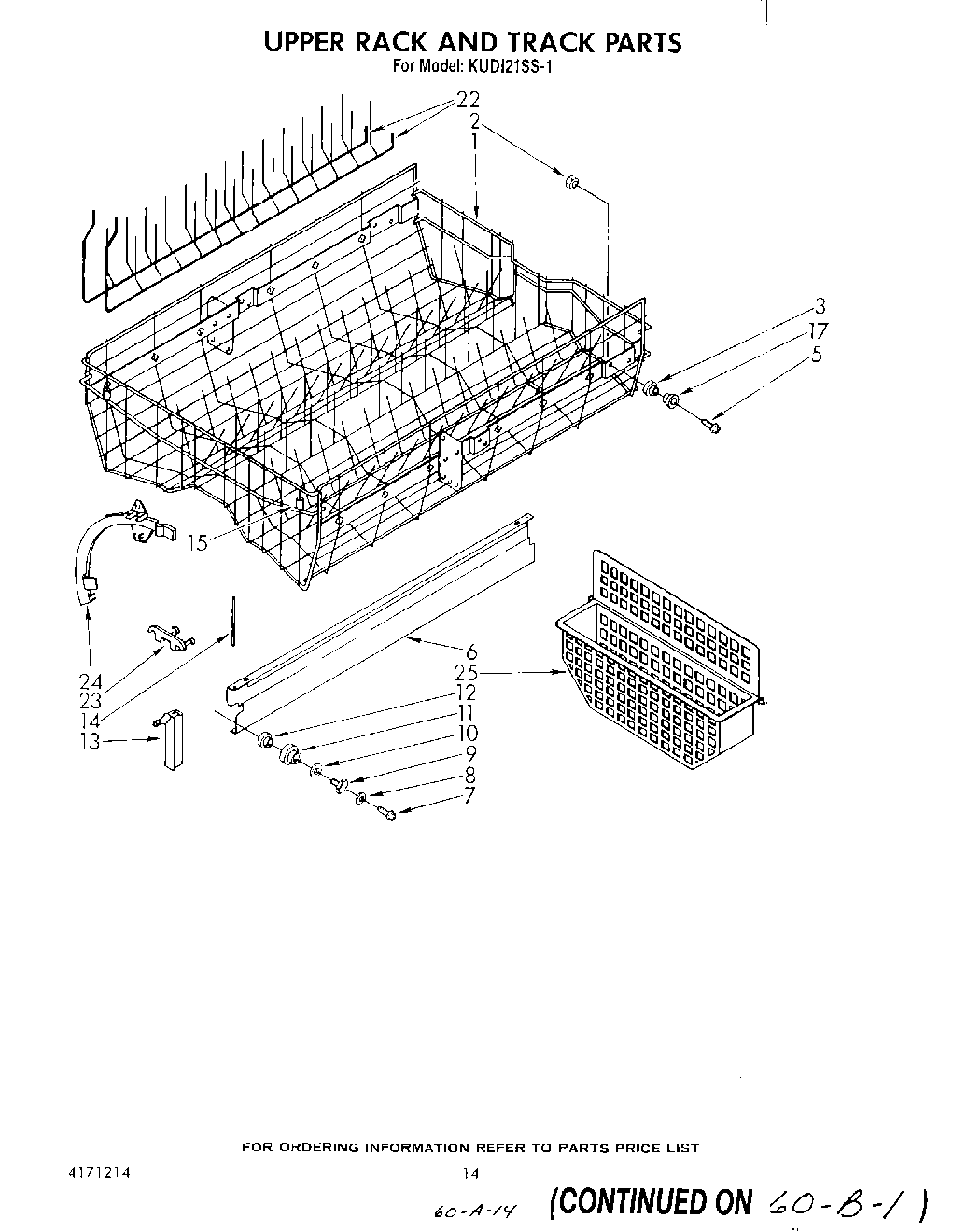

KUD121SS1 11 – UPPER RACK AND TRACKadmin2025-04-26T12:42:34+00:00KUD121SS1 11 – UPPER RACK AND TRACK
Products
| Position | Product |
|---|
| 1 | Upper Rack Assy. (Incls. Items 2-15 & 17-24) |
| 2 | Nut, Roller |
| 3 | Bearing & Spacer, Rack Roller |
| 5 | Screw, 10-16 X 1 |
| 6 | Track, Rack |
| 7 | Screw, 10-16 X 3/8 |
| 8 | Gasket, Rack Stud |
| 9 | Stud, Rack Roller |
| 10 | Washer, Roller Spacing |
| 11 | Roller, Rack Track |
| 12 | Bushing, Rack Roller |
| 13 | Bumper, Rack Track |
| 14 | Stud, Bumper Retaining |
| 15 | Bumper, Upper Rack |
| 17 | Roller, Upper Rack Track |
| 22 | Partition |
| 23 | Clip, Partition (3) |
| 24 | Quadrant, Divider (R.H.) |
| 24 | Quadrant, Divider (L.H.) |
| 25 | W11175758 Whirlpool Dishwasher Basket Ware |
