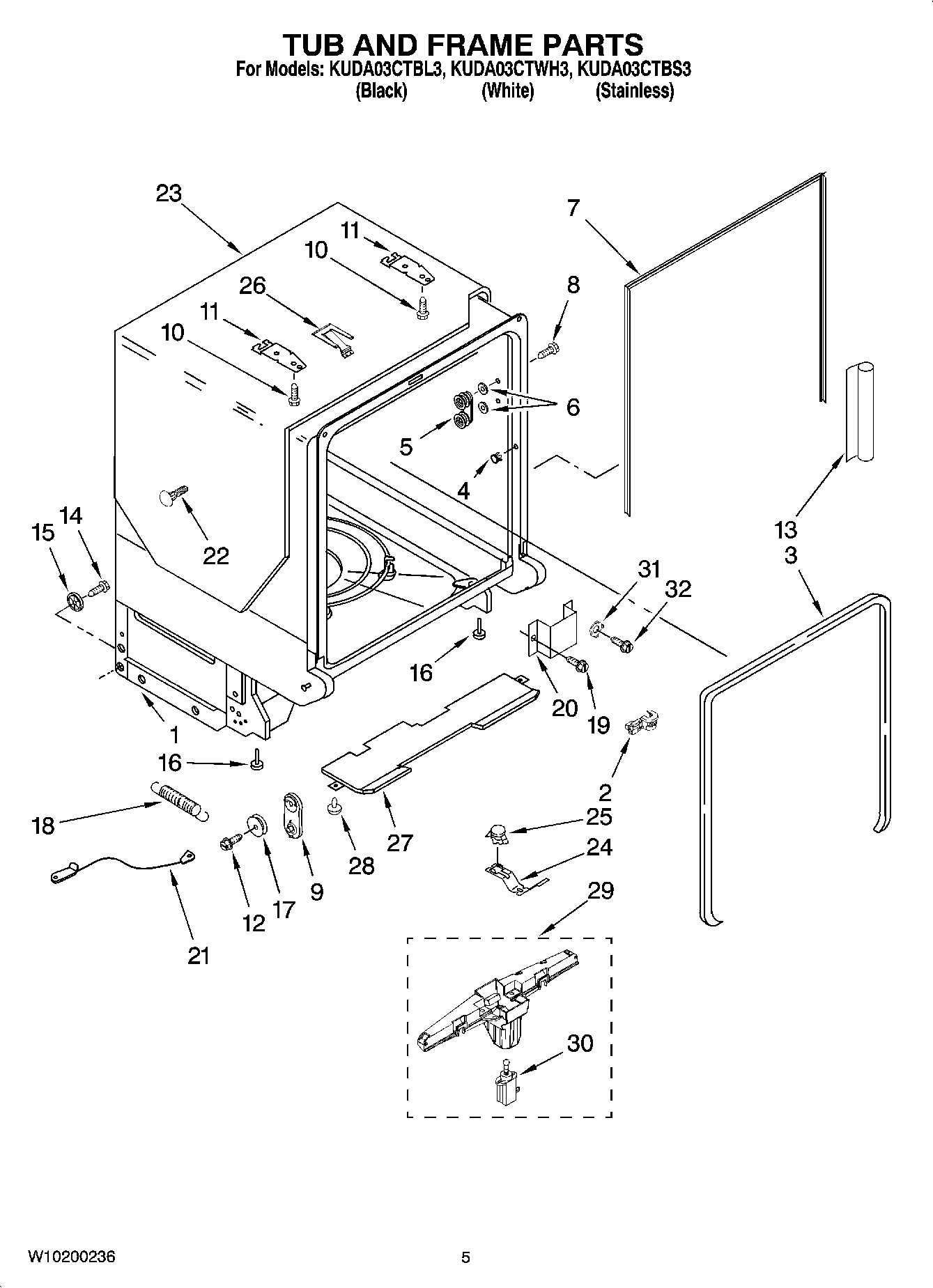

KUDA03CTBS3 05 – TUB AND FRAME PARTS

Products

Position	Product
1	Tub Assembly (Also Includes Heater Assembly)
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W11196317 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10078083 Whirlpool Dishwasher Dishrack Wheel
6	WP9743002 Whirlpool Dishwasher Gasket
7	SEAL
8	WPW10348407 Whirlpool Dishwasher Screw
9	8194001 Whirlpool Dishwasher Door Balance Link Kit
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	Barrier, Moisture Undercounter
14	Screw (2)
15	WP8268977 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP8524474 Whirlpool Dishwasher Wheel Assembly
18	SPRING
19	WP3400892 Whirlpool Dishwasher Screw
20	WP8268991 Whirlpool Dishwasher Cover Assembly
22	WP304666 Whirlpool Dishwasher Retainer
23	W10877094 Whirlpool Shield
24	9742648 Whirlpool Dishwasher Stat Bracket
25	WP661566 Whirlpool High Limit Thermostat
26	Strike, Latch
27	WPW10746770 Whirlpool Insulation Pad
28	WP3400924 Whirlpool Dishwasher Retainer
29	WP8572661 Whirlpool Dishwasher Actuator
30	Motor, Wax
31	WP3378128 Whirlpool Dishwasher Washer
32	WP3400014 Whirlpool Dishwasher Screw
