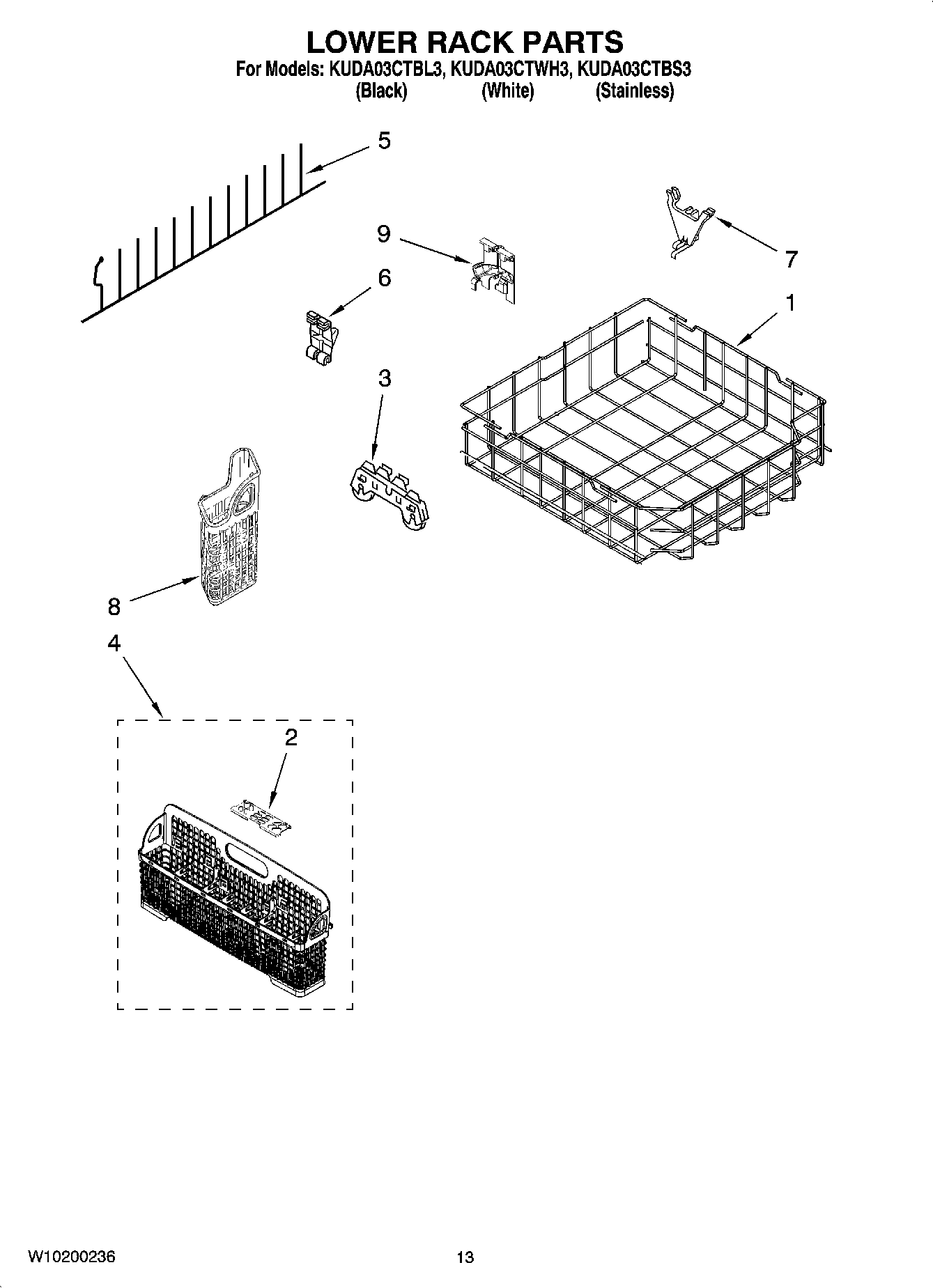

KUDA03CTBS3 10 – LOWER RACK PARTS

KUDA03CTBS3 10 – LOWER RACK PARTS

Written by

in

KUDA03CTBS3 10 – LOWER RACK PARTS

Products

PositionProduct
1W10728159 Whirlpool Dishwasher Lower Dishrack Assembly
28519662 Whirlpool Dishwasher Lid
3WPW10082868 Whirlpool Wheel
4WP8562043 Whirlpool Silverware Basket
5WP8531314 Whirlpool Dishwasher Retainer
6W10728160 Whirlpool Tine Assembly
7WPW10078227 Whirlpool Dishwasher Pivot Tine
8BASKET, UTENSIL
9WPW10078215 Whirlpool Dishwasher Tine Row Combo Retainer
