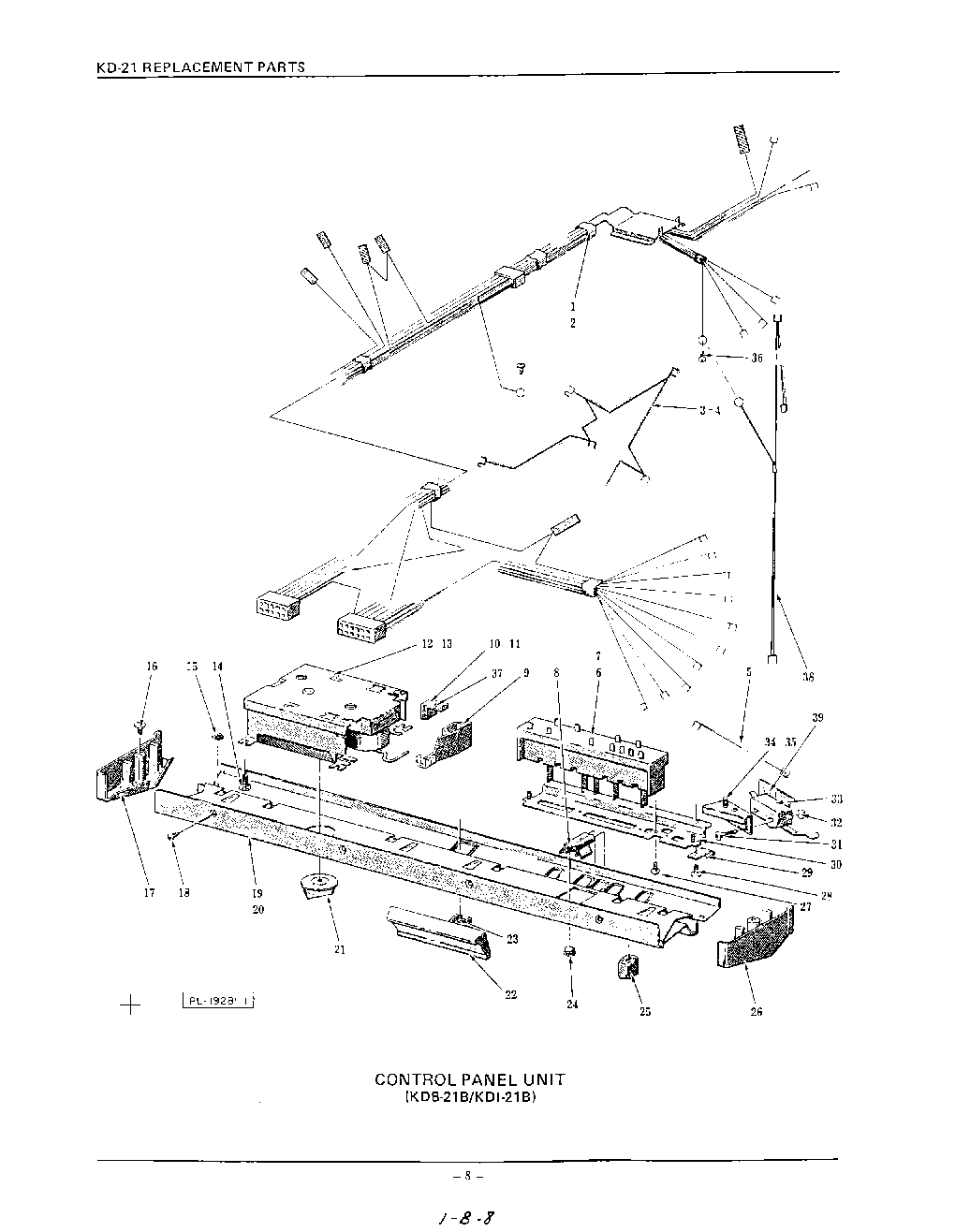

KUDA210S0 05 – KDB-21B/KDI-21B

Products

Position	Product
1	Wiring Harness (Main) (KDB-21B)
2	WPL 242439
3	Wiring Harness (Lower) (KDB-21B)
4	WPL 2424422
5	Lead Assy. (Interlock Switch to Program Switch)
6	Switch – Program (KDB-21)
7	Switch – Program (KDI-21B) (5 Button)
8	WPL 241572
9	Spring – Switch Cancel
10	Spacer – Spring
11	Anchor – Cancel Spring
12	Timer – Interval (115 V., 60 Hz.) (KDB-21B)
13	Timer – Interval (115 V., 60 Hz.) (KDI-21B)
15	Special Nut – 1/8“ Stud “Palnut“
16	Screw & Washer Assy
17	Cap – End (L.H.)
18	WPL SD2227
19	Trim Panel & Insert Assy. (KDB-21B)
20	WPL 242612
21	WPL 241537
22	Handle – Latch
23	WPL SC1714
24	WPL 2411572
25	Button – Push
26	Cap – End (R.H.)
27	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
29	Clip – Grounding (Front Panel)
30	Bracket – Program Switch
31	Mach. Screw – No.6-32 x 7/8“ Rd. Hd
32	Special Nut – No.6-32 “Palnut“
33	Switch – Interlock
34	Bracket – Interlock Switch (KDA)
35	WPL SD1311
36	WPL SD843
37	Pop Rivet – 1/8“ Open End
38	WPL 242445
39	WPL 241302
39	WPL 242609
39	WPL 242613
