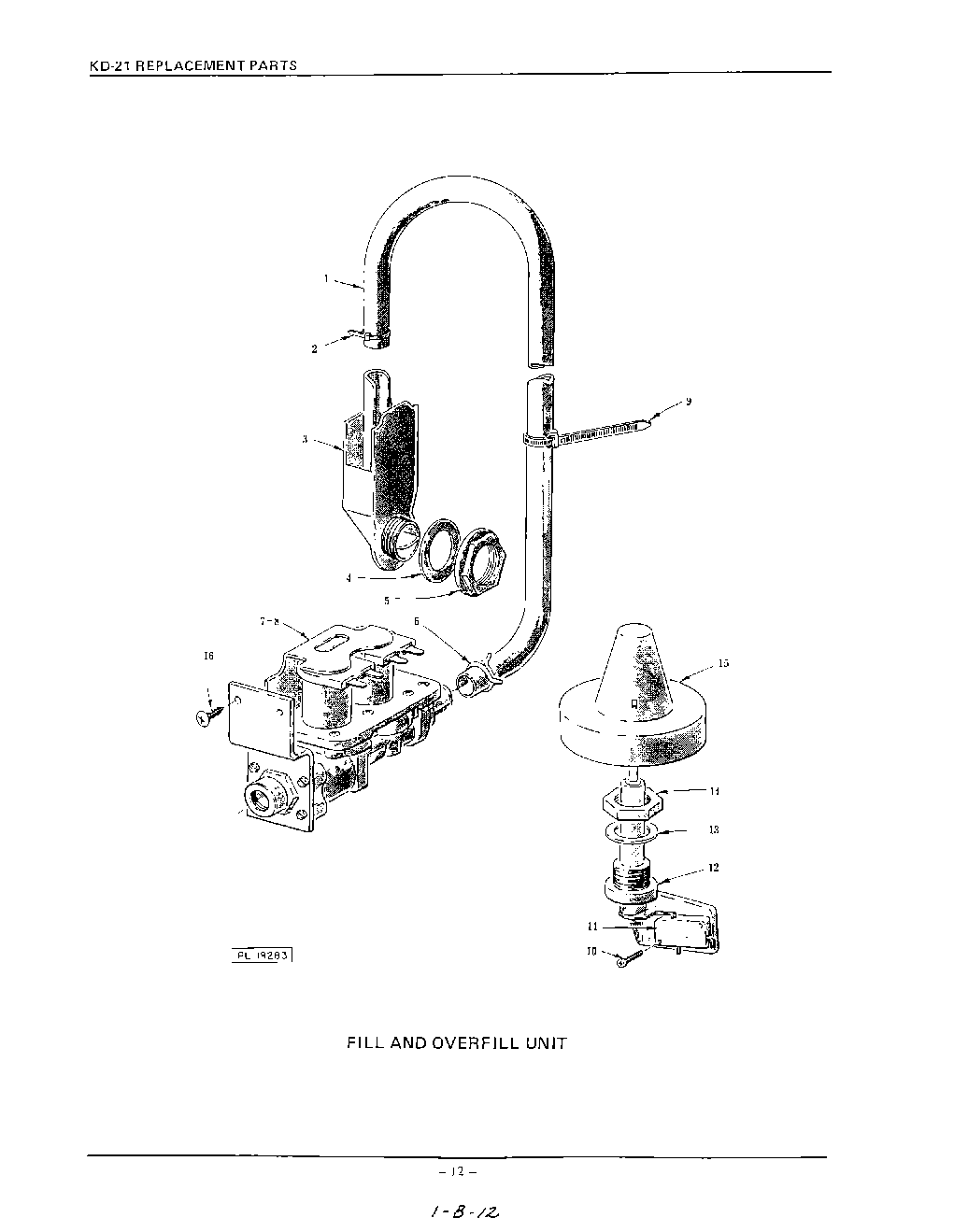

KUDA210S0 07 – FILL AND OVERFILLadmin2025-04-26T12:43:33+00:00KUDA210S0 07 – FILL AND OVERFILL
Products
| Position | Product |
|---|
| 1 | Hose - Flexible (Fill Valve to Air Gap) |
| 2 | Clamp - Hose |
| 3 | Air Gap - Fill |
| 4 | Gasket - Rubber (White) |
| 5 | Nut (Fill Air Gap) |
| 6 | Clamp - Hose |
| 7 | Valve - Fill (Double Coil) (115 V., 60 Hz.) (KDC-21, KDI-21, KDS-21, KDC-21D, KDI-21D) |
| 8 | Valve - Fill (Single Coil) (KDA-21B, KDB-21B, KDI-21B, KDI-61) |
| 9 | Tie - Wire (8`` Lg.) |
| 10 | Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., Type F |
| 11 | Switch - Overfill Control (115 V., 60 Hz.) |
| 12 | Standpipe - Overfill |
| 13 | Gasket - Flat |
| 14 | Nut - Standpipe |
| 15 | Float & Retainer Assy |
| 16 | Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB |
