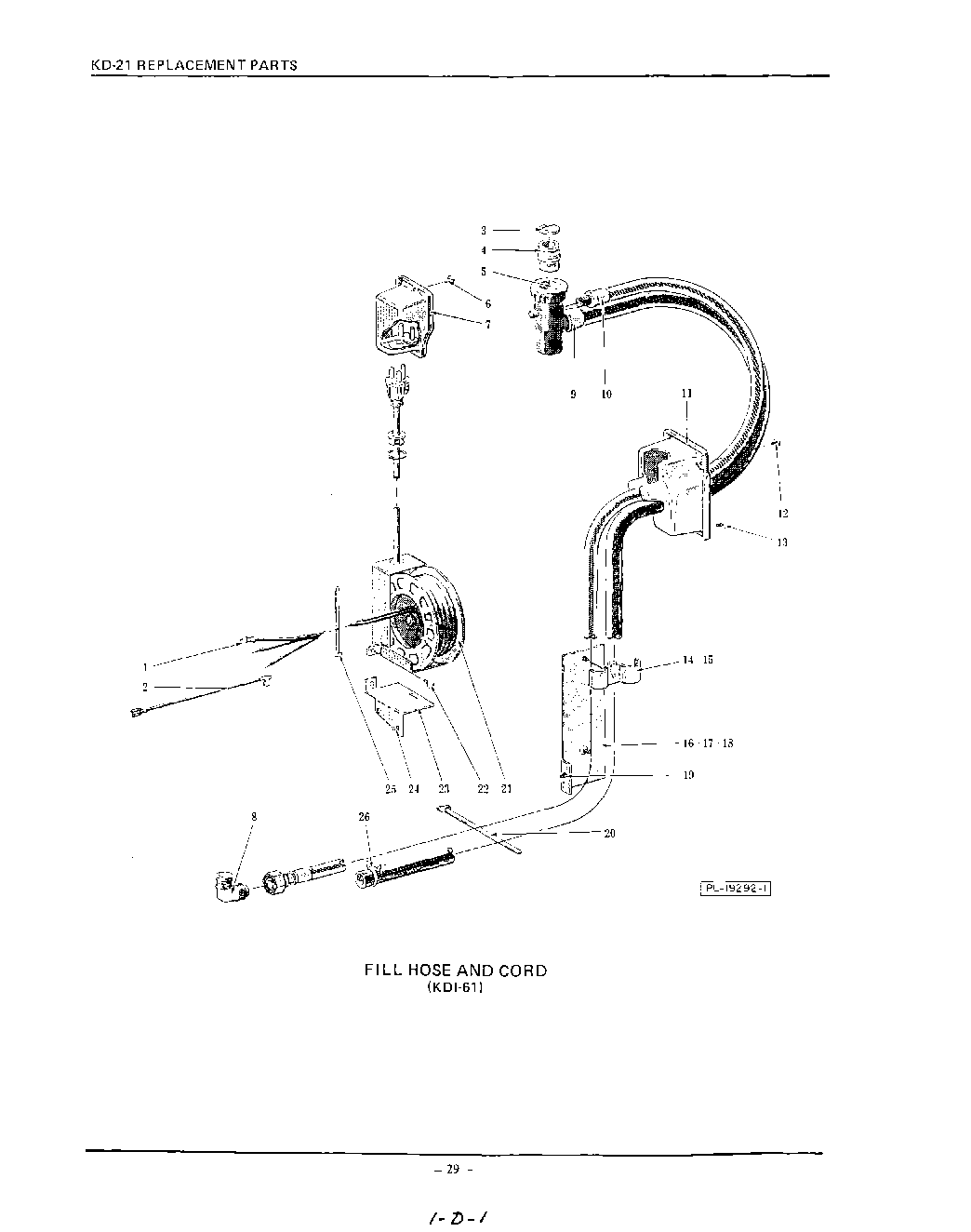

KUDA210S0 17 – FILL HOSE AND CORD KDI-61

Products

Position	Product
1	Self-Tapping Screw 10-16 x 1/2 Phil. Rd. Hd., Type AB
2	Lead Assy. (Over Fill Switch to Fill Valve)
3	Washer Kit
4	Aerator & Connector Assy. (Incls. item No.3)
5	Gasket – Seal (“U“ Section)
7	Housing – Power Cord
8	Elbow – Tube Fitting
9	Coupler, Drain Hose & Ferrule Assy. (Incls. item No.5)
10	Fill Hose, Sleeve & Nut Assy
11	Housing – Hose Coupler
12	Self-Tapping Screw 6-20 x 5/8 Phil. Oval Hd., Type AB
13	Self-Tapping Screw 6-20 x 3/8 Phil. Oval Undercut Hd., Type AB
14	Clamp – Hose
15	Self-Tapping Screw 10-16 x 3/8 Phil. Truss Hd., Type AB
16	Bracket – Hose Anchor
17	Washer – Trim
18	WPL SD2227
20	Wire Tie (8“) (Fill Hose)
21	Cord Reel Assy
23	Bracket – Cord Reel Mounting
24	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
25	Strap – Retaining (Cord)
26	Clamp – Hose
26	Coupler Service Kit
