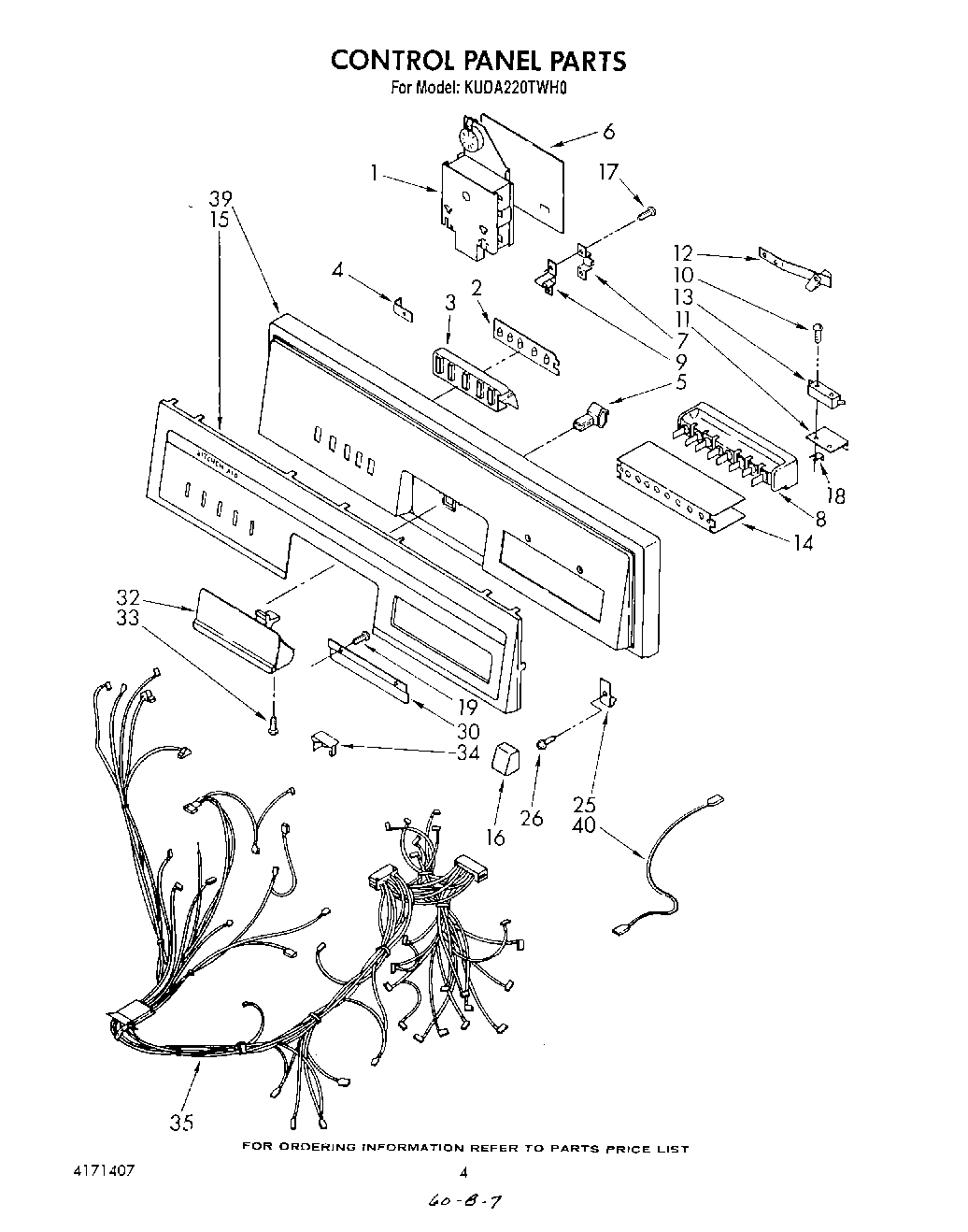

KUDA220TWH0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT4171406
	285006 Whirlpool Spray
	675679 Whirlpool Dishwasher White Tip Tines
	WPL LIT4171206
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	W10841140 Whirlpool Dishwasher Adhesive
	WPL LIT4171407
	WPL LIT9740075
	WPL LIT4171369
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	Enamal, Toast (1 Qt. Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	799344 Whirlpool Refrigerator Paint
1	Timer Assembly (115 V., 60 Hz.)
2	Board, Light
3	Light Cover
4	Clip, Switch
5	Spring, Switch
6	Barrier, Timer
7	Retainer, Program Switch
8	Switch, Program
9	Guide, Cancel Spring
10	Screw (2)
11	Bracket, Door Switch
12	Spring, Interlock
13	Switch, Interlock
14	Protector, Program Switch
15	Insert, Control Panel (Almond)
15	Insert, Control Panel (White)
16	Pushbutton (8)
17	WP488921 Whirlpool Refrigerator Screw
18	Spacer, Interlock Bracket
19	Screw
25	Clip, Grounding (Front Panel)
26	SCREW
30	Bracket, Support
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
39	Control Panel (Pushnut, Membrane)
39	Control Panel (White)
39	Control Panel (Almond (Includes Item 15))
40	Lead, Program Switch
