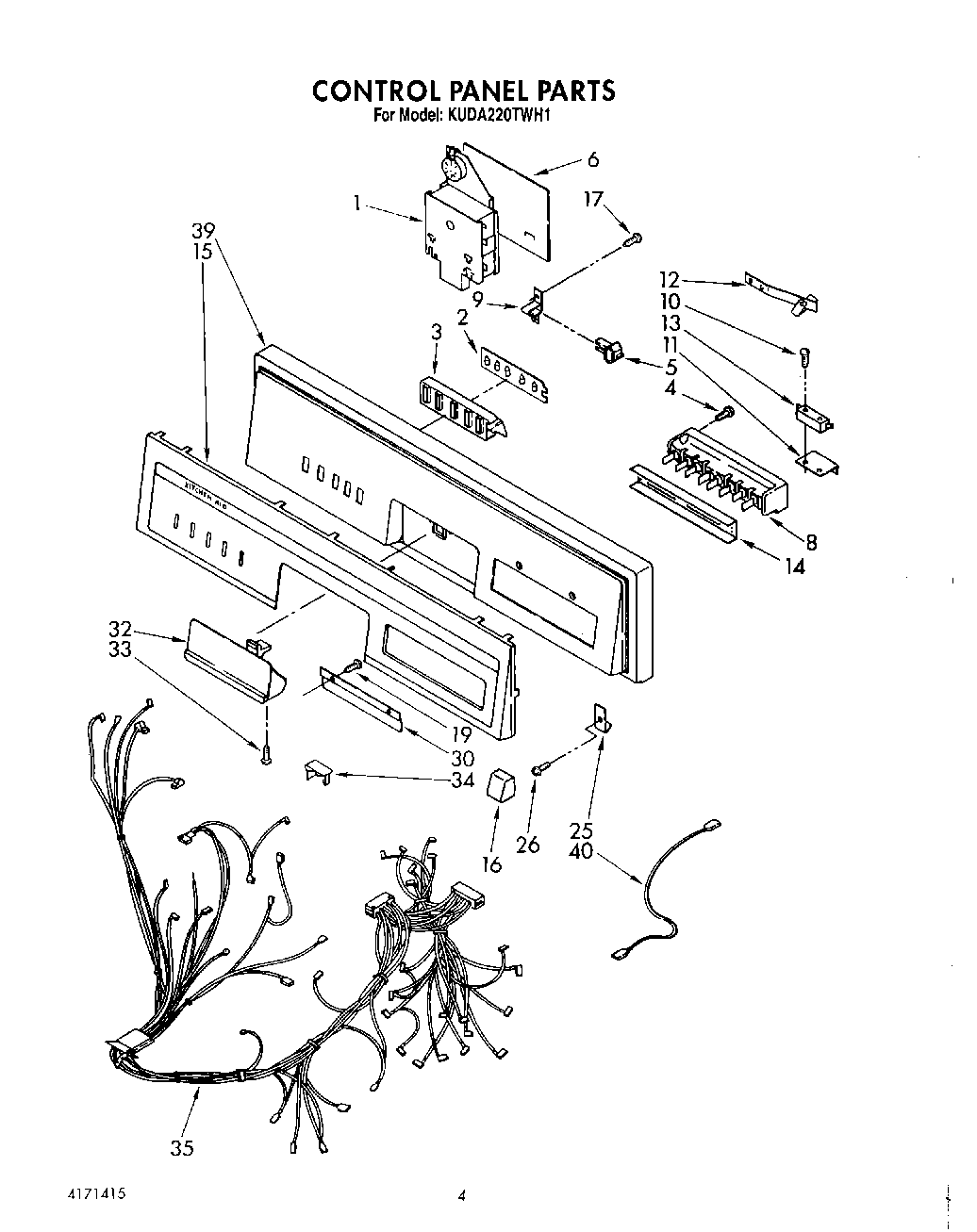

KUDA220TWH1 04 – CONTROL PANEL, LIT/OPTIONAL
Written by
in
KUDA220TWH1 04 – CONTROL PANEL, LIT/OPTIONAL
Products
Position
Product
WPL LIT4171406
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
675679 Whirlpool Dishwasher White Tip Tines
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
W10841140 Whirlpool Dishwasher Adhesive
WPL LIT4171415
WPL LIT4171206
WPL LIT9740075
WPL LIT4171369
Paint, Spray (13 Oz.) (Platinum)
Toast
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
Leveler (Thinner)
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
Golden Harvest (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Golden Harvest
72113 Whirlpool Touch-Up Paint
1
Timer Assembly (115 V., 60 Hz.)
2
Board, Light
3
Light Cover
4
Screw, 6-32 X 3/8
5
Spring, Switch
6
Barrier, Timer
8
Switch, Program
9
Guide, Cancel Spring
10
Screw (2)
11
Bracket, Door Switch
12
Spring, Interlock
13
Switch, Interlock
14
Bracket, Program Switch
15
Insert, Control Panel (Almond)
15
Insert, Control Panel (White)
16
Pushbutton (8)
17
WP488921 Whirlpool Refrigerator Screw
19
Screw
25
Clip, Grounding (Front Panel)
26
SCREW
30
Bracket, Support
32
Handle, Latch
33
Screw, 10-32 x 5/8
34
Clip, Harness Guide
35
Wiring Harness (Main)
35
WPL 4159349
39
Control Panel (Almond (Includes Item 15))
39
Control Panel (White)
39
Control Panel (Pushnut, Membrane)
40
Lead, Program Switch
←
