KUDA220TWH2 03 – BLOWER

KUDA220TWH2 03 – BLOWER

Written by

in

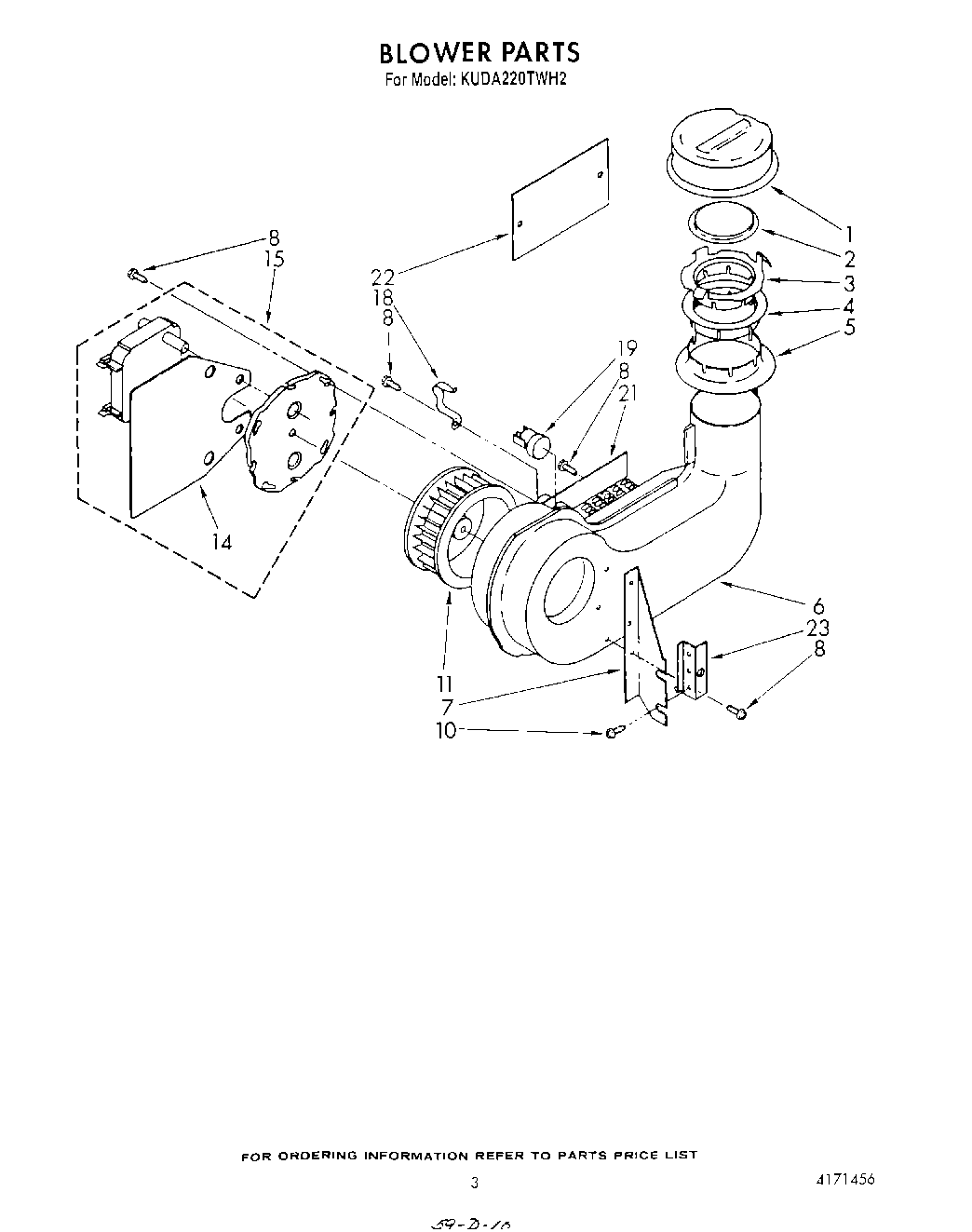

KUDA220TWH2 03 – BLOWER

Products

PositionProduct
1Cover, Air Inlet (Incls. Items 2 thru 5)
2Float, Check Valve
3Support, Air Inlet Cover
4Deflector, Air (Upper)
5Deflector, Air (Lower)
6Dryer Housing & Bracket Assembly (Includes Items 7 & 19)
7Bracket, Housing Support
8Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
10Screw, 10-16 X 5/8
11Wheel, Blower
14Cover, Dryer Motor
15Blower Motor Assembly
18Clip, Thermoprotector
19Thermostat
19Thermostat (Alt.)
19Thermostat (Alt.)
19Thermostat (Alt.)
21Heater, Open (Alt.)
21Heater, Open (Alt.)
21Heater, Open (Alt.)
21Heater, Open
22Access Cover
23Bracket, Blower Mounting
