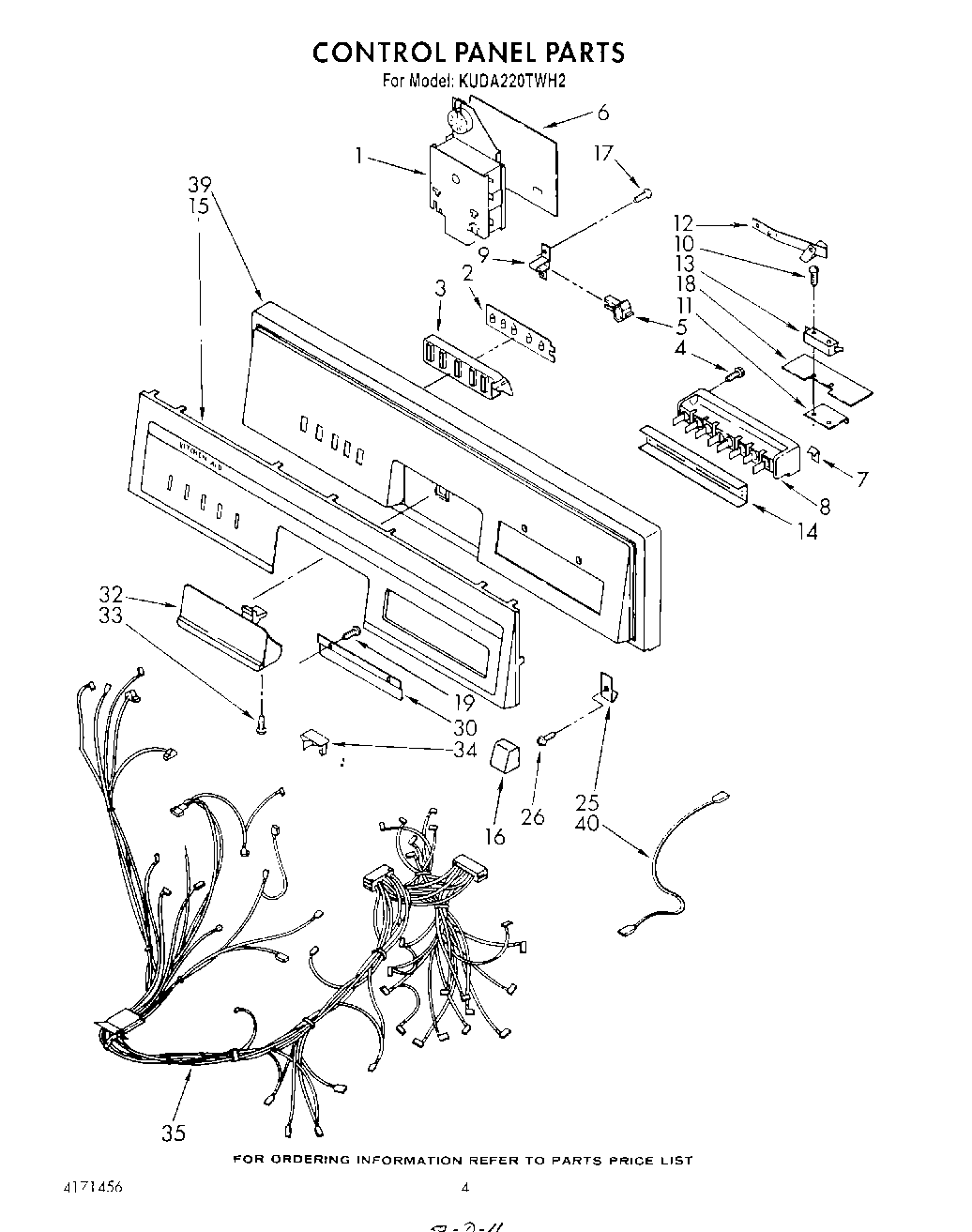

KUDA220TWH2 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	WPL LIT4171369
	285006 Whirlpool Spray
	675679 Whirlpool Dishwasher White Tip Tines
	WPL LIT9740075
	WPL LIT4171210
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	W10841140 Whirlpool Dishwasher Adhesive
	WPL LIT4171206
	WPL LIT4171456
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
1	Timer Assembly (115 V., 60 Hz.)
2	Board, Light
3	Light Cover
4	Screw, 6-32 X 3/8
5	Spring, Switch
6	Barrier, Timer
7	Spacer, Interlock Bracket
8	Switch, Program
9	Guide, Cancel Spring
10	Screw (2)
11	Bracket, Door Switch
12	Spring, Interlock
13	Switch, Interlock
14	Bracket, Program Switch
15	Insert, Control Panel (Almond)
15	Insert, Control Panel (White)
16	Pushbutton (8)
17	WP488921 Whirlpool Refrigerator Screw
18	Insulator, Door Switch
19	Screw
25	Clip, Grounding (Front Panel)
26	SCREW
30	Bracket, Support
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel (Almond (Includes Item 15))
39	Control Panel (White)
39	Control Panel (Pushnut, Membrane)
40	Lead, Program Switch
