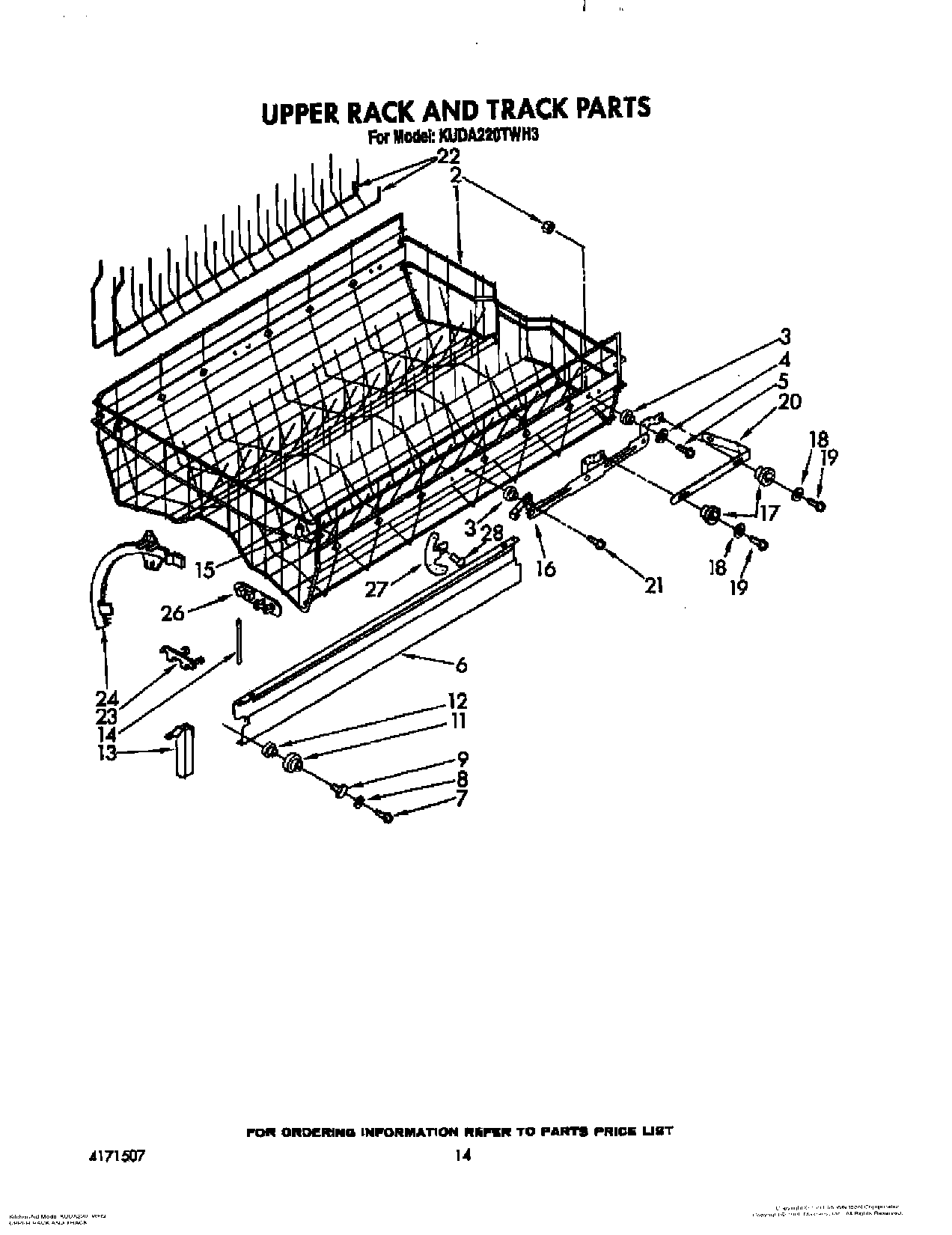

KUDA220TWH3 11 – UPPER RACK AND TRACK
Written by
in
KUDA220TWH3 11 – UPPER RACK AND TRACK
Products
Position
Product
Complete Upper Rack Assembly (Includes Upper Sprayarm Parts)
1
Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2
Nut, Roller
3
Bearing & Spacer, Rack Roller
4
Washer
6
Track, Rack
7
Screw, 10-16 X 3/8
8
Gasket, Rack Stud
9
Stud, Rack Roller
11
Roller, Rack Track
12
Bushing, Rack Roller
13
Bumper, Rack Track
14
Stud, Bumper Retaining
15
Bumper, Upper Rack
16
Track, Adjustable (L.H.)
16
Track, Adjustable (R.H.)
17
Roller, Upper Rack Track
18
Washer
19
Screw, 8-32 X 1/4 (4)
20
Lift, Receiver (R.H.)
20
Lift, Receiver (L.H.)
21
Screw, 10-16 X 5/8
22
Partition
23
Clip, Partition (3)
24
Quadrant, Divider (R.H.)
24
Quadrant, Divider (L.H.)
26
Clip, Wash Arm Guard
27
Rackstop (R.H.)
27
Rackstop (L.H.)
28
Rivet
←
