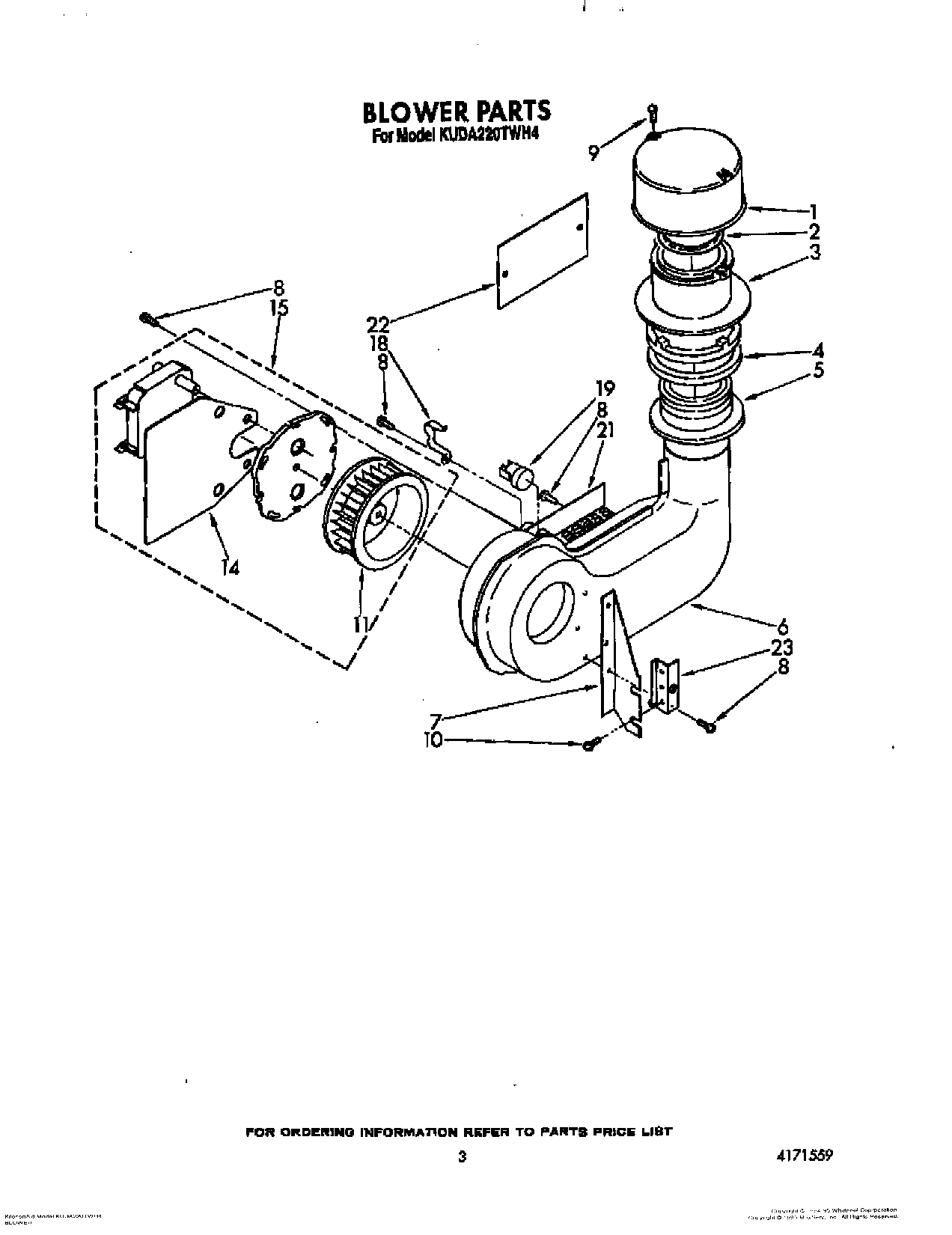

KUDA220TWH4 03 – BLOWER

Products

PositionProduct
1Cover, Air Inlet
2Float, Check Valve
3Vent Tube
4Seal
5Retainer, Vent Tube
6Dryer Housing
7Bracket, Housing Support
8Screw, Self- Tapping 8-18 X 5/16 Phil. Pan Hd.
9Screw, No.6 (2)
10Screw, 10-16 X 5/8
11Wheel, Blower
14Cover, Dryer Motor
15Blower Motor Assembly
18Clip, Thermoprotector
19Thermostat (Alt.)
19Thermostat (Alt.)
19Thermostat (Alt.)
19Thermostat
21Heater, Open
21Heater, Open (Alt.)
21Heater, Open (Alt.)
21Heater, Open (Alt.)
22Access Cover
23Bracket, Blower Mounting
