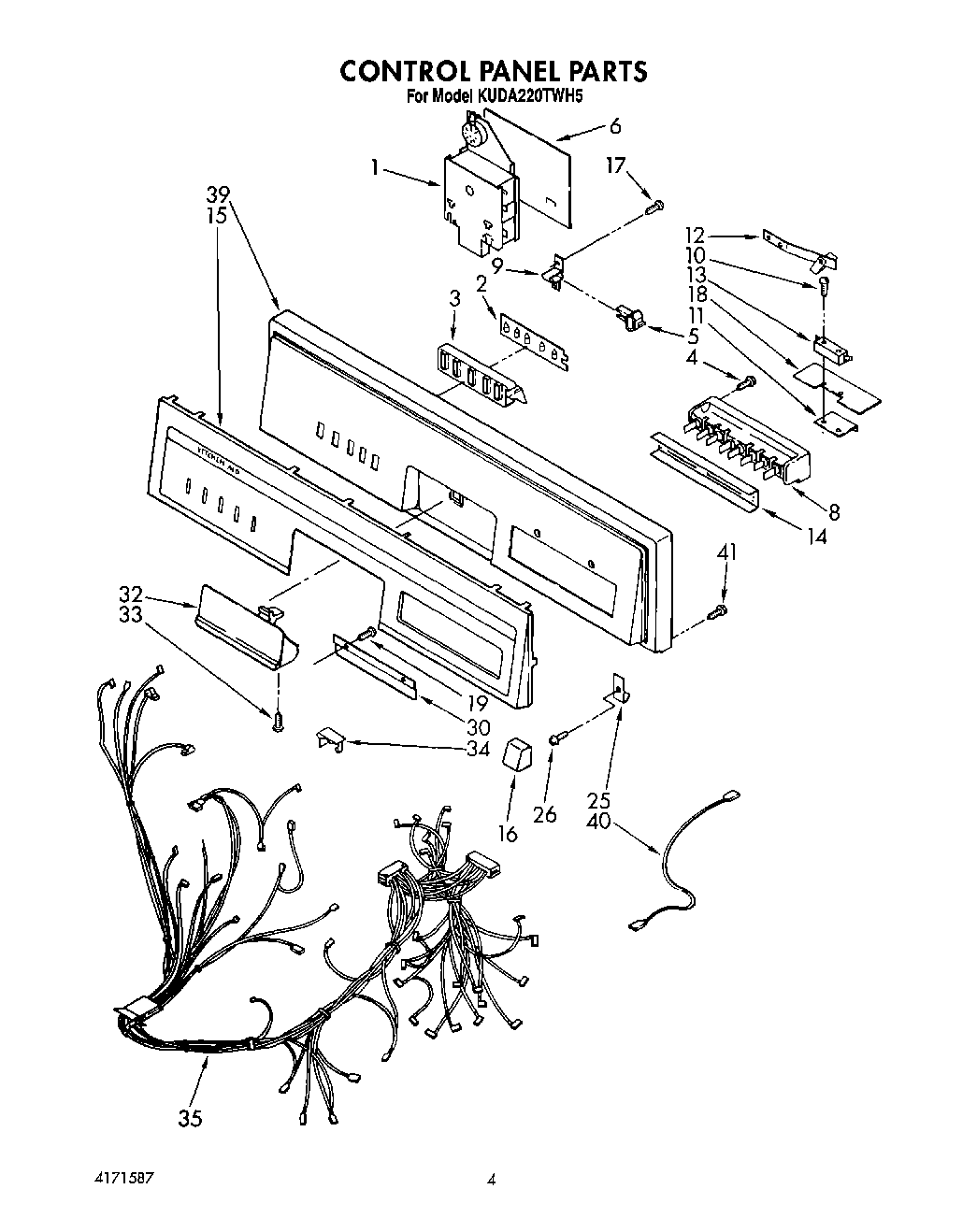

KUDA220TWH5 04 – CONTROL PANEL, LIT/OPTIONAL

KUDA220TWH5 04 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDA220TWH5 04 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4171369
285006 Whirlpool Spray
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Adjustable Kickboard Kit
White (R.H.)
Almond (R.H.)
White (L.H.)
Almond (L.H.)
Seal, Air Inlet
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT4171206
WPL LIT4171210
WPL LIT9740075
WPL 9741087
WPL LIT4171587
WPL 799832
350942 Whirlpool Spray Paint
WPL 72112
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Platinum (Uncut)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
1Timer Assembly (115 V., 60 Hz.)
2Board, Light
3Light Cover
4Screw, 6-32 X 3/8
5Spring, Switch
6Barrier, Timer
8Switch, Program
9Guide, Cancel Spring
10W11596033 Whirlpool Microwave Screw
11Bracket, Door Switch
12Spring, Interlock
13Switch, Interlock
14Bracket, Program Switch
15Insert, Control Panel (Almond)
15Insert, Control Panel (White)
16Pushbutton (8)
17WP488921 Whirlpool Refrigerator Screw
18Insulator, Door Switch
19Screw
25Clip, Grounding (Front Panel)
26SCREW
30Bracket, Support
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35Wiring Harness (Main)
35WPL 4159349
39Control Panel (Pushnut, Membrane)
39Control Panel (Almond (Includes Item 15))
39Control Panel (White)
40Lead, Program Switch
41Screw
