KUDA22ST0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

KUDA22ST0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

KUDA22ST0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT4171370
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
675679 Whirlpool Dishwasher White Tip Tines
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
W10841140 Whirlpool Dishwasher Adhesive
WPL LIT4171206
WPL LIT9740075
WPL LIT4171410
WPL LIT4171365
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Leveler (Thinner)
Almond (Uncut)
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White

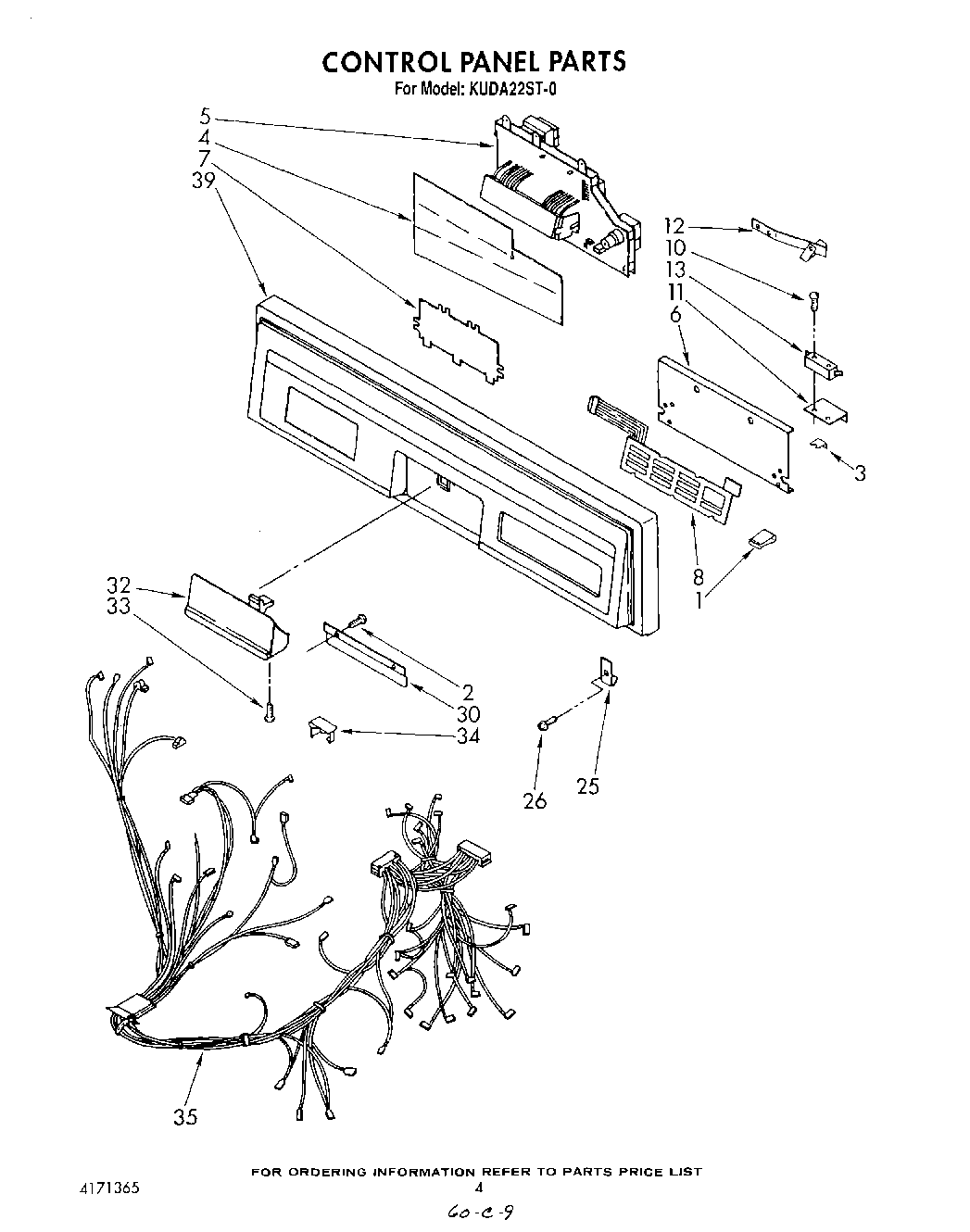

1Clip, Grounding
2Screw
3Spacer, Interlock Bracket
4Shield, Control
5Electronic Control
6Bracket, Membrane
7Display Lens
8Switch, Membrane
10Screw (2)
11Bracket, Door Switch
12Spring, Interlock
13Switch, Interlock
25Clip, Grounding (Front Panel)
26SCREW
30Bracket, Support
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35Wiring Harness (Main)
35WPL 4159349
39Control Panel (Pushnut, Membrane)
39Control Panel
