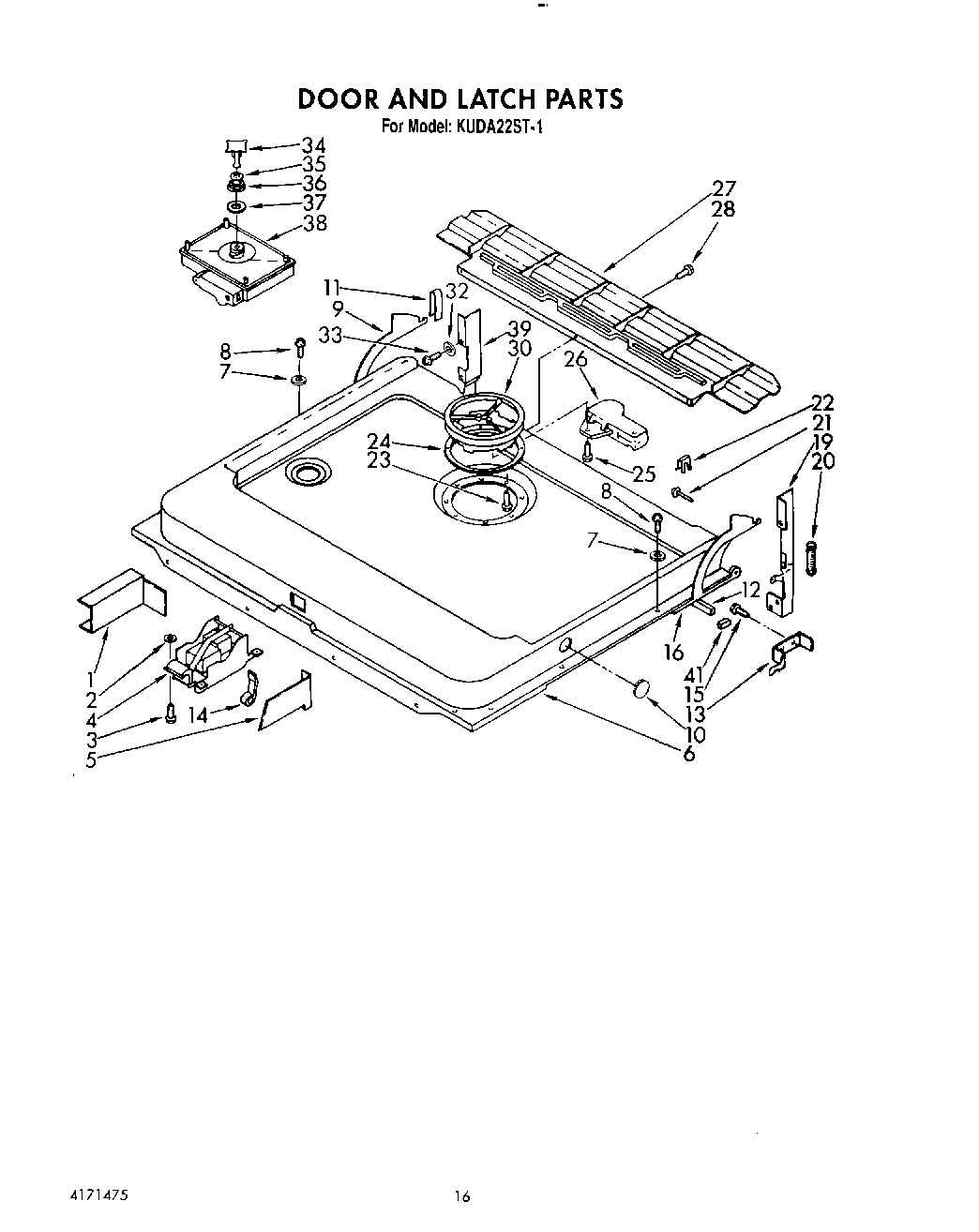

KUDA22ST1 13 – DOOR AND LATCH

KUDA22ST1 13 – DOOR AND LATCH

Written by

in

KUDA22ST1 13 – DOOR AND LATCH

Products

PositionProduct
1Cover, Wiring Harness
2Washer
3WP693304 Whirlpool Screw
4Latch Mechanism Assembly
5Insulation, Switch
6Inner Door Assembly
8Screw, 10-32 x 5/16
9Bracket, L.H. Door Stop
10Plug Button
11B aring, Door Stop Insert
12Vapor Barrier, Inner Door (Includes Item No. 41)
13Bracket, Spring Mounting (L.H.)
13Bracket, Spring Mounting (R.H.)
14Actuator, Door Latch
15WP3390631 Whirlpool Screw
16Bracket, R.H. Door Stop
19Bracket, R.H. Hinge
20WP4171383 Whirlpool Dishwasher Spring
21Pin, Hinge
22Clip, Hinge Pin Retaining
23Screw
24WP4171447 Whirlpool Dishwasher Seal
25SCREW
26WP4162568 Whirlpool Bi-metal Thermostat
27Baffle, Lower
30WP9740171 Whirlpool Dishwasher Dispenser
32Washer (Rubber)
33Screw, 10-32 X 1/2
34Fill Hole Plug Assembly (Includes Item 35)
35Washer, Fill Hole Plug
36Nut, Rinse Agent Dispenser
37Gasket, Rinse Agent Dispenser
38Rinse Agent Dispensing Valve
39Bracket, L.H. Hinge
41Vapor Barrier, Corner (2)
