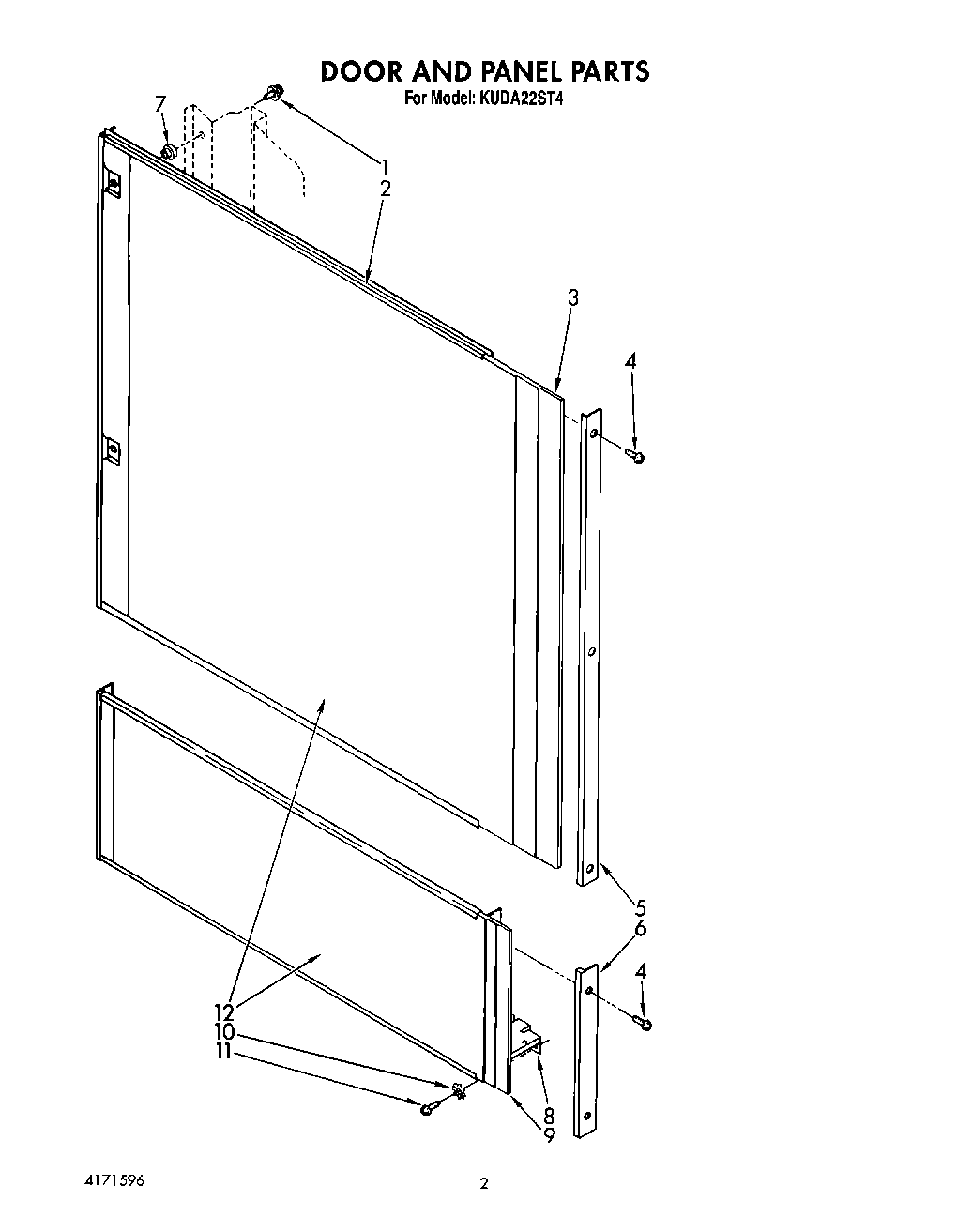

KUDA22ST4 02 – DOOR AND PANELadmin2025-04-26T12:57:43+00:00KUDA22ST4 02 – DOOR AND PANEL ProductsPositionProduct1Screw2Upper Mounting Panel Assembly (Includes Lower Trim)3Filler (Upper Panel)4Screw, 6 X 1/45Side Trim (Upper Panel)6Side Trim (Lower Panel)7Grommet, Panel8Lower Mounting Panel Assembly (Includes Upper & Lower Trim)9Filler (Lower Panel)10Lock Washer No.10 Ext. Shake- proof11WP693304 Whirlpool Screw12Panel Insert Kits (White/Black)12Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)12Panel Insert Kits (OPTIONAL KITS) (Almond/White)12Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)12Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
