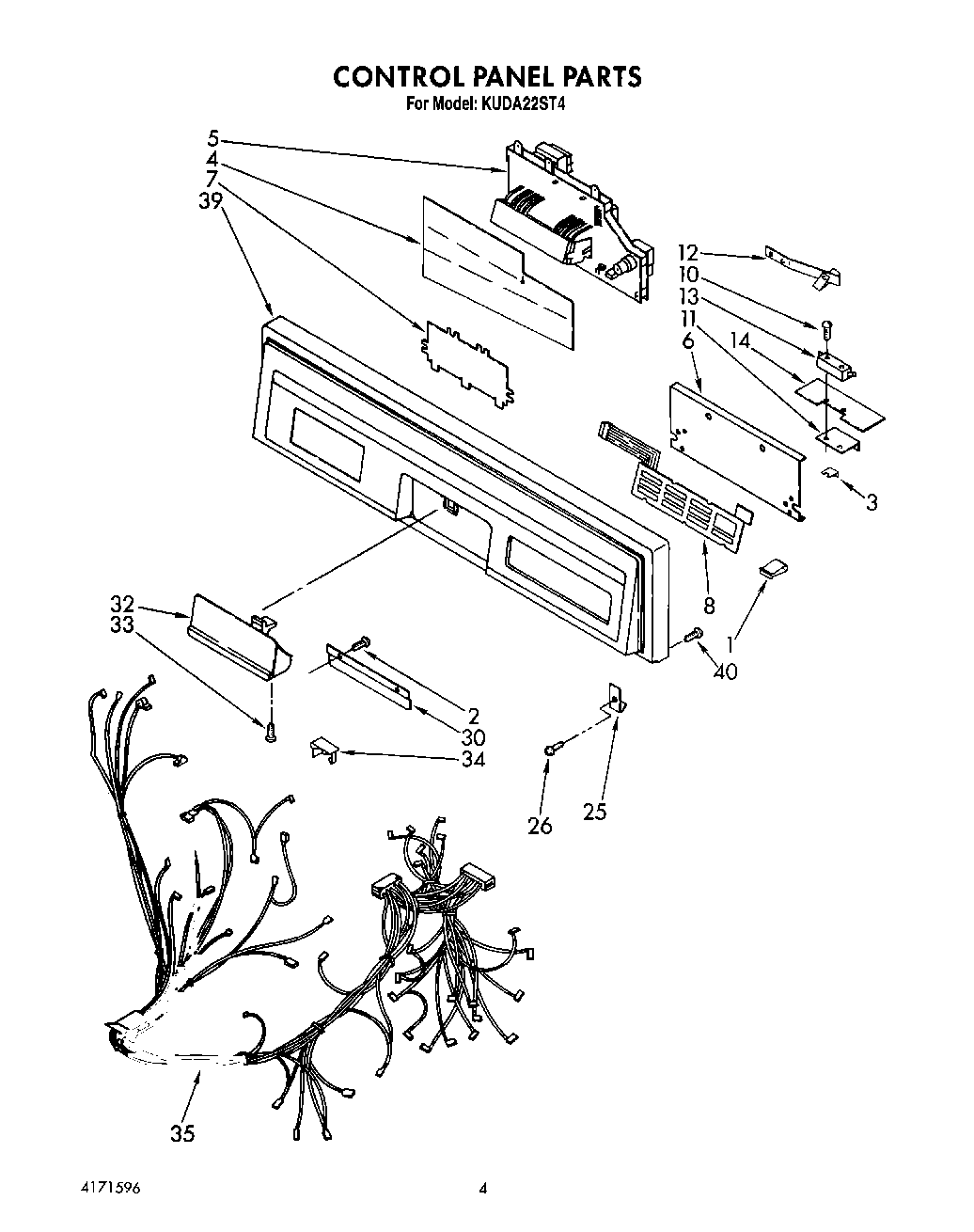

KUDA22ST4 04 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4171370
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL LIT9740075
	Wood Top Kit
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT4171206
	WPL 9741087
	WPL LIT4171596
	WPL LIT4171410
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Enamal, Toast (1 Qt. Uncut)
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Platinum (Uncut)
	Golden Harvest
1	Clip, Grounding
2	Screw
3	Spacer, Interlock Bracket
4	Shield, Control
5	Electronic Control
6	Bracket, Membrane
7	Display Lens
8	Switch, Membrane
10	W11596033 Whirlpool Microwave Screw
11	Bracket, Door Switch
12	Spring, Interlock
13	Switch, Interlock
14	Insulator, Door Switch
25	Clip, Grounding (Front Panel)
26	SCREW
30	Bracket, Support
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	Wiring Harness (Main)
35	WPL 4159349
39	Control Panel (Pushnut, Membrane)
39	Control Panel
40	Screw
