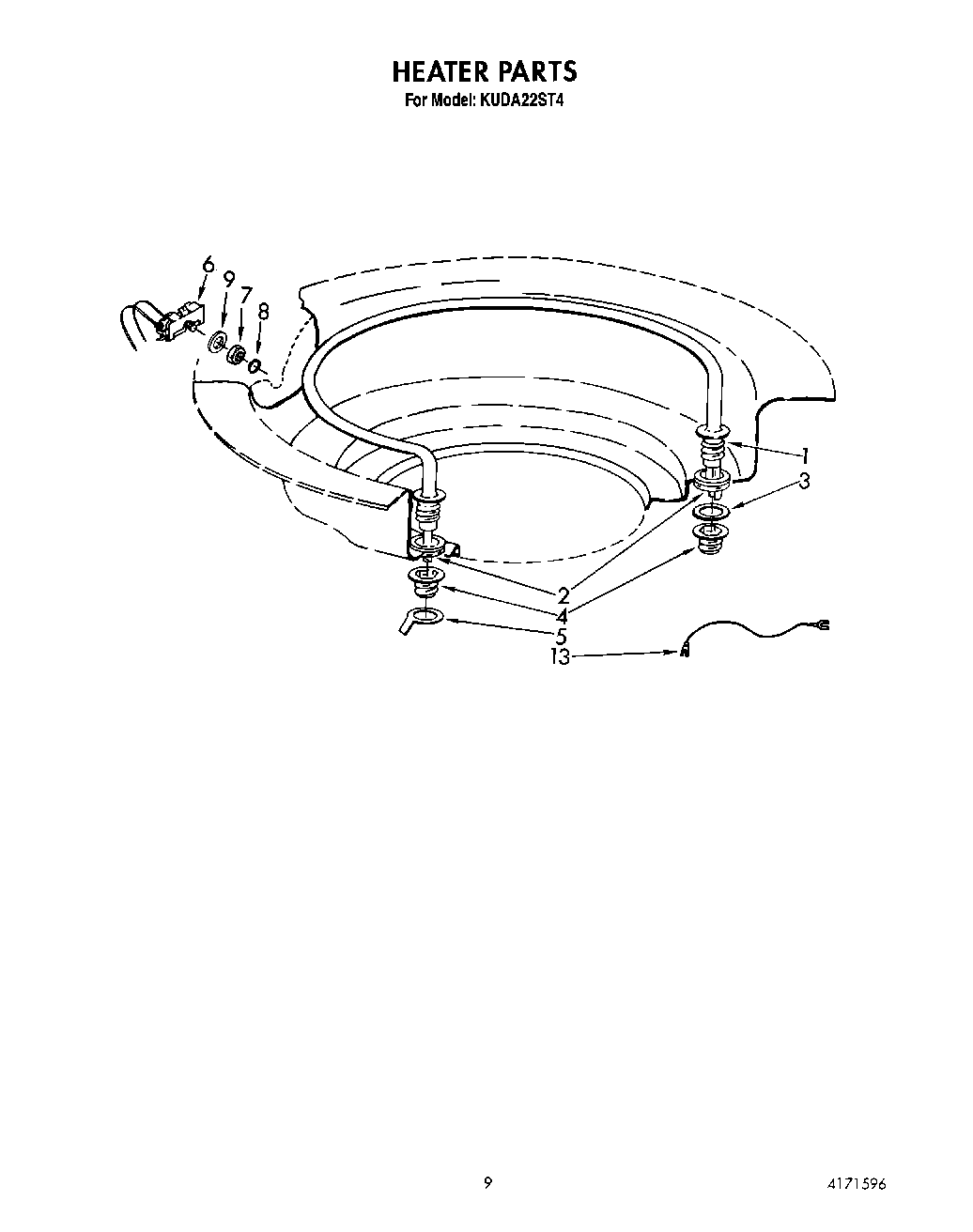

KUDA22ST4 07 – HEATER
Written by
in
KUDA22ST4 07 – HEATER
Products
Position
Product
1
Element, Heater
2
Grommet, Heater Element
3
Washer, Heater Element
4
Nut, Heater Element
5
Terminal, Ground
6
Protector Assembly
7
Nut, Heat Sensing
8
“O“ Ring
9
Gasket
13
Lead
←
