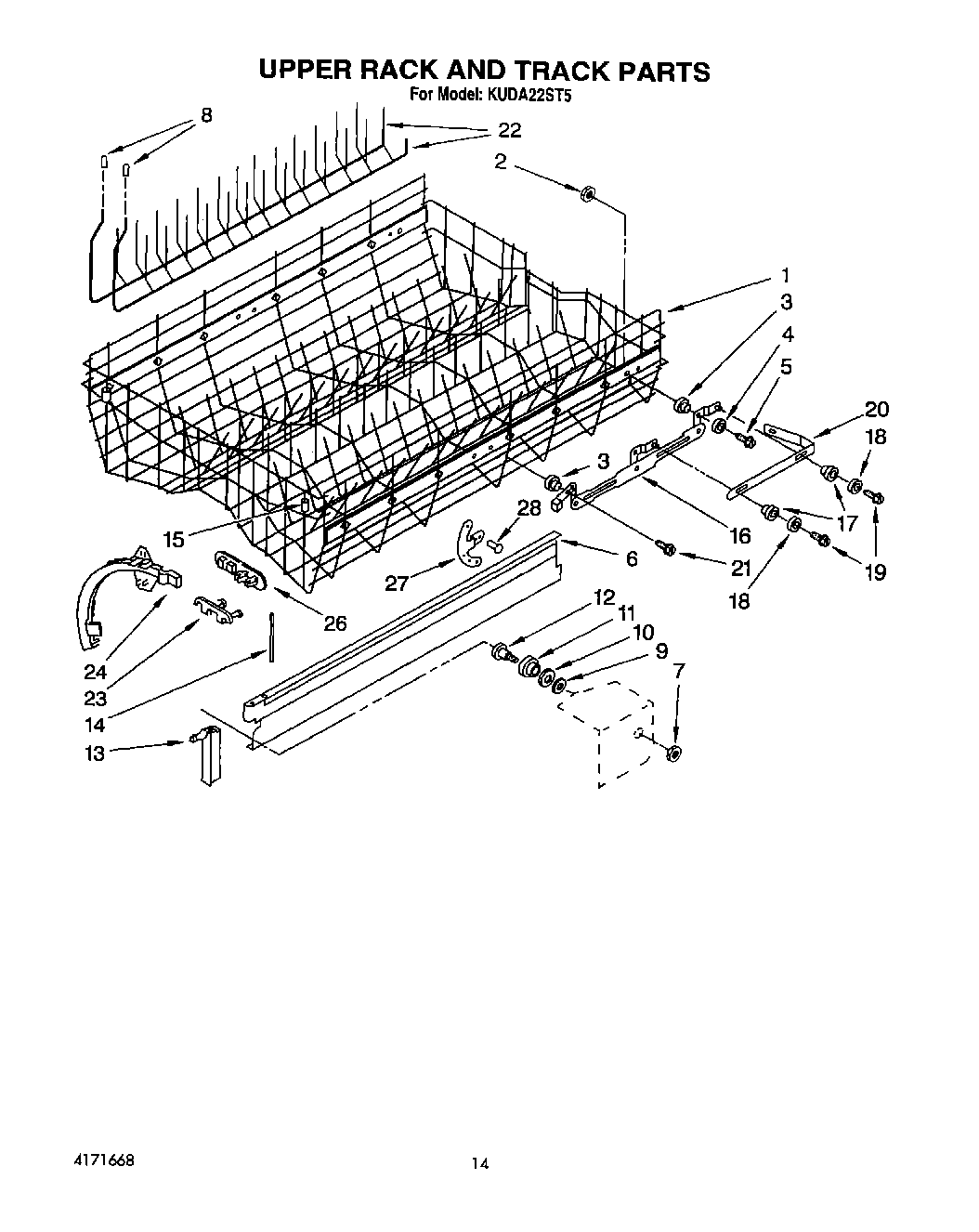

KUDA22ST5 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Complete Upper Rack Assembly (Includes Upper Sprayarm Parts)
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Washer
6	Track, Rack
7	Nut, Lock
8	Tip
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw. Track Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
16	Track, Adjustable (L.H.)
16	Track, Adjustable (R.H.)
17	Roller, Upper Rack Track
18	Washer
19	Screw, 8-32 X 1/4 (4)
20	Lift, Receiver (R.H.)
20	Lift, Receiver (L.H.)
21	Screw, 10-16 X 5/8
22	Partition
23	Clip, Partition (3)
24	Quadrant, Divider
24	Quadrant, Divider (R.H.)
26	Clip, Wash Arm Guard
27	Rackstop (L.H.)
27	Rackstop (R.H.)
28	Rivet
