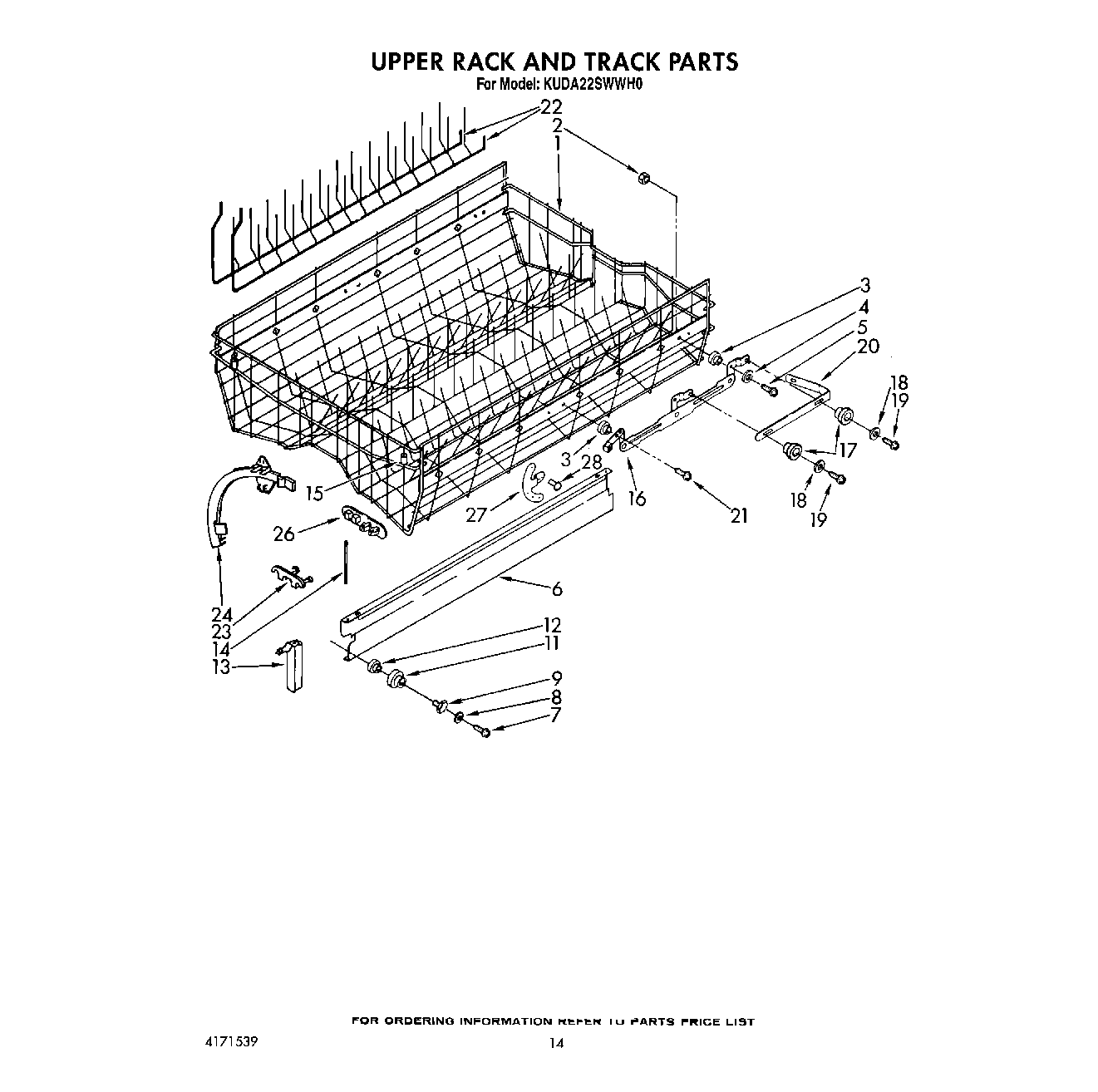

KUDA22SWWH0 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
1	xComplete Upper Rack Assembly (Includes Upper Sprayarm Parts)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Washer
6	Track, Rack
7	Screw, 10-16 x 3/8
8	Gasket, Rack Stud
9	Stud, Rack Roller
11	Roller, Rack Track
12	Bushing, Rack Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Rack Track
16	Track, Adjustable (R.H.)
16	Track, Adjustable (L.H.)
17	Roller, Upper Rack Track
18	Washer
19	Screw, 8-32 X 1/4 (4)
20	Lift, Receiver (L.H.)
20	Lift, Receiver (R.H.)
21	Screw, 10-16 X 5/8
22	Partition
23	Clip, Partition (3)
24	Quadrant, Divider
24	Quadrant, Divider (R.H.)
26	Clip, Wash Arm Guard
27	Rackstop (L.H.)
27	Rackstop (R.H.)
28	Rivet
