KUDA22SWWH2 07 – HEATER – Aparts

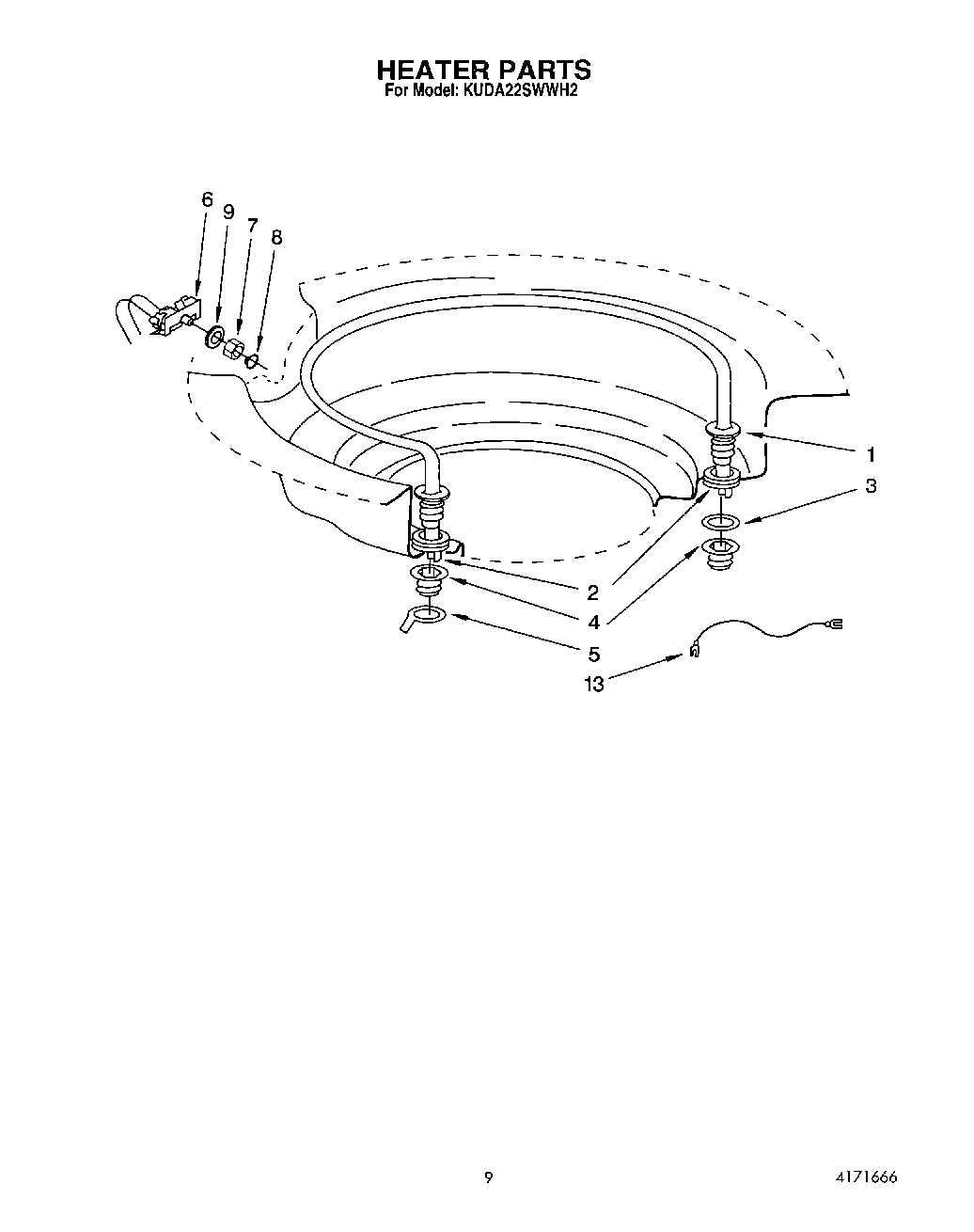

KUDA22SWWH2 07 – HEATER

Products

Position	Product
1	Element, Heater
2	Grommet, Heater Element
3	Washer, Heater Element
4	Nut, Heater Element
5	Terminal, Ground
6	Protector Assembly
7	Nut, Heat Sensing
8	``O`` Ring
9	Gasket
13	Lead
