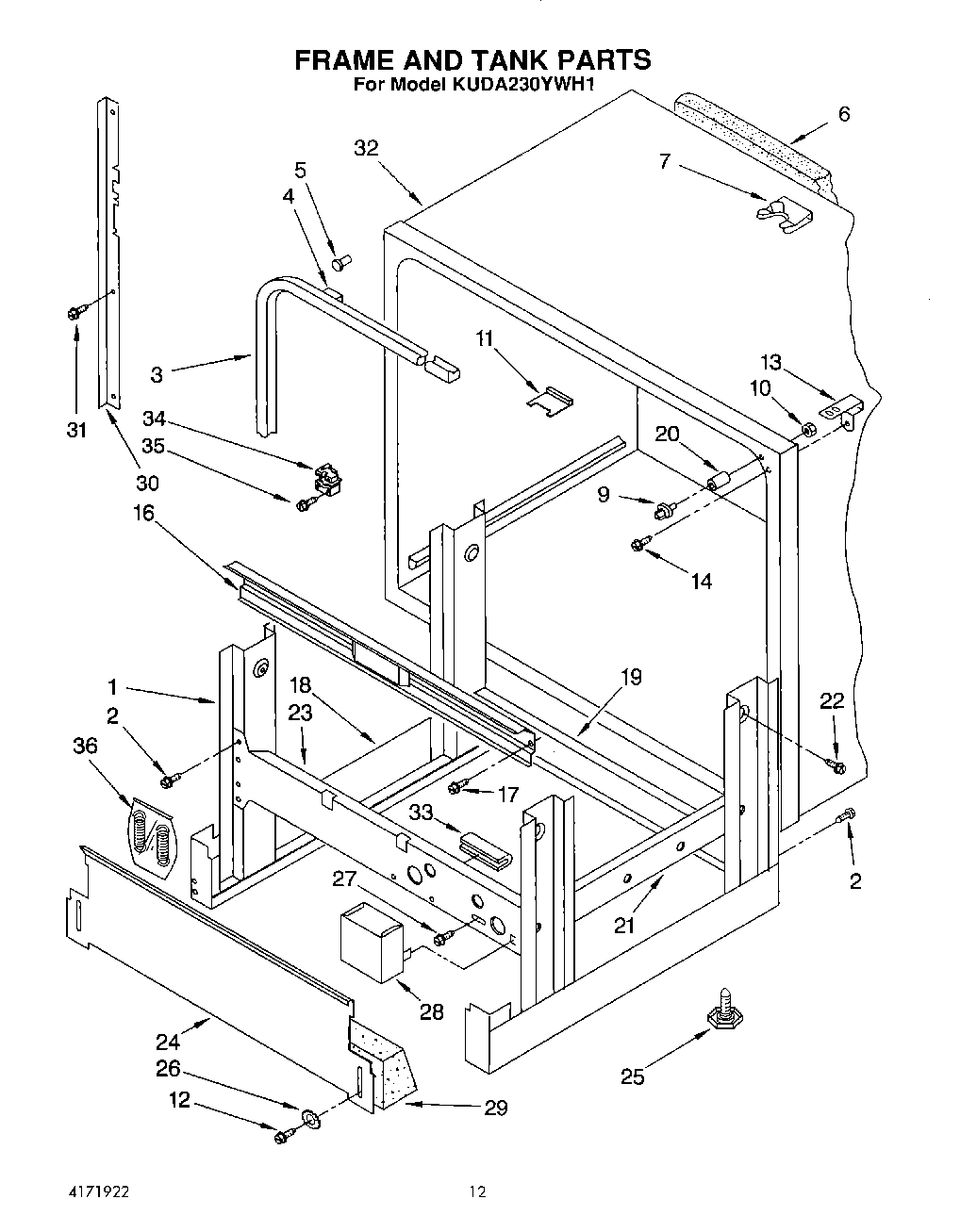

KUDA230YAL1 09 – FRAME AND TANK
Written by
in
KUDA230YAL1 09 – FRAME AND TANK
Products
Position
Product
1
Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2
Screw, 10-16 x 1/2
3
Door Seal Assembly (Includes Item 4)
4
Clip, Seal
5
Bumper, Door
6
Insulation, Tank (Back)
7
Clip, Retainer
9
Actuator, Interlock Switch
10
Lock Nut
11
Keeper, Latch
12
Screw
13
WP9741251 Whirlpool Mounting Bracket
14
Screw, 7-19 x 1/2
16
Support, Lower Panel
17
Screw, 10-32 X 1/2
18
Frame Assembly (L.H.)
19
Cross Frame, Rear
20
Sleeve, Actuator
21
Frame Assembly (R.H.)
22
Screw (2)
23
Cross Frame, Front
24
Kick Board ((Black))
25
Foot, Leveling (4)
26
Lock Washer No.10 Ext. Shake- proof
27
Screw
28
Enclosure, Elec. Supply
28
SCREW
29
Shield, Insulation
30
Trim, Tank (R.H.)
30
Trim, Tank (L.H.)
31
Screw, 10-24 X 1/2
32
Tank (Serviced Complete with Frame)
33
Protector, Edge
34
Relay, Start
35
Screw, 8-18 x 1-1/4
36
9741248 Whirlpool Dishwasher Spring Kit
←
