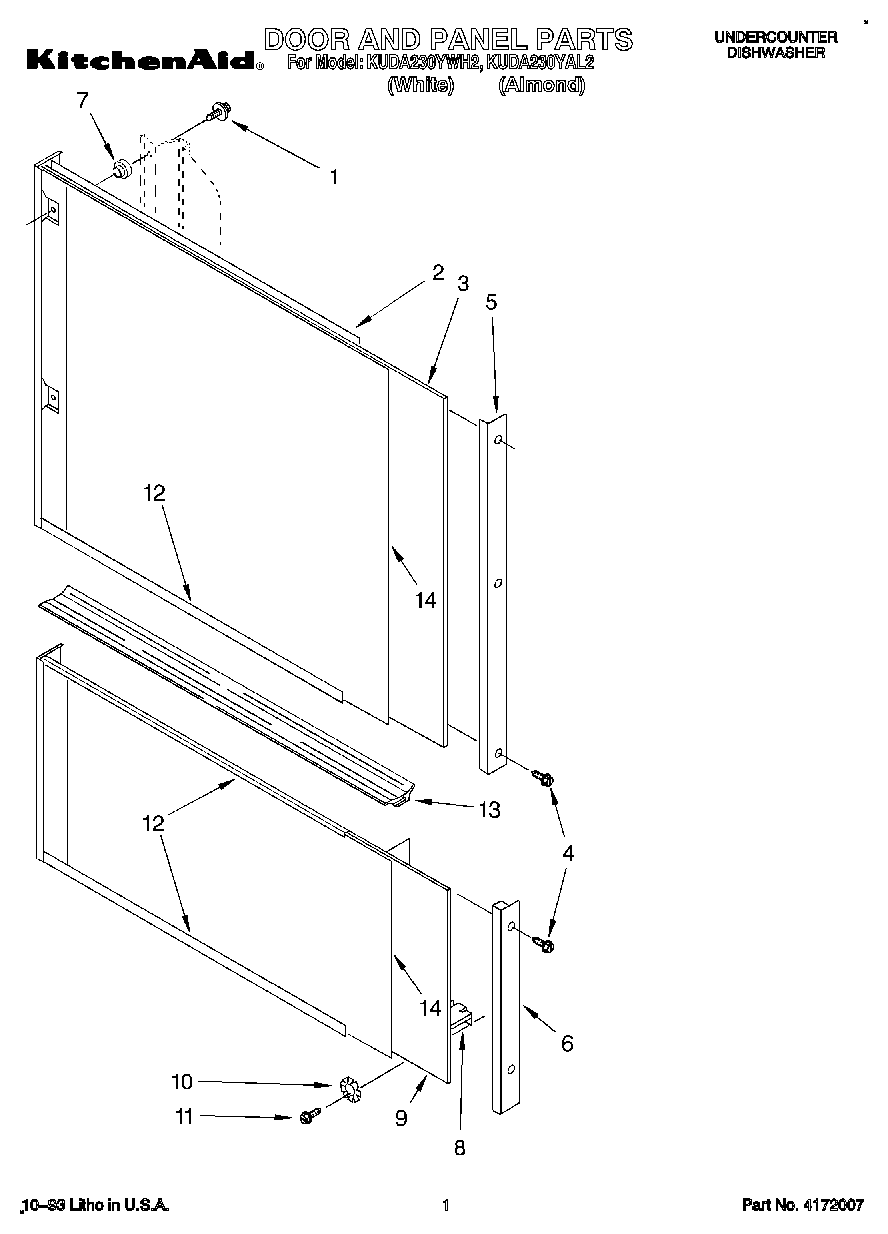

KUDA230YAL2 01 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Lower Trim)
3Filler (Upper Panel)
4Screw, 6 X 1/4
5Side Trim (Upper Panel)
6Side Trim (Lower Panel)
7Grommet, Panel
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim)
9Filler (Lower Panel)
10Lock Washer No.10 Ext. Shake- proof
11WP693304 Whirlpool Screw
12Trim, Panel (Upper & Lower)
13Channel, Evaporation
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Almond)
14Panel Insert Kits (White/Black)
14Panel Insert Kits (OPTIONAL KITS) (Almond/White)
14Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
14Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
