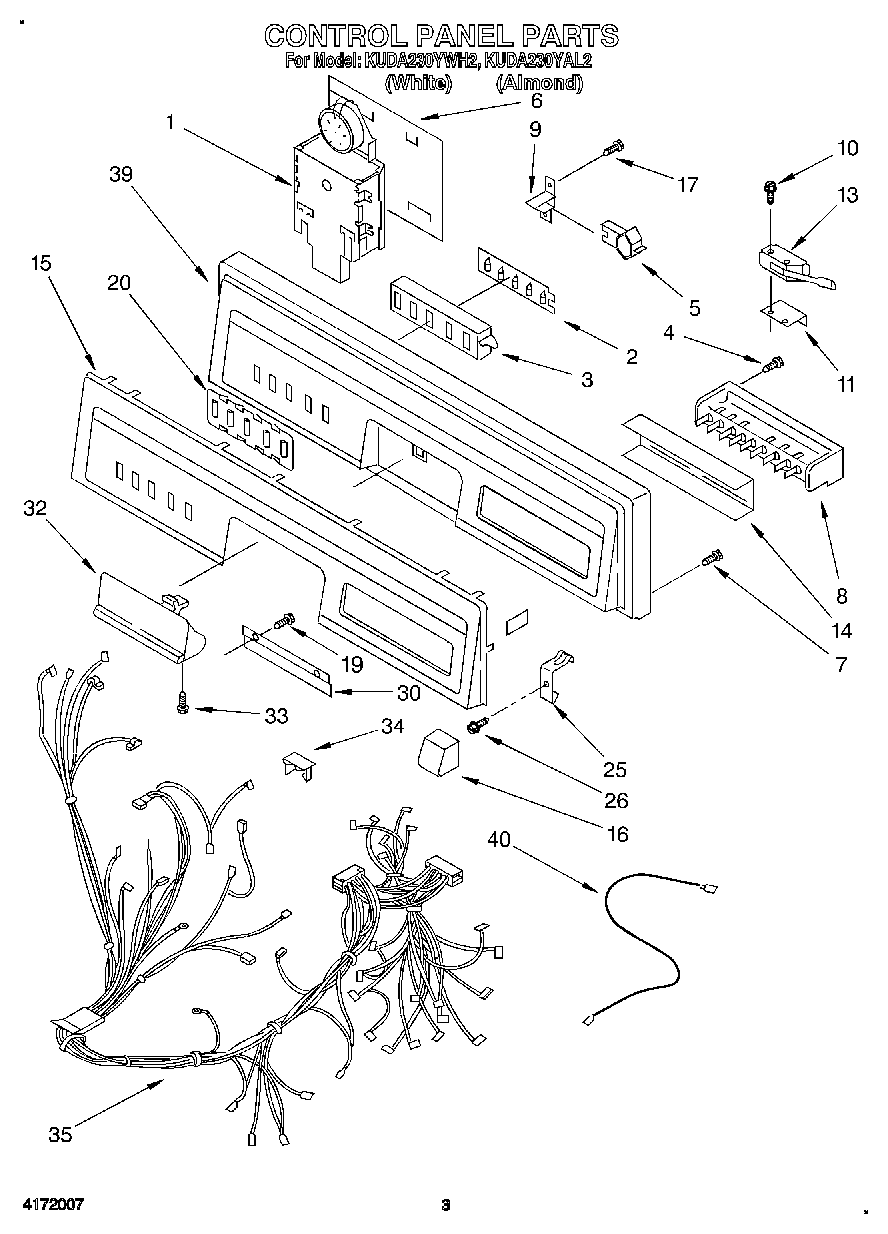

KUDA230YAL2 03 – CONTROL PANEL, LIT/OPTIONAL

KUDA230YAL2 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KUDA230YAL2 03 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT9741673
WPL 799832
285006 Whirlpool Spray
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Adjustable Kickboard Kit
White (R.H.)
Almond (R.H.)
White (L.H.)
Almond (L.H.)
WPL LIT9741531
Wood Top Kit
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT9741182
WPL LIT9741514
WPL 9741087
350942 Whirlpool Spray Paint
WPL 72112
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350956 Whirlpool Spray Assembly
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Toast
Platinum (Uncut)
Paint, Spray (13 Oz.) (Platinum)
1Timer Assembly
2Board, Light
3Light Cover
4Screw, 6-32 X 3/8
5Spring, Switch
6Barrier, Timer
7Screw
8Switch, Program
9Guide, Cancel Spring
10W11596033 Whirlpool Microwave Screw
11Bracket, Interlock Switch
13Switch, Interlock
14Bracket, Program Switch
15Insert, Control Panel (White)
15Insert, Control Panel (Black)
15Insert, Control Panel (Almond)
15Insert, Control Panel (Brushed Chrome)
16Pushbutton (8)
17WP488921 Whirlpool Refrigerator Screw
19Screw
20Lens, Light
25Clip, Grounding (Front Panel)
26SCREW
30Bracket, Support
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel (Includes 15 & 20) (White)
39Control Panel (Includes 15 & 20) (Almond)
39Control Panel (Pushnut, Membrane)
40Lead, Program Switch
