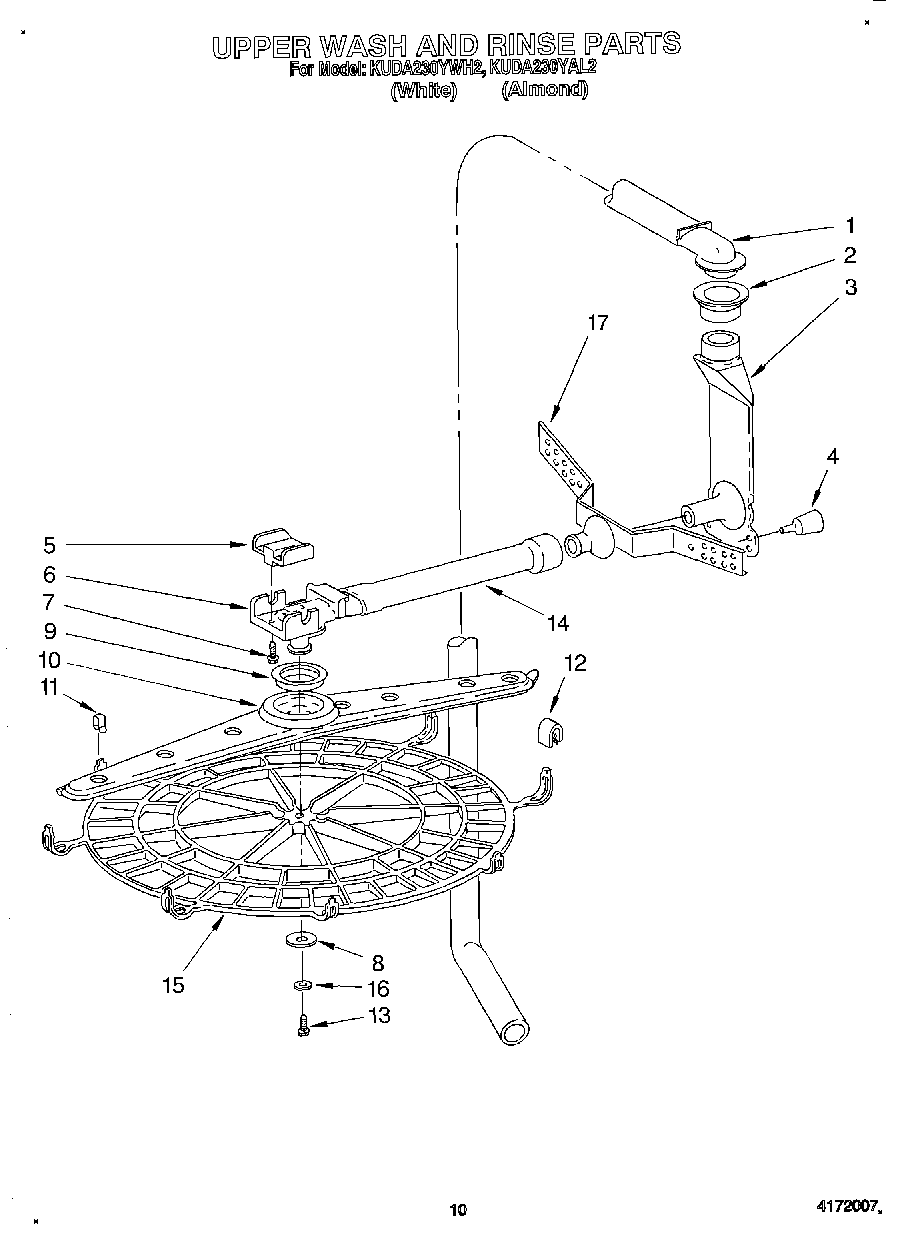

KUDA230YAL2 08 – UPPER WASH AND RINSE

Products

PositionProduct
1Tube & Connector Assembly
2Connector, Vertical Conduit
3Conduit, Vertical
4Retainer, Conduit
5Retainer, Manifold
6Manifold, Upper Arm
8Bearing, Arm (Bottom)
9Bearing, Arm (Top)
10Wash/Rinse Arm Assembly
11Clip, Arm Guard
12Clip, Wash Arm Guard
13Screw
14Tube (Manifold to Receiver)
15Guard, Arm
16Washer
17Arm, Receiver
