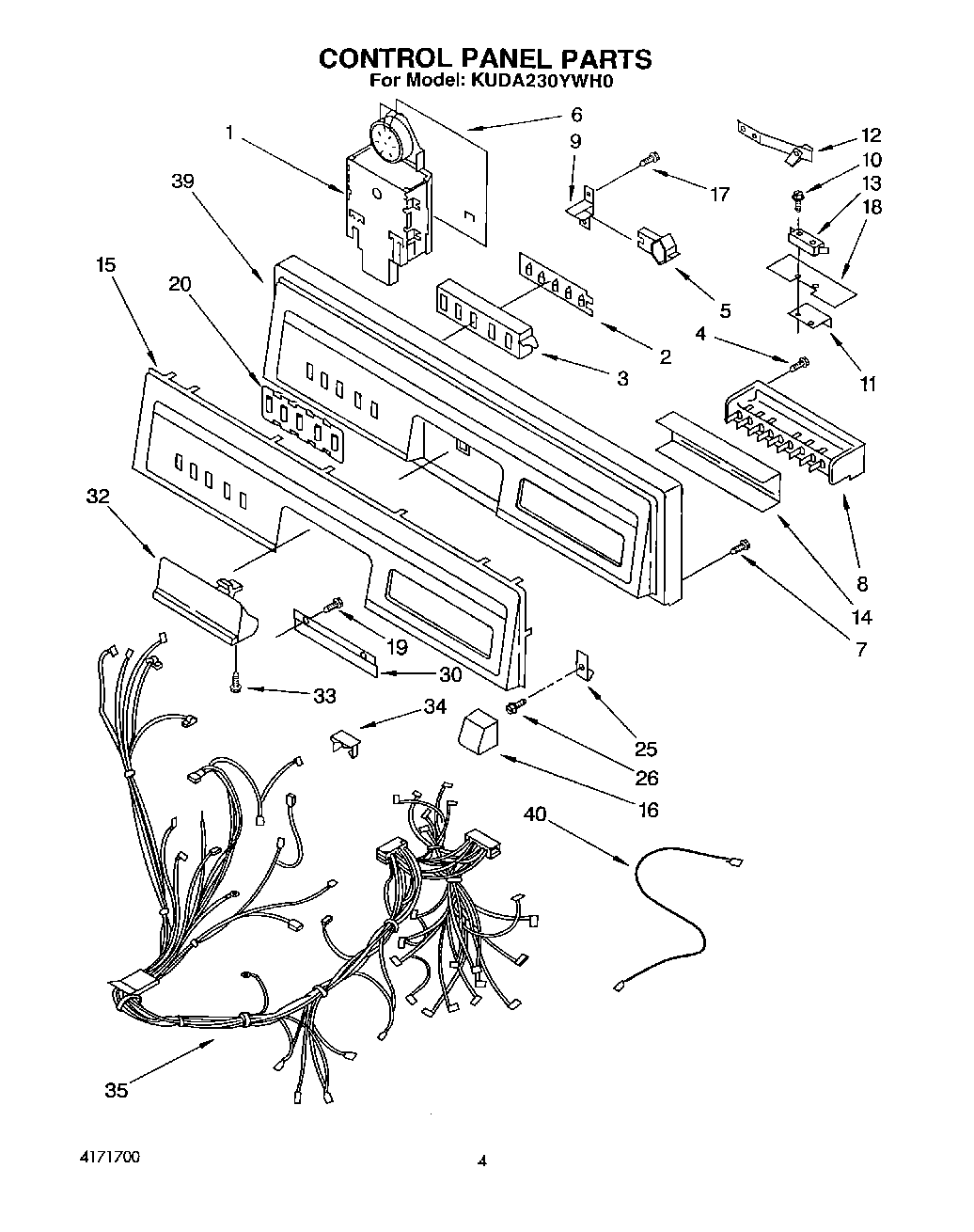

KUDA230YWH0 04 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:56:40+00:00KUDA230YWH0 04 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT4171700 |
| 285006 Whirlpool Spray |
| W10840471 Whirlpool Dishwasher Touch Up |
| Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| Adjustable Kickboard Kit |
| White (R.H.) |
| Almond (R.H.) |
| White (L.H.) |
| Almond (L.H.) |
| Wood Top Kit |
| Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation) |
| WPL LIT9741182 |
| WPL LIT9741382 |
| WPL 9741087 |
| WPL LIT9741183 |
| WPL LIT9741221 |
| WPL 799832 |
| 350942 Whirlpool Spray Paint |
| WPL 72112 |
| Leveler (Thinner) |
| Almond (Uncut) |
| WP72107 Whirlpool Touchup |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 72113 Whirlpool Touch-Up Paint |
| Golden Harvest |
| Golden Harvest (Uncut) |
| Toast |
| Platinum (Uncut) |
| 350956 Whirlpool Spray Assembly |
| 350930 Whirlpool White Spray Paint |
| Enamal, Toast (1 Qt. Uncut) |
| Paint, Spray (13 Oz.) (Platinum) |
| 799344 Whirlpool Refrigerator Paint |
| 1 | Timer Assembly (115 V., 60 Hz.) |
| 2 | Board, Light |
| 3 | Light Cover |
| 4 | Screw, 6-32 X 3/8 |
| 5 | Spring, Switch |
| 6 | Barrier, Timer |
| 7 | Screw |
| 8 | Switch, Program |
| 9 | Guide, Cancel Spring |
| 10 | W11596033 Whirlpool Microwave Screw |
| 11 | Bracket, Door Switch |
| 12 | Spring, Interlock |
| 13 | Switch, Interlock |
| 14 | Bracket, Program Switch |
| 15 | Insert, Control Panel (Brushed Chrome) |
| 15 | Insert, Control Panel (Black) |
| 15 | Insert, Control Panel (Almond) |
| 15 | Insert, Control Panel (White) |
| 16 | Pushbutton (8) |
| 17 | WP488921 Whirlpool Refrigerator Screw |
| 18 | Insulator, Door Switch |
| 19 | Screw |
| 20 | Lens, Light |
| 25 | Clip, Grounding (Front Panel) |
| 26 | SCREW |
| 30 | Bracket, Support |
| 32 | Handle, Latch |
| 33 | Screw, 10-32 x 5/8 |
| 34 | Clip, Harness Guide |
| 35 | WPL 4159349 |
| 35 | Wiring Harness (Main) |
| 39 | Control Panel (Includes 15 & 20) (White) |
| 39 | Control Panel (Includes 15 & 20) (Almond) |
| 39 | Control Panel (Pushnut, Membrane) |
| 40 | Lead, Program Switch |
