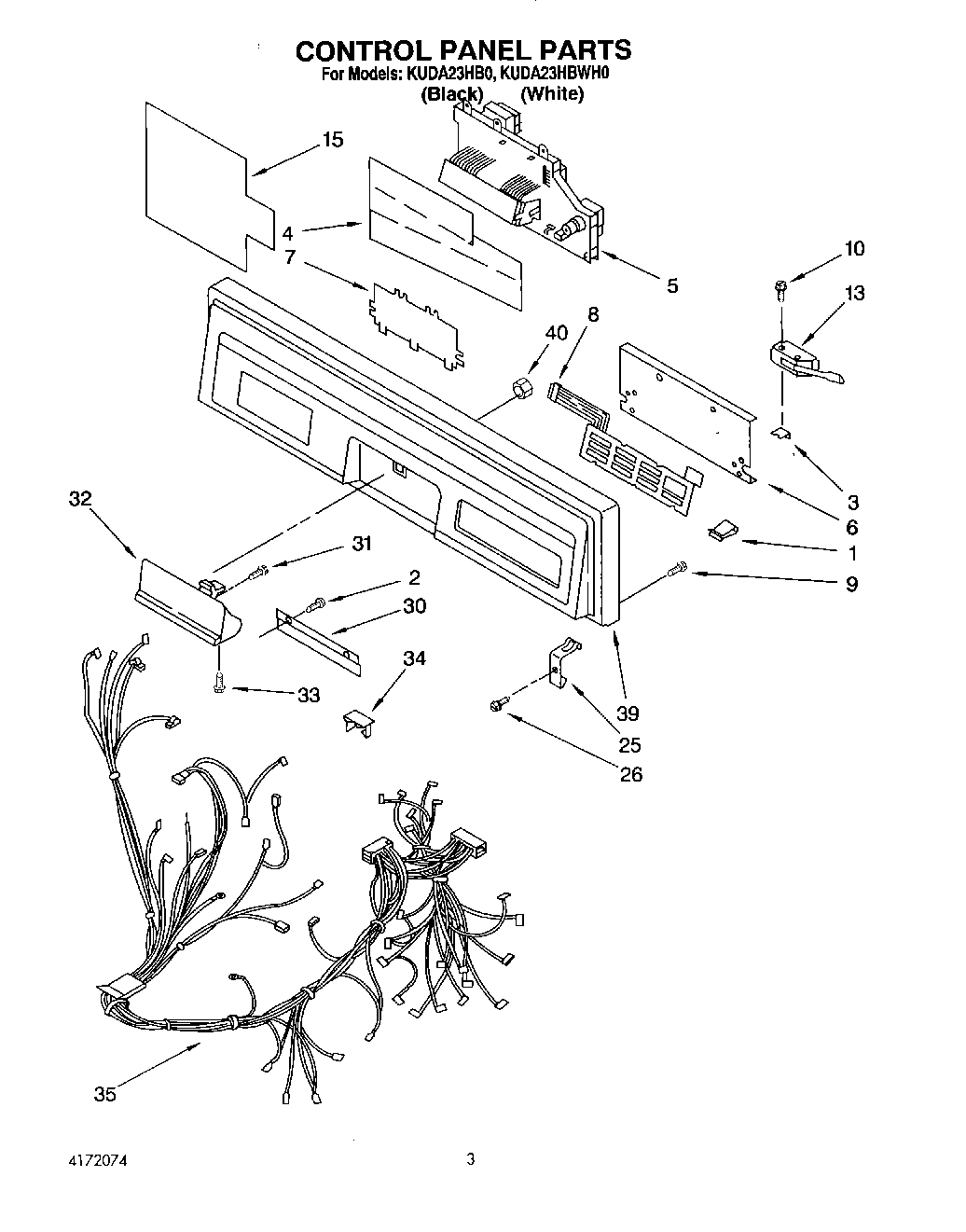

KUDA23HBWH0 03 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T12:58:51+00:00KUDA23HBWH0 03 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT9742005 |
| W10840471 Whirlpool Dishwasher Touch Up |
| Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks) |
| Adjustable Kickboard Kit |
| White (R.H.) |
| Almond (R.H.) |
| White (L.H.) |
| Almond (L.H.) |
| WPL 9741358 |
| WPL LIT9742114 |
| WPL LIT9742141 |
| Wood Top Kit |
| Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation) |
| WPL LIT9741532 |
| 285006 Whirlpool Spray |
| WPL 799832 |
| WPL 72112 |
| 350930 Whirlpool White Spray Paint |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| Almond (Uncut) |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 72113 Whirlpool Touch-Up Paint |
| Golden Harvest |
| Platinum (Uncut) |
| Enamal, Toast (1 Qt. Uncut) |
| Paint, Spray (13 Oz.) (Platinum) |
| Toast |
| Golden Harvest (Uncut) |
| 1 | Clip, Grounding |
| 2 | Screw |
| 3 | Spacer, Interlock Bracket |
| 4 | Shield, Control |
| 5 | Electronic Control |
| 6 | Bracket, Membrane |
| 7 | Display Lens |
| 8 | Switch, Membrane |
| 8 | Switch, Membrane |
| 9 | Screw |
| 10 | W11596033 Whirlpool Microwave Screw |
| 13 | Switch, Interlock |
| 15 | Barrier, Electric Insulation |
| 25 | Clip, Grounding (Front Panel) |
| 26 | Screw, 8-18 x 1/2 |
| 30 | Bracket, Support |
| 31 | Screw, 8-32 x 1/2 (Black Model) |
| 32 | Handle, Latch |
| 33 | Screw, 10-32 x 5/8 |
| 34 | Clip, Harness Guide |
| 35 | WPL 4159349 |
| 35 | Wiring Harness (Main) |
| 39 | Control Panel (Incl. Item 40) |
| 39 | Control Panel |
| 40 | Pushnut, Membrane |
