KUDA23HYWH0 03 – CONTROL PANEL, LITERATURE AND OPTIONAL

KUDA23HYWH0 03 – CONTROL PANEL, LITERATURE AND OPTIONAL

Written by

in

KUDA23HYWH0 03 – CONTROL PANEL, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL 9741131
285006 Whirlpool Spray
WP3367052 Whirlpool Hose Clamp
W10840471 Whirlpool Dishwasher Touch Up
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Adjustable Kickboard Kit
White (R.H.)
Almond (R.H.)
White (L.H.)
Almond (L.H.)
WPL LIT9741531
Wood Top Kit
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
WPL LIT9741182
WPL LIT9741514
WPL LIT9741673
WPL 799832
350942 Whirlpool Spray Paint
WPL 72112
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Platinum (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast

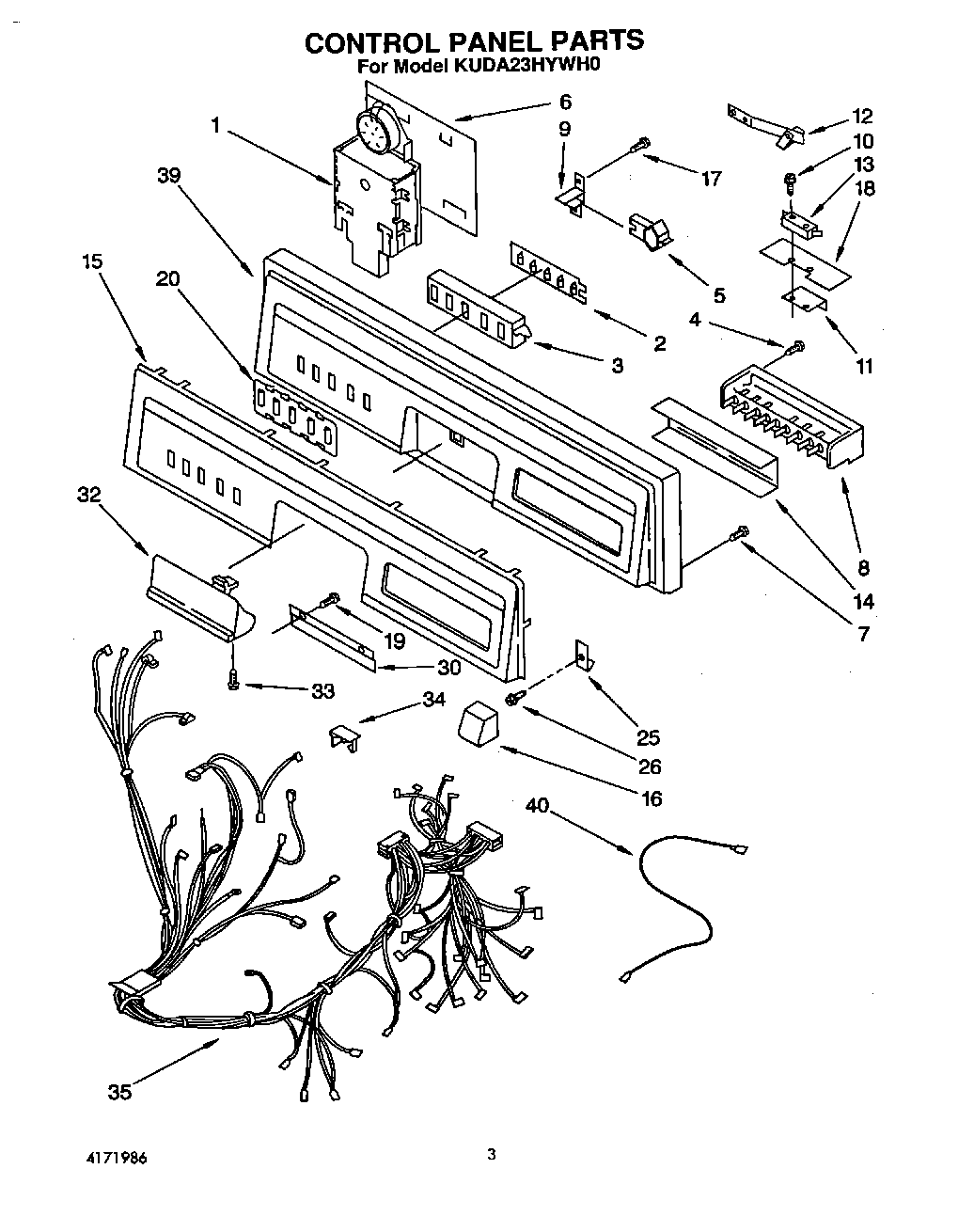

1Timer Assembly
2Board, Light
3Light Cover
4Screw, 6-32 X 3/8
5Spring, Switch
6Barrier, Timer
7Screw
8Switch, Program
9Guide, Cancel Spring
10W11596033 Whirlpool Microwave Screw
11Bracket, Door Switch
12Spring, Interlock
13Switch, Interlock
14Bracket, Program Switch
15Insert, Control Panel (Brushed Chrome)
15Insert, Control Panel (Black)
15Insert, Control Panel (White)
15Insert, Control Panel (Almond)
16Pushbutton (8)
17WP488921 Whirlpool Refrigerator Screw
18Insulator, Door Switch
19Screw
20Lens, Light
25Clip, Grounding (Front Panel)
26SCREW
30Bracket, Support
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel (Includes 15 & 20) (White)
39Control Panel (Includes 15 & 20) (Almond)
39Control Panel (Pushnut, Membrane)
40Lead, Program Switch
