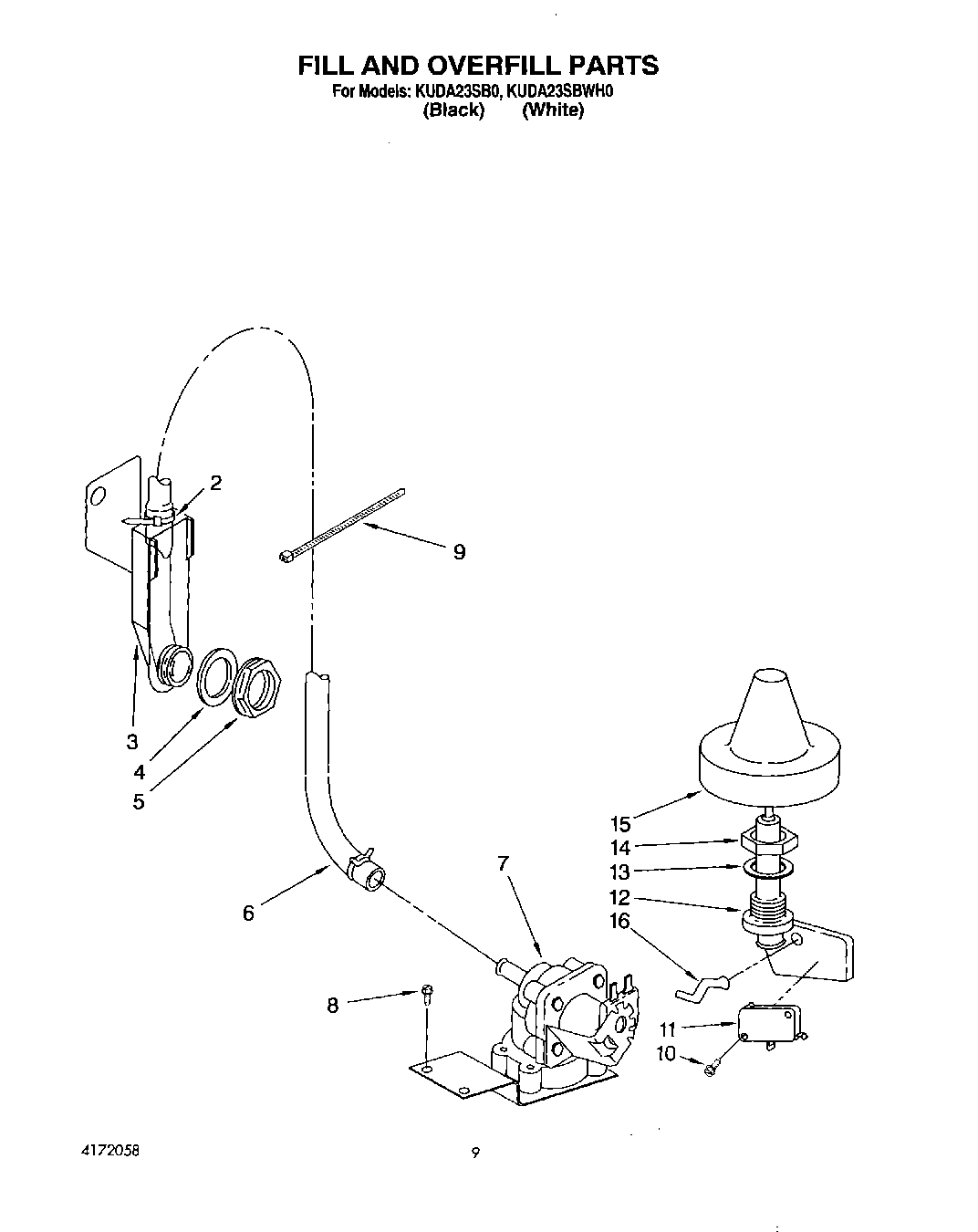

KUDA23SB0 07 – FILL AND OVERFILLadmin2025-04-26T12:57:16+00:00KUDA23SB0 07 – FILL AND OVERFILL ProductsPositionProduct2Clamp, Hose3Water Inlet and Hose Assembly4Gasket, Rinse Agent Dispenser5Nut, Rinse Agent Dispenser6Clamp, Hose7Fill Valve Assembly8Screw, 10-16 X 3/89WPW10339879 Whirlpool Wire Tie10Screw11WP9743413 Whirlpool Dishwasher Switch12W10207863 Whirlpool Dishwasher Switch13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket14Nut, Standpipe15Float & Retainer Assembly16Lever, Overflow Switch
