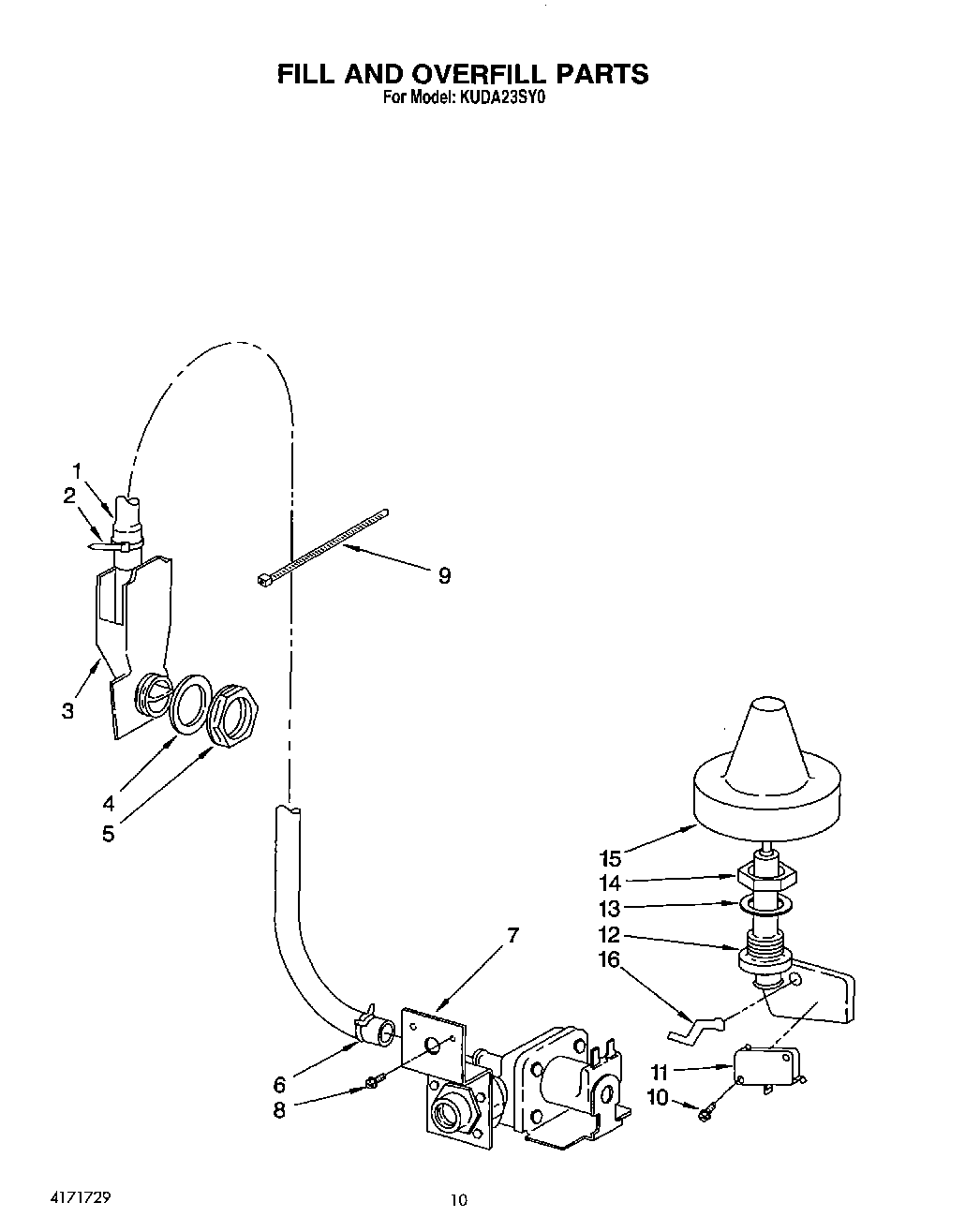

KUDA23SY0 08 – FILL AND OVERFILLadmin2025-04-26T12:55:59+00:00KUDA23SY0 08 – FILL AND OVERFILL ProductsPositionProduct1Hose, Flexible (Fill Valve to Air Gap)2Clamp, Hose3Air Gap, Fill Assembly (Includes Items 1 & 2)4Gasket, Rinse Agent Dispenser5Nut, Rinse Agent Dispenser6Clamp, Hose7WP4171000 Whirlpool Dishwasher Inlet Valve8Screw, 10-16 x 1/29WPW10339879 Whirlpool Wire Tie10Screw11WP9743413 Whirlpool Dishwasher Switch12W10207863 Whirlpool Dishwasher Switch13WP8531743 Whirlpool Dishwasher Float Switch Base Gasket14Nut, Standpipe15Float & Retainer Assembly16Lever, Overflow Switch
