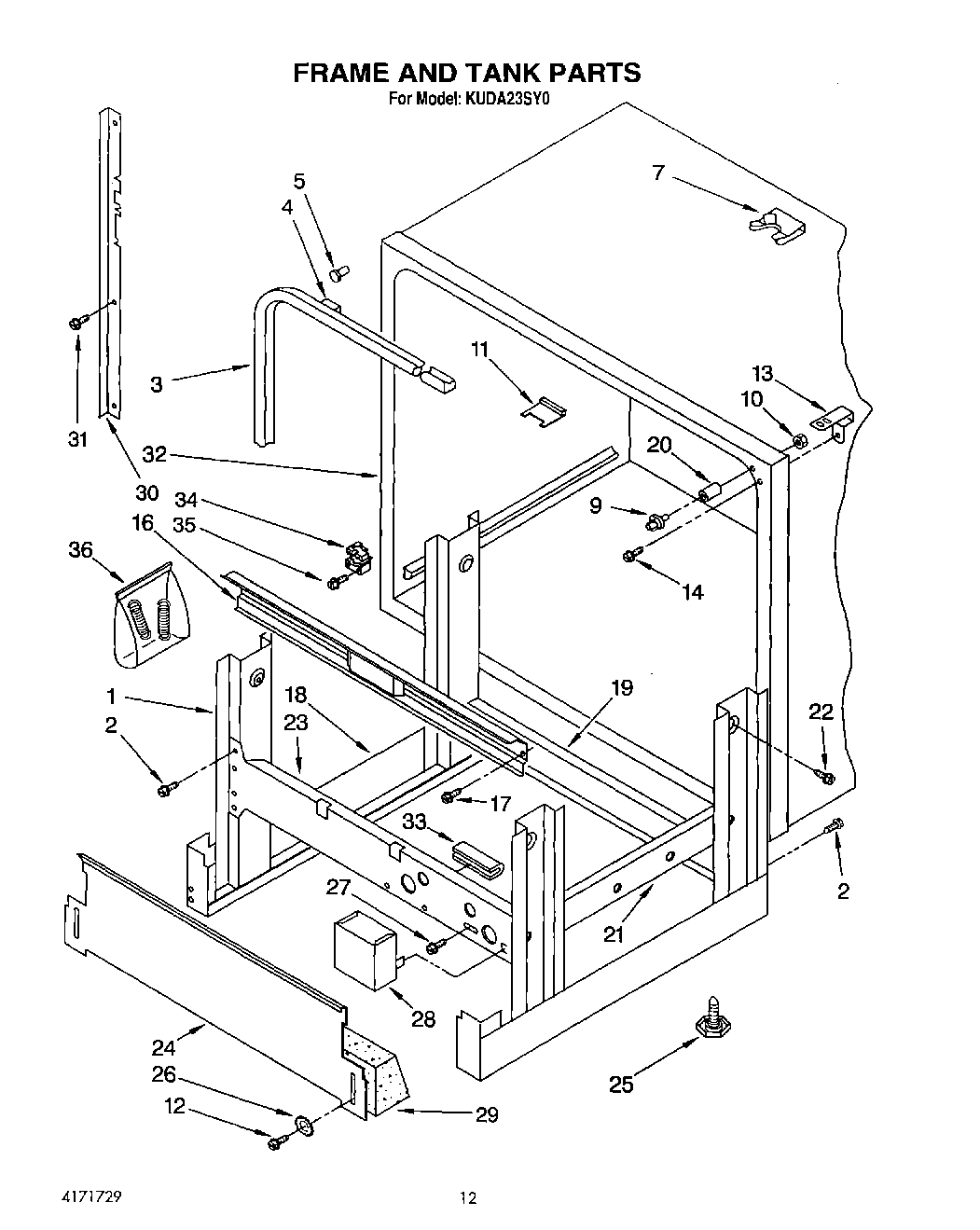

KUDA23SY0 10 – FRAME AND TANK

KUDA23SY0 10 – FRAME AND TANK

Written by

in

KUDA23SY0 10 – FRAME AND TANK

Products

PositionProduct
1Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2Screw, 10-16 x 1/2
3Door Seal Assembly (Includes Item 4)
4Clip, Seal
5Bumper, Door
7Clip, Retainer
9Actuator, Interlock Switch
10Lock Nut
11Keeper, Latch
12Screw, 10-16 x 3/8
13WP9741251 Whirlpool Mounting Bracket
14Screw, 7-19 x 1/2
16Support, Lower Panel
17Screw, 10-32 X 1/2
18Frame Assembly (L.H.)
19Cross Frame, Rear
20Sleeve, Actuator
21Frame Assembly (R.H.)
22Screw (2)
23Cross Frame, Rear
24Kick Board ((Black))
25Foot, Leveling (4)
26Lock Washer No.10 Ext. Shake- proof
27Screw
28Enclosure, Elec. Supply
28SCREW
29Shield, Insulation
30Trim, Tank (L.H.)
30Trim, Tank (R.H.)
31Screw, 10-24 X 1/2
32Tank (Serviced Complete with Frame)
33Protector, Edge
34Relay, Start
35Screw, 8-18 x 1-1/4
369741248 Whirlpool Dishwasher Spring Kit
