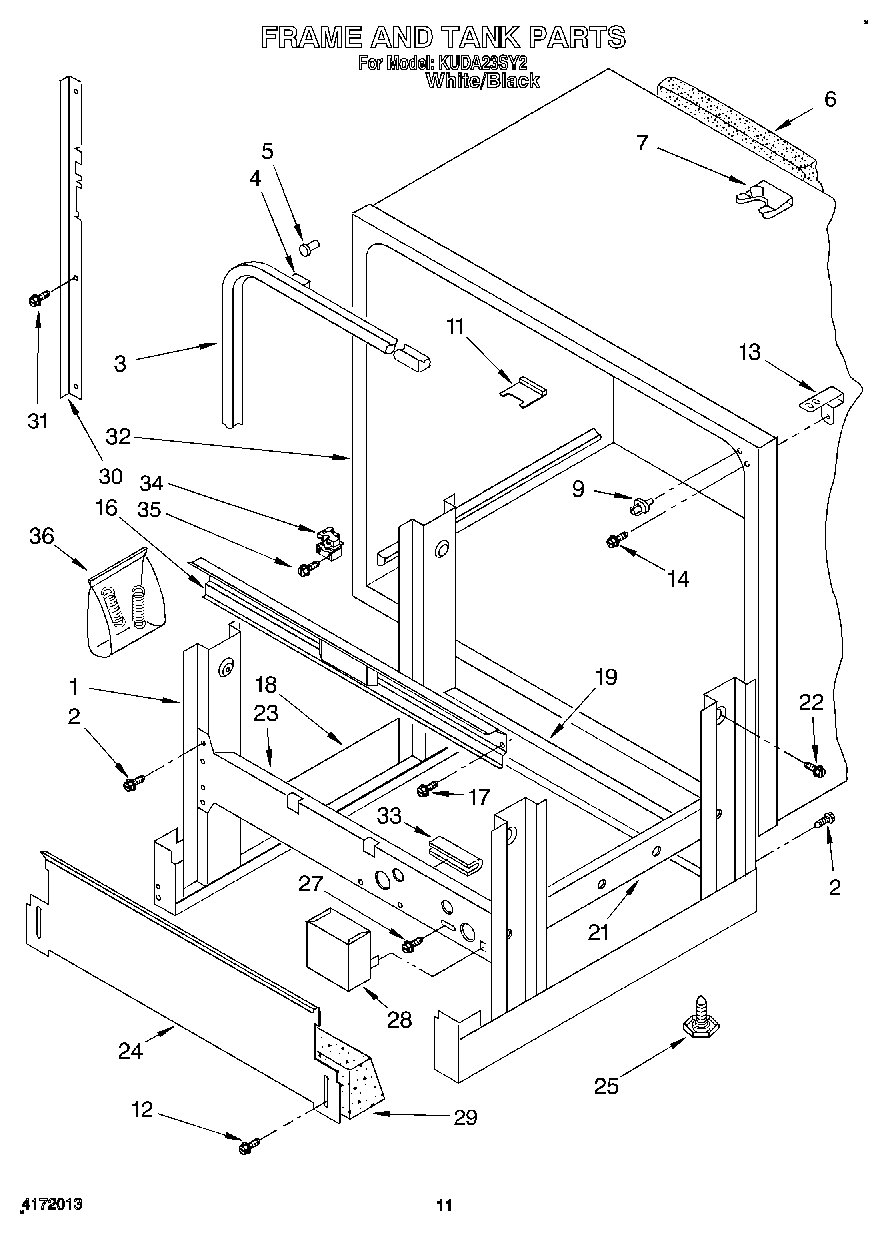

KUDA23SY2 09 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2	Screw, 10-16 x 1/2
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
6	Insulation, Tank (Back)
7	Clip, Retainer
9	Actuator, Interlock Switch
11	Keeper, Latch
12	Screw
13	WP9741251 Whirlpool Mounting Bracket
14	Screw, 7-19 x 1/2
16	Support, Lower Panel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
21	Frame Assembly (R.H.)
22	Screw, 1/4-20 x 1/2
23	Cross Frame, Rear
24	Kick Board ((Black))
25	Foot, Leveling (4)
27	Screw
28	SCREW
28	Enclosure, Elec. Supply
29	Shield, Insulation
30	Trim, Tank (L.H.)
30	Trim, Tank (R.H.)
31	Screw, 10-24 X 1/2
32	Tank (Serviced Complete with Frame)
33	Protector, Edge
34	Relay, Start
35	Screw, 8-18 x 1-1/4
36	9741248 Whirlpool Dishwasher Spring Kit
