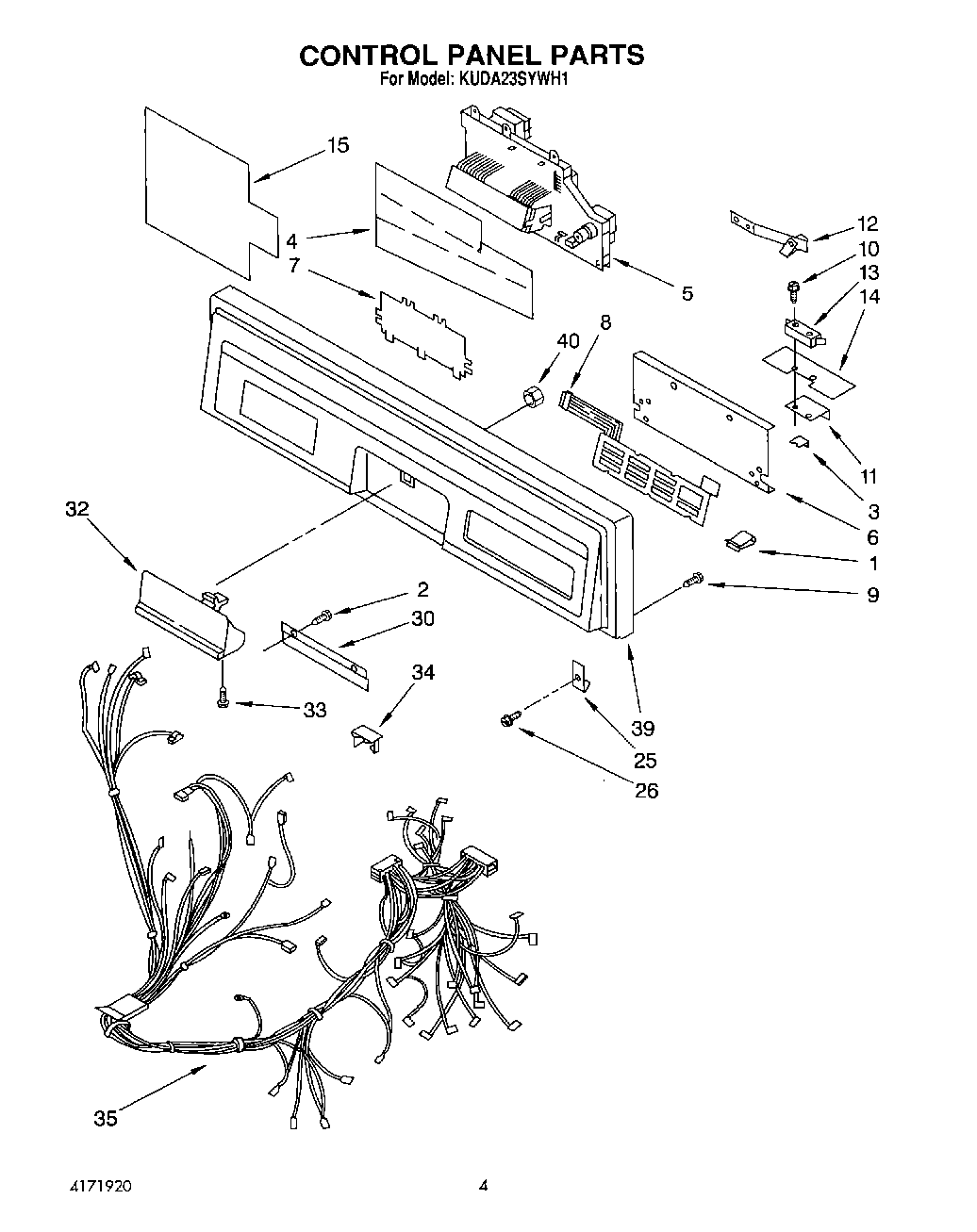

KUDA23SYWH1 03 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT9741532
	285006 Whirlpool Spray
	W10840471 Whirlpool Dishwasher Touch Up
	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
	Adjustable Kickboard Kit
	White (R.H.)
	Almond (R.H.)
	White (L.H.)
	Almond (L.H.)
	WPL LIT9741514
	Wood Top Kit
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	WPL LIT9741386
	WPL 9741087
	WPL LIT9741253
	WPL LIT4171920
	WPL 799832
	350942 Whirlpool Spray Paint
	WPL 72112
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	Enamal, Toast (1 Qt. Uncut)
	WP72107 Whirlpool Touchup
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	Platinum (Uncut)
	Leveler (Thinner)
1	Clip, Grounding
2	Screw
3	Spacer, Interlock Bracket
4	Shield, Control
5	Electronic Control
6	Bracket, Membrane
7	Display Lens
8	Switch, Membrane
9	Screw
10	W11596033 Whirlpool Microwave Screw
11	Bracket, Door Switch
12	Spring, Interlock
13	Switch, Interlock
14	Insulator, Door Switch
15	Barrier, Electric Insulation
25	Clip, Grounding (Front Panel)
26	SCREW
30	Bracket, Support
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel (Incl. Item 40)
39	Control Panel
40	Pushnut, Membrane
