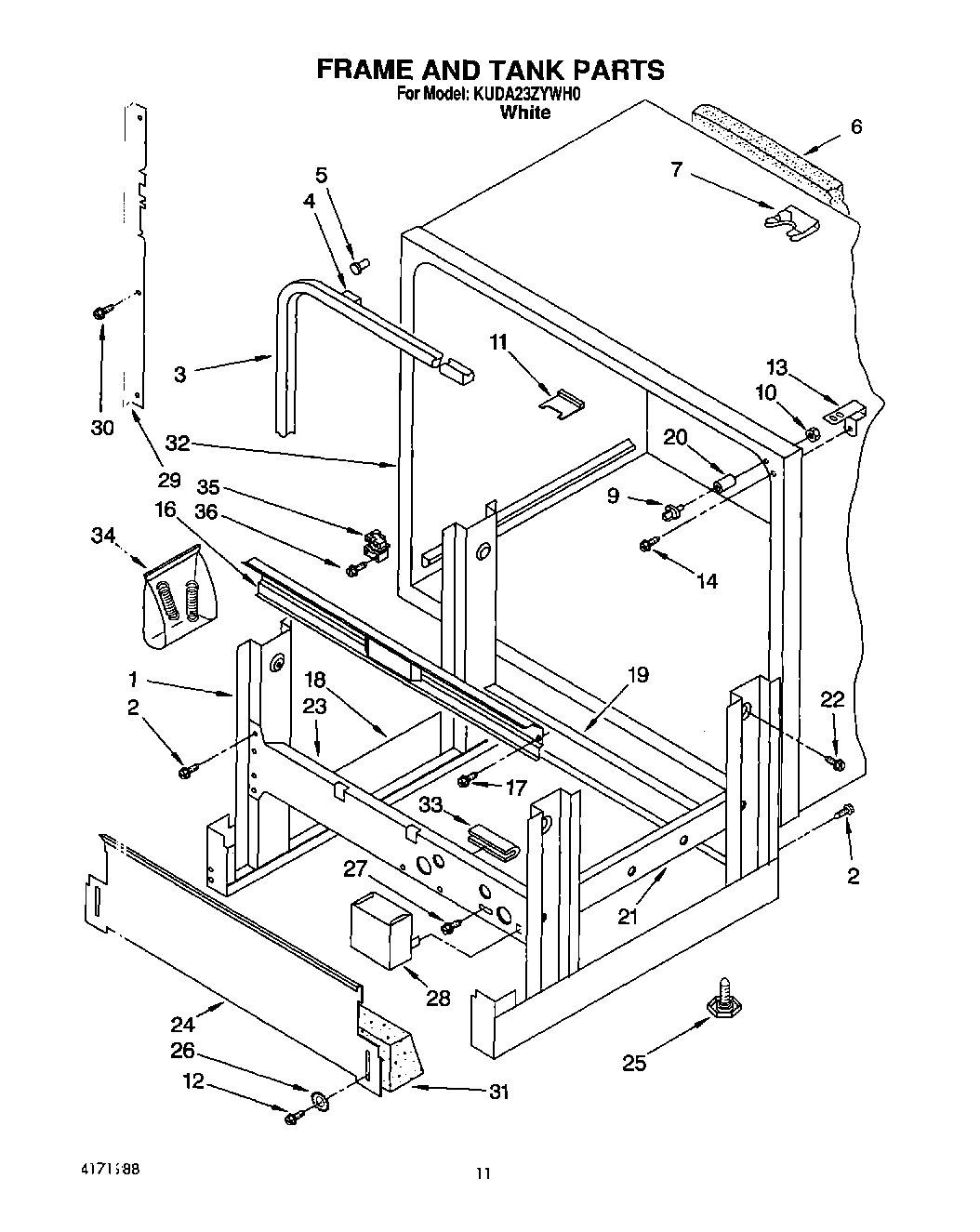

KUDA23ZYWH0 09 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21 & 23)
2	Screw, 10-16 x 1/2
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
6	Insulation, Tank (Back)
7	Clip, Retainer
9	Actuator, Interlock Switch
10	Lock Nut
11	Keeper, Latch
12	Screw, 10-16 x 3/8
13	WP9741251 Whirlpool Mounting Bracket
14	Screw, 7-19 x 1/2
16	Support, Lower Panel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Sleeve, Actuator
21	Frame Assembly (R.H.)
22	Screw, 1/4-20 x 1/2
23	Cross Frame, Front
24	Kick Board ((Black))
25	Foot, Leveling (4)
26	Lock Washer No.10 Ext. Shake- proof
27	Screw
28	Enclosure, Elec. Supply
28	SCREW
29	Trim, Tank (R.H.)
29	Trim, Tank (L.H.)
30	Screw, 10-24 X 1/2
31	Shield, Insulation
32	Tank (Serviced Complete with Frame)
33	Protector, Edge
34	9741248 Whirlpool Dishwasher Spring Kit
35	Relay, Start
36	Screw, 8-18 x 1-1/4
