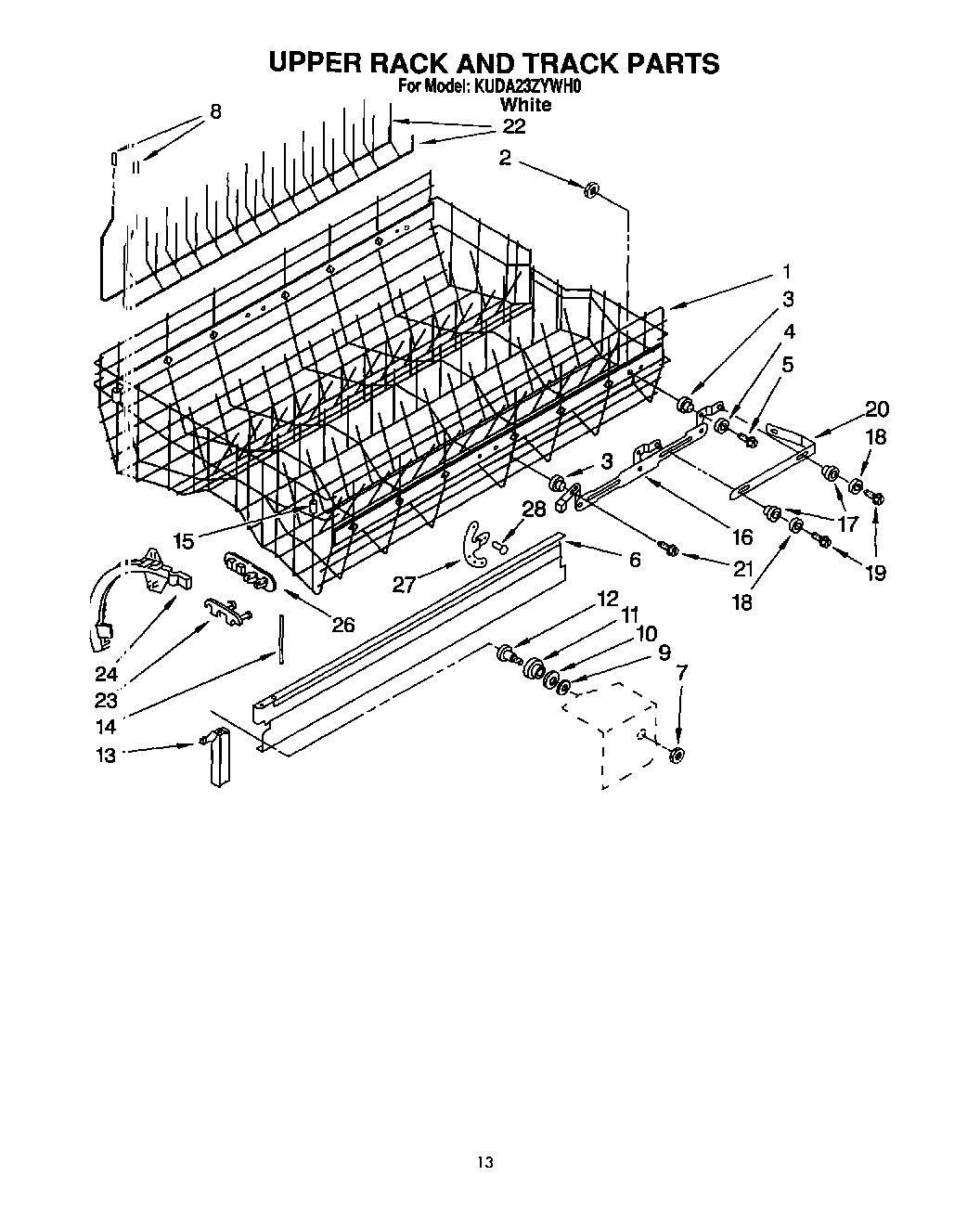

KUDA23ZYWH0 10 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
1	xComplete Upper Rack Assembly (Includes Upper Sprayarm Parts)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Washer
6	Track, Rack
7	Nut, Lock
8	Tip
9	Washer
10	Washer, Cup
11	Roller, Rack Track
12	Screw. Track Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Rack Track
16	Track, Adjustable (L.H.)
16	Track, Adjustable (R.H.)
17	Roller, Upper Rack Track
18	Washer
19	Screw, 8-32 X 1/4
20	Lift, Receiver (R.H.)
20	Lift, Receiver (L.H.)
21	Screw, 10-16 X 5/8
22	Partition
23	Clip, Partition (3)
24	Quadrant, Divider (R.H.)
24	Quadrant, Divider
26	Clip, Wash Arm Guard
27	Rackstop (L.H.)
27	Rackstop (R.H.)
28	Rivet
