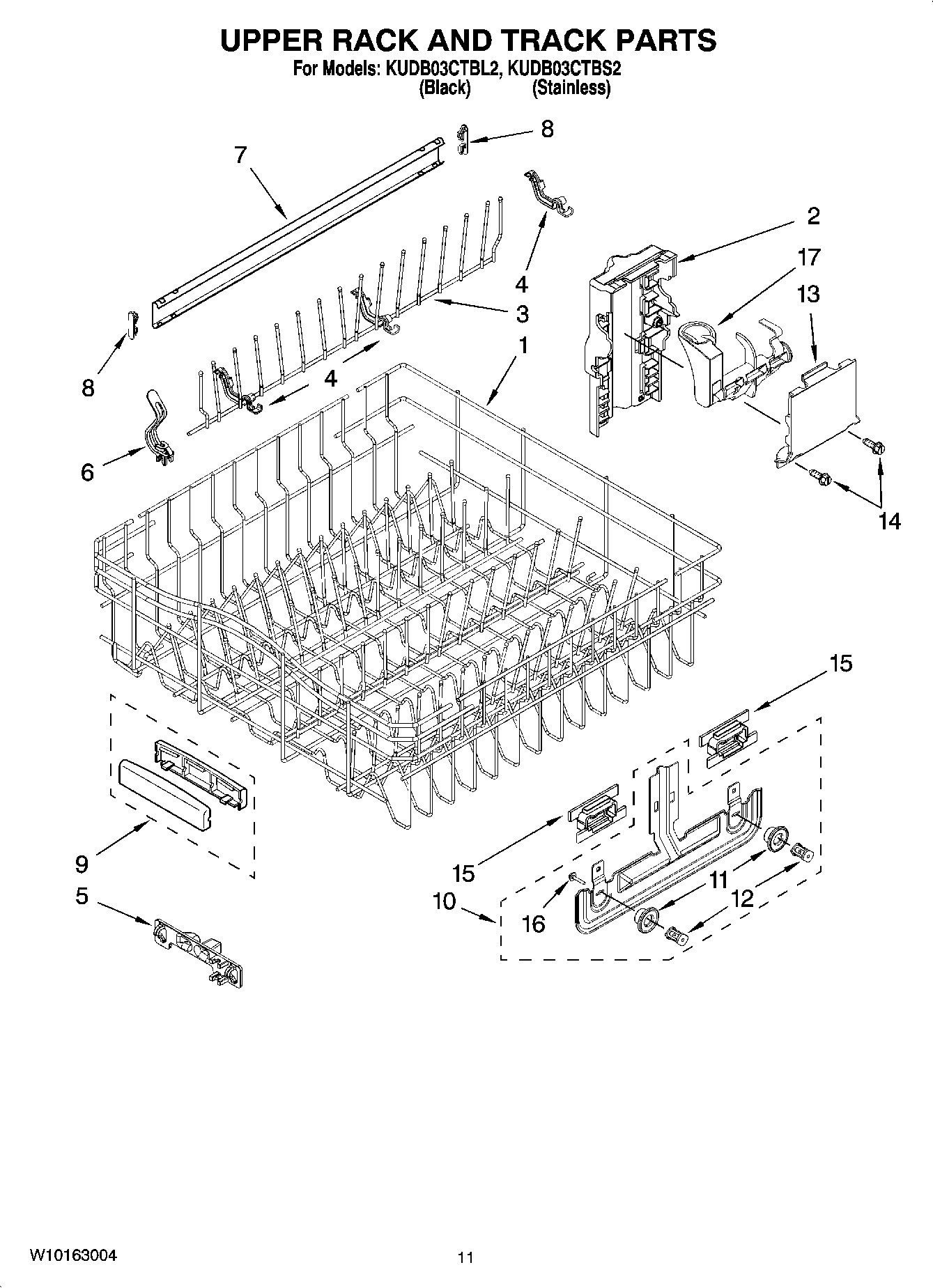

KUDB03CTBL2 09 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W10727422 Whirlpool Dishwasher Dishrack
2	W10728563 Whirlpool Dishwasher Housing
3	W10727426 Whirlpool Dishwasher Rack Tine
4	WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
5	WP8539102 Whirlpool Dishwasher Positioner
6	WPW10077844 Whirlpool Dishwasher Clip
7	WP3385089 Whirlpool Track
8	WP8565925 Whirlpool Slide Rail Stop
9	Handle, Dishrack
10	W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
11	WP3385088 Whirlpool Dishwasher Upper Wheel
12	WP8268703 Whirlpool Dishwasher Rack Axle
13	W10728561 Whirlpool Dishwasher Cover
14	WP9741232 Whirlpool Dishwasher Screw
15	W10728566 Whirlpool Dishwasher Positioner
16	WP8281156 Whirlpool Dishwasher Screw
17	Actuator, Adjuster (Left Hand)
17	Actuator, Adjuster (Right Hand)
