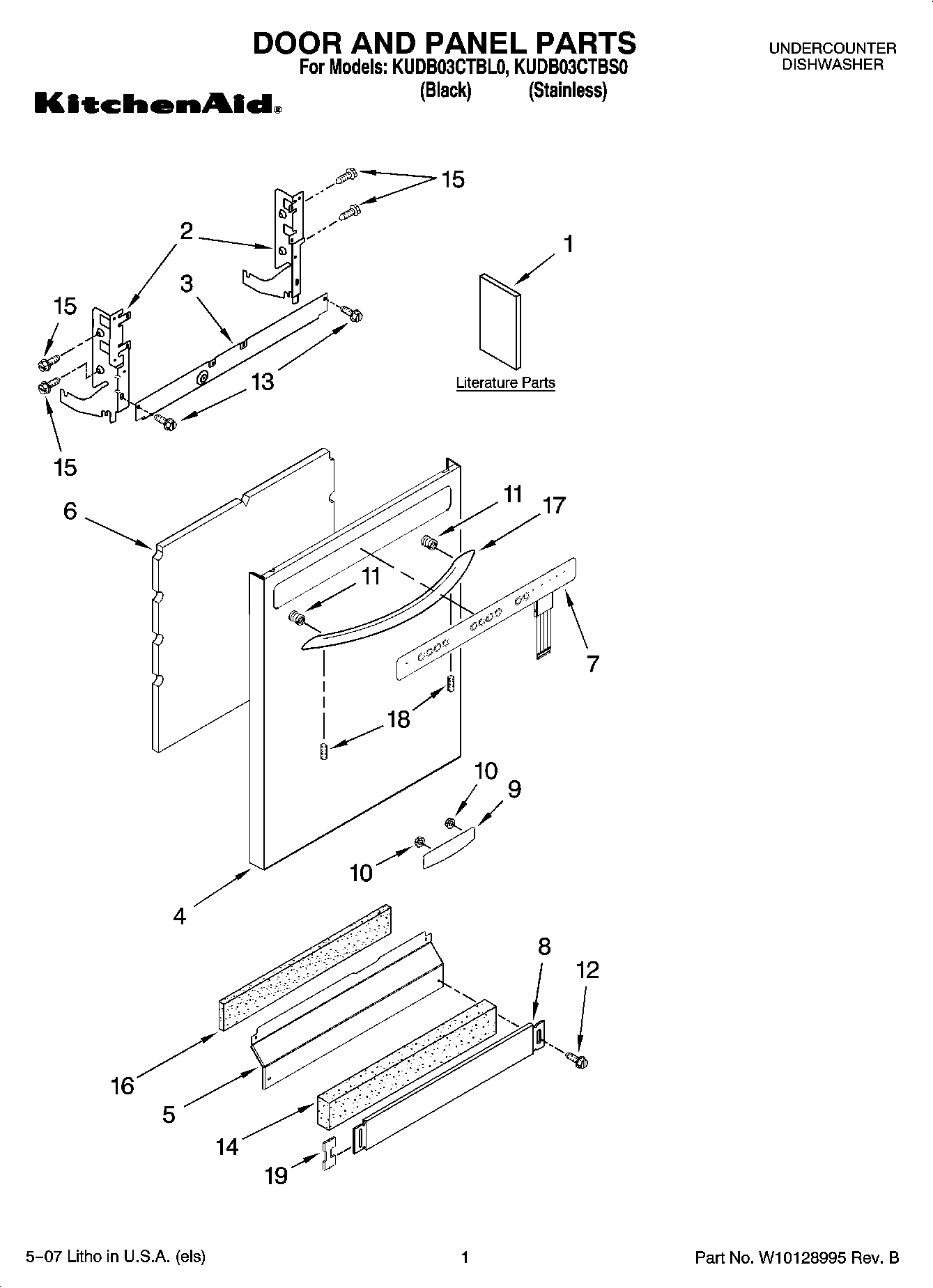

KUDB03CTBS0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Instructions, Installation
1Tech Sheet
1Energy Guide
1Guide, Consumer Reference
1Guide, Use & Care
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Includes Items 6, 9, 10 & 11) (Stainless)
4Panel Front (Includes Items 6, 9, 10 & 11) (Black)
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7Bezel, Console (Black)
8W10909064 Whirlpool Dishwasher Black Access Panel
9W10021860 Whirlpool Dishwasher Nameplate
9W10021850 Whirlpool Dishwasher Nameplate
10WP2004333 Whirlpool Refrigerator Nut
11WP8564951 Whirlpool Dishwasher Stud
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
15WP3400071 Whirlpool Screw
16SHIELD
17Handle Assy (Includes Items 7) (Black)
17W10195738A Whirlpool Stainless Steel Door Handle
18WP8534008 Whirlpool Screw
19WP8269016 Whirlpool Clip Assembly
