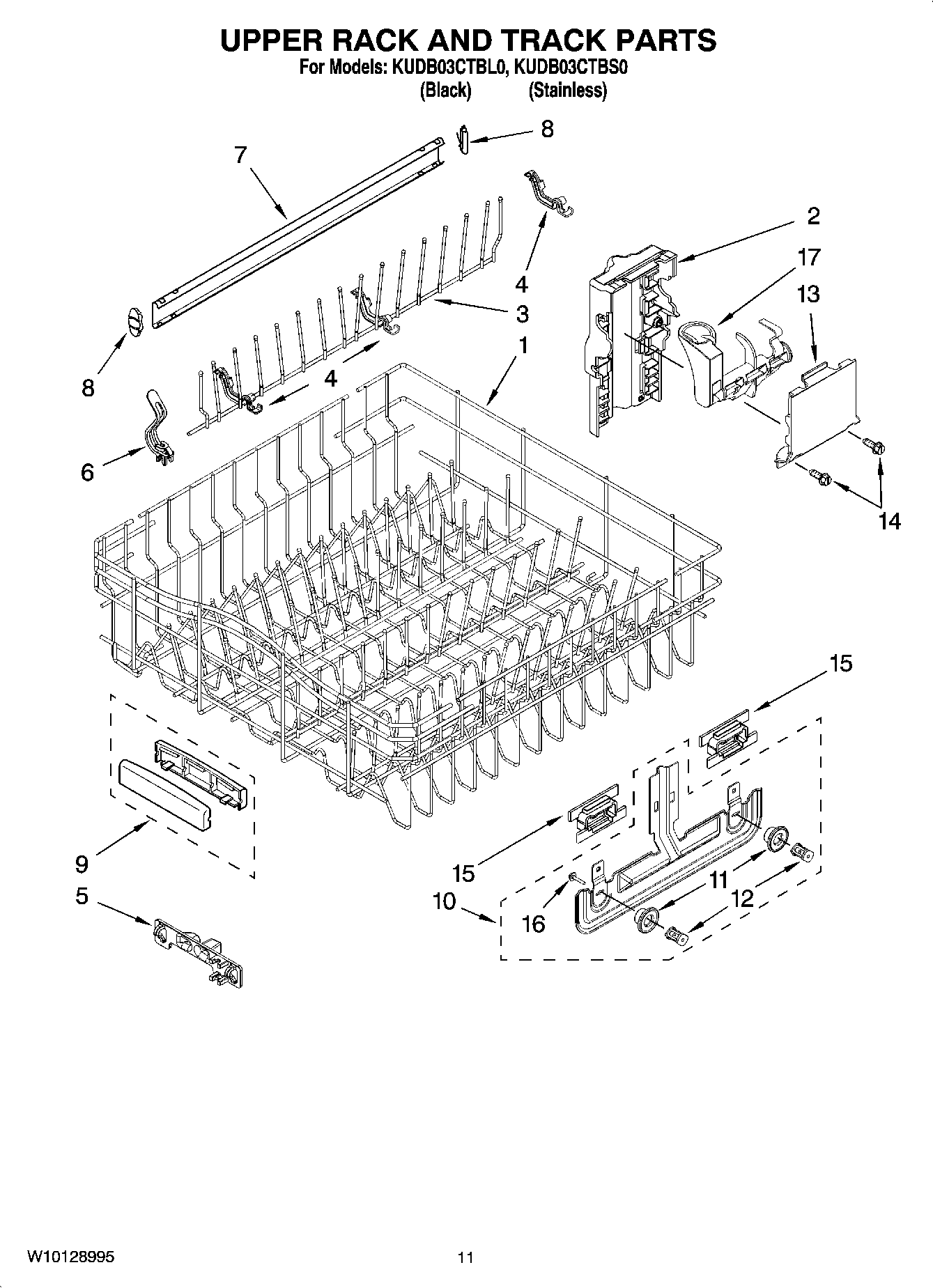

KUDB03CTBS0 09 – UPPER RACK AND TRACK PARTS

KUDB03CTBS0 09 – UPPER RACK AND TRACK PARTS

Written by

in

KUDB03CTBS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
28193741 Whirlpool Dishwasher Adjuster P1
3W10727426 Whirlpool Dishwasher Rack Tine
4PIVOT-TINE
5WP8539102 Whirlpool Dishwasher Positioner
6WPW10077844 Whirlpool Dishwasher Clip
7WP3385089 Whirlpool Track
8WP8565925 Whirlpool Slide Rail Stop
9Handle, Dishrack
10W10728849 Whirlpool Dishwasher Rack Roller and Adjuster
11WP3385088 Whirlpool Dishwasher Upper Wheel
12WP8268703 Whirlpool Dishwasher Rack Axle
14WP9741232 Whirlpool Dishwasher Screw
15WP8268738 Whirlpool Dishwasher Positioner
16WP8281156 Whirlpool Dishwasher Screw
17Actuator, Adjuster (Left Hand)
17Actuator, Adjuster (Right Hand)
