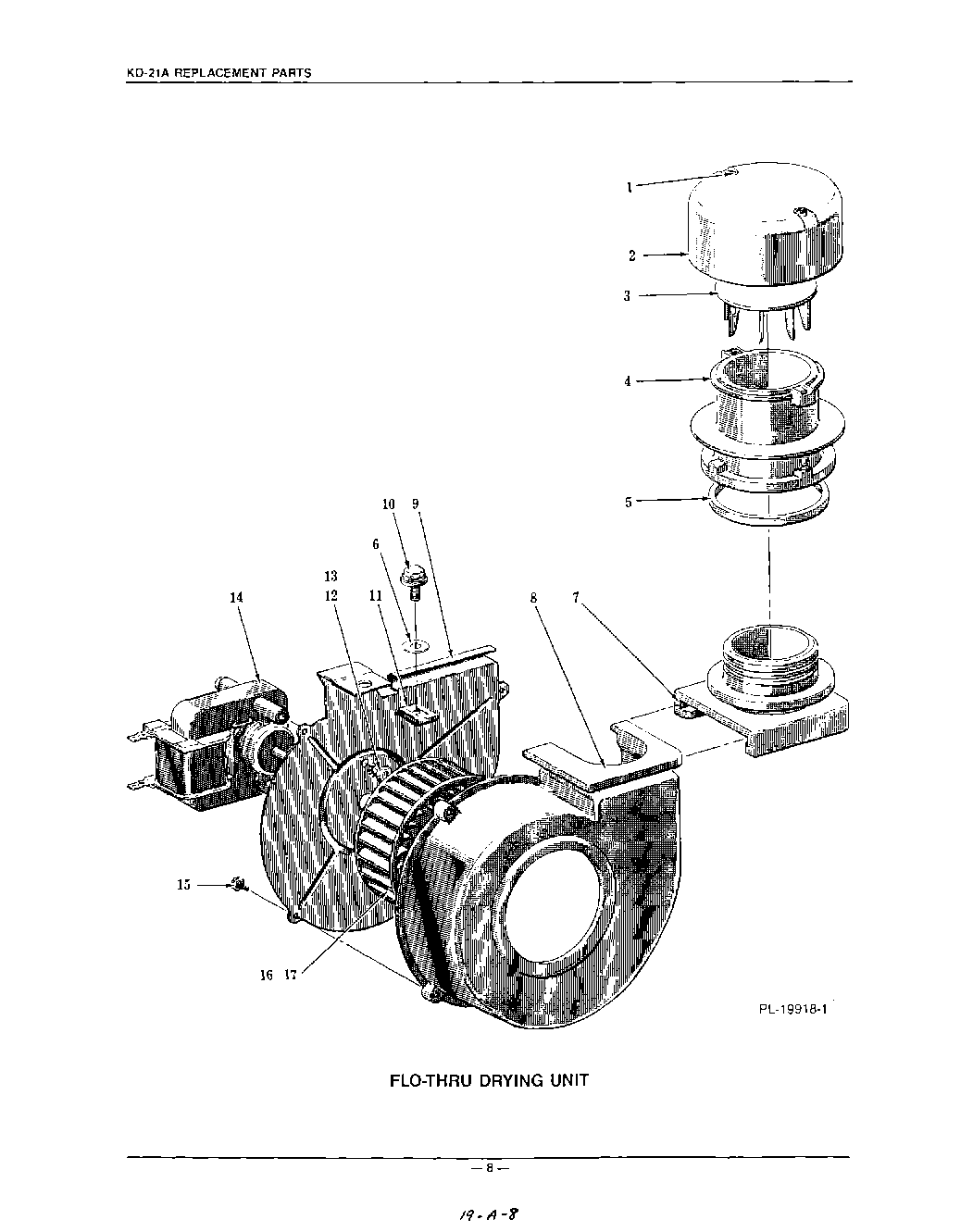

KUDB210S0 05 – FLO-THRU DRYING

Products

Position	Product
1	Self-Tapping Screw 6-32 x 7/8 Phil. Rd. Hd., Type B
2	Cap - Air Inlet
3	Damper - Air Inlet
4	Tube - Air Inlet
5	Seal - Air Inlet
6	Spacer - Blower Mounting
7	Support - Blower
8	Housing - Blower
9	Plate - Blower Motor Mounting
10	Screw - Blower Retainer
11	Speednut - Type ``U``
12	Mach. Nut 6-32 Hex
13	Lock Washer 6 Ext. Shakeproof
14	Motor - Blower (115 V., 60 Hz.) (Incls. Screws)
15	Self-Tapping Screw 6 x 1/2 Phil. Pan Hd., Type B
16	Blower Wheel Assy. (Incls. item 17)
17	Blower Assy. Unit (Incls. items 8, 9, 11, 12, 13, 14, 15 & 16)
17	Retaining Ring
